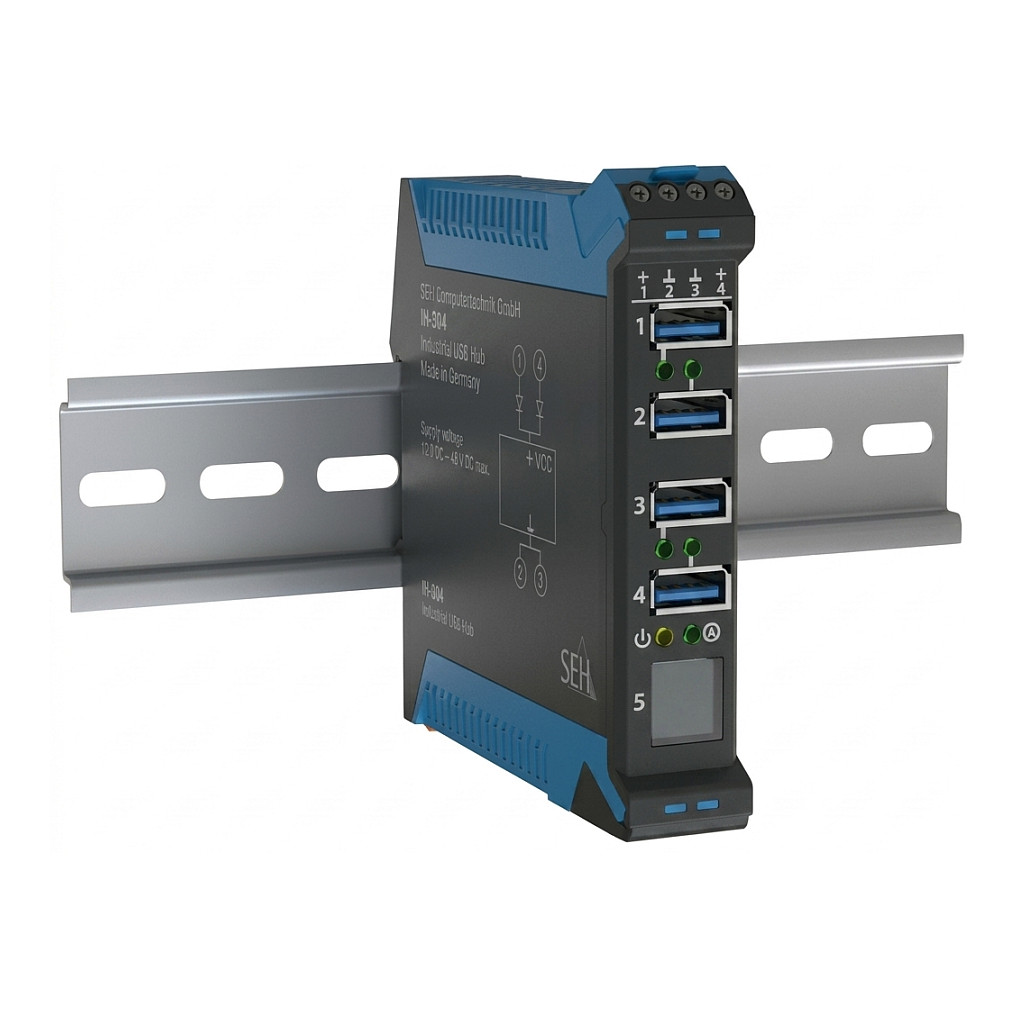

The SEH IH-304 is an industrial USB 3.0 hub with 4 x USB 3.0 SuperSpeed downstream ports and 1 x USB 3.0 upstream port. Designed for DIN-rail (Hutschiene) mounting (35 mm, DIN EN 60715) in control cabinets and racks. It supports a selectable 12–48 V DC power supply, redundant power input...
More
SEH IH-304 USB 3.0 Hub Hutschiene
Product Code: 1173700985
Available in 4 - 6 days
248,16 €
or
7,75€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 745 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The SEH IH-304 is an industrial USB 3.0 hub with 4 x USB 3.0 SuperSpeed downstream ports and 1 x USB 3.0 upstream port. Designed for DIN-rail (Hutschiene) mounting (35 mm, DIN EN 60715) in control cabinets and racks. It supports a selectable 12–48 V DC power supply, redundant power input capability, overvoltage protection, and per-port charging up to 1.5 A. Max. power consumption 45 W. Device is plug & play with standard/native hub support across common operating systems. Dimensions: 22.5 × 111 × 114 mm. Weight: 140 g. Operating temperature: 5–40 °C. Relative humidity: 20–80%. MPN: M07250, EAN: 4037863072505, SKU: 21169651.
-
BrandSEH
-
ModelIH-304
-
MPNM07250
-
EAN4037863072505
-
SKU21169651
-
Product TypeUSB 3.0 hub (industrial/DIN-rail)
-
Downstream Ports4 × USB 3.0 SuperSpeed
-
Upstream Port1 × USB 3.0
-
Per-port ChargingUp to 1.5 A per port
-
Power Supply InputSelectable 12 V to 48 V DC
-
Redundant Power SupportYes (parallel connection of two supplies supported)
-
Overvoltage ProtectionYes
-
Max Power Consumption45 W
-
Current Input at 12 V~50 mA idle; ~3.5 A at full USB load
-
Current Input at 48 V~20 mA idle; ~0.9 A at full USB load
-
MountingDIN-rail (Hutschiene) for 35 mm rails, DIN EN 60715
-
Dimensions (W×H×D)22.5 × 111 × 114 mm
-
Weight140 g
-
Operating Temperature5–40 °C
-
Relative Humidity20–80 %
-
OS SupportNative/standard hub support; plug & play
-
Intended UseIndustrial environments: control cabinets, racks, automation, sensors, cameras
-
Warranty3 years bring-in (listed by some distributors)
-
HousingDIN-rail industrial housing
Ratings
Description
The SEH IH-304 is an industrial USB 3.0 hub with 4 x USB 3.0 SuperSpeed downstream ports and 1 x USB 3.0 upstream port. Designed for DIN-rail (Hutschiene) mounting (35 mm, DIN EN 60715) in control cabinets and racks. It supports a selectable 12–48 V DC power supply, redundant power input capability, overvoltage protection, and per-port charging up to 1.5 A. Max. power consumption 45 W. Device is plug & play with standard/native hub support across common operating systems. Dimensions: 22.5 × 111 × 114 mm. Weight: 140 g. Operating temperature: 5–40 °C. Relative humidity: 20–80%. MPN: M07250, EAN: 4037863072505, SKU: 21169651.
Technical Specifications
-
BrandSEH
-
ModelIH-304
-
MPNM07250
-
EAN4037863072505
-
SKU21169651
-
Product TypeUSB 3.0 hub (industrial/DIN-rail)
-
Downstream Ports4 × USB 3.0 SuperSpeed
-
Upstream Port1 × USB 3.0
-
Per-port ChargingUp to 1.5 A per port
-
Power Supply InputSelectable 12 V to 48 V DC
-
Redundant Power SupportYes (parallel connection of two supplies supported)
-
Overvoltage ProtectionYes
-
Max Power Consumption45 W
-
Current Input at 12 V~50 mA idle; ~3.5 A at full USB load
-
Current Input at 48 V~20 mA idle; ~0.9 A at full USB load
-
MountingDIN-rail (Hutschiene) for 35 mm rails, DIN EN 60715
-
Dimensions (W×H×D)22.5 × 111 × 114 mm
-
Weight140 g
-
Operating Temperature5–40 °C
-
Relative Humidity20–80 %
-
OS SupportNative/standard hub support; plug & play
-
Intended UseIndustrial environments: control cabinets, racks, automation, sensors, cameras
-
Warranty3 years bring-in (listed by some distributors)
-
HousingDIN-rail industrial housing
