The Satel SLIM-DUAL is a wired dual-technology motion detector combining passive infrared (PIR) and microwave (MW) sensors for reliable intrusion detection. Intended for ceiling or wall mounting (includes slim bracket options). Certified to EN 50131 (Grade 2) and EN 50131-2-4. Features adjustable...
More

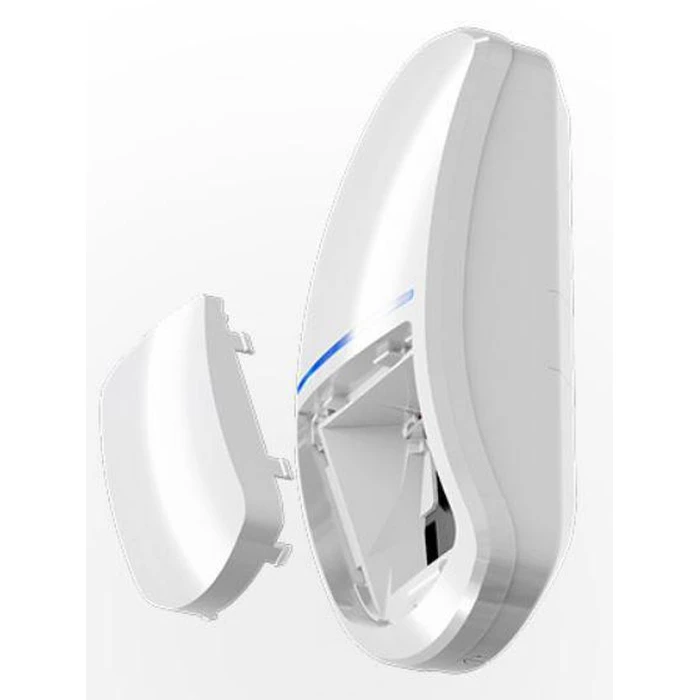

Satel SLIM-DUAL Wired Dual-Technology Motion Detector (PIR + Microwave) Curtain / Ceiling-Wall, White, 90° / 15 m
Product Code: 1127729969
Upon Order
57,73 €
or
1,80€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 174 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Satel SLIM-DUAL is a wired dual-technology motion detector combining passive infrared (PIR) and microwave (MW) sensors for reliable intrusion detection. Intended for ceiling or wall mounting (includes slim bracket options). Certified to EN 50131 (Grade 2) and EN 50131-2-4. Features adjustable sensitivity, LED status indication (4-color LED), anti-tamper switch, alarm outputs (NC), supervised end-of-line (2EOL: 2 x 1.1 kΩ), and microwave frequency 24.125 GHz. Typical detection coverage: 15 x 20 m (curtain pattern) at 2.4 m mounting height with 90° coverage. Operating voltage 12 V DC, operating current ~25 mA. Operating temperature -10°C to +55°C. Dimensions 62 x 137 x 42 mm. Weight 101 g. Colour: White. Model: SLIM-DUAL.
-
BrandSatel
-
ModelSLIM-DUAL
-
Product TypeWired dual-technology motion detector (PIR + Microwave)
-
Detection TechnologyPassive Infrared (PIR) and Microwave (MW)
-

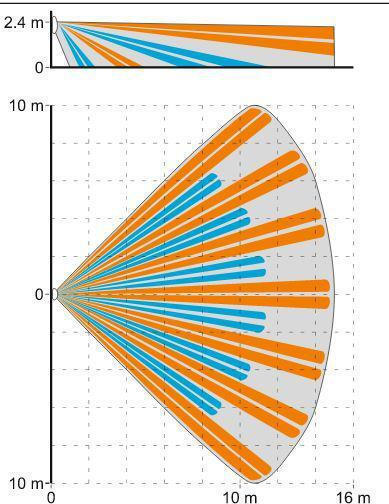

Detection Range15 m (PIR nominal) / Coverage pattern 15 x 20 m curtain pattern
-
Coverage Angle90°
-
Recommended Mounting Height2.4 m (typical)
-
Microwave Frequency24.125 GHz
-
Power Supply12 V DC (±15%)
-
Operating Current25 mA (typical)
-
Alarm Output (NC)100 mA / 30 V DC
-
Tamper / Supervisory Output (NC open collector)40 mA / 24 V DC
-
Supervision / EOL2EOL: 2 x 1.1 kΩ
-
LED Indicators4-color status LED (operation and alarm indication)
-
Anti-maskingNo
-
Tamper ProtectionYes (tamper switch)
-
Pet ImmunityNo
-
Operating Temperature-10°C to +55°C
-
Relative Humidity93% (±3%)
-
Response Time (alarm)~2 seconds
-
Pulse Count/Detection Sensitivity4 m (pulse-related sensitivity spec), walk test 0.3...3 m/s
-
Dimensions62 x 137 x 42 mm
-
Product Weight101 g
-
ColourWhite
-
Certifications/StandardsEN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5 (Grade 2)
-

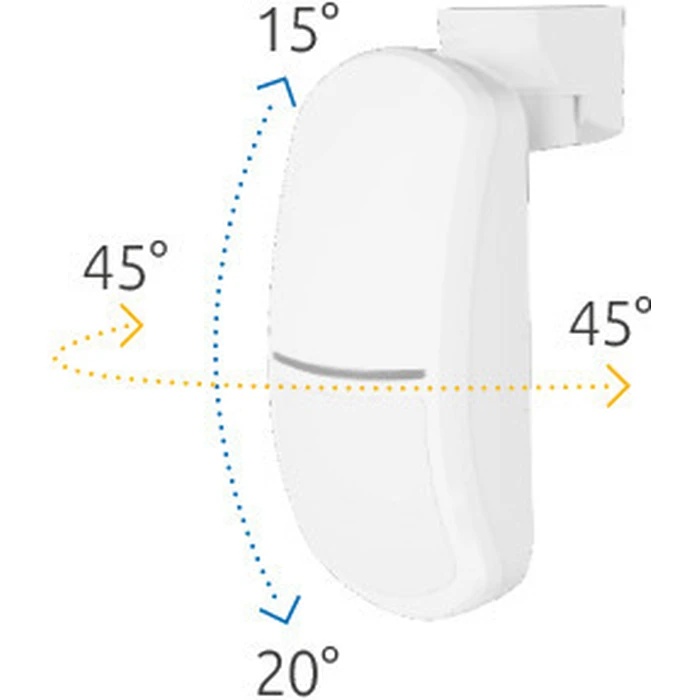

Mounting OptionsCeiling or wall (BRACKET D or compatible slim brackets CT-CL2 / LR-CL2)
-
Package IncludesDetector, mounting accessories / brackets (depending on variant)
-
Special FeaturesDual PIR+MW detection to reduce false alarms, LED alarm indication, supervised inputs, tamper detection
Ratings
Description
The Satel SLIM-DUAL is a wired dual-technology motion detector combining passive infrared (PIR) and microwave (MW) sensors for reliable intrusion detection. Intended for ceiling or wall mounting (includes slim bracket options). Certified to EN 50131 (Grade 2) and EN 50131-2-4. Features adjustable sensitivity, LED status indication (4-color LED), anti-tamper switch, alarm outputs (NC), supervised end-of-line (2EOL: 2 x 1.1 kΩ), and microwave frequency 24.125 GHz. Typical detection coverage: 15 x 20 m (curtain pattern) at 2.4 m mounting height with 90° coverage. Operating voltage 12 V DC, operating current ~25 mA. Operating temperature -10°C to +55°C. Dimensions 62 x 137 x 42 mm. Weight 101 g. Colour: White. Model: SLIM-DUAL.
Technical Specifications
-
BrandSatel
-
ModelSLIM-DUAL
-
Product TypeWired dual-technology motion detector (PIR + Microwave)
-
Detection TechnologyPassive Infrared (PIR) and Microwave (MW)
-
Detection Range15 m (PIR nominal) / Coverage pattern 15 x 20 m curtain pattern
-
Coverage Angle90°
-
Recommended Mounting Height2.4 m (typical)
-
Microwave Frequency24.125 GHz
-
Power Supply12 V DC (±15%)
-
Operating Current25 mA (typical)
-
Alarm Output (NC)100 mA / 30 V DC
-
Tamper / Supervisory Output (NC open collector)40 mA / 24 V DC
-
Supervision / EOL2EOL: 2 x 1.1 kΩ
-
LED Indicators4-color status LED (operation and alarm indication)
-
Anti-maskingNo
-
Tamper ProtectionYes (tamper switch)
-
Pet ImmunityNo
-
Operating Temperature-10°C to +55°C
-
Relative Humidity93% (±3%)
-
Response Time (alarm)~2 seconds
-
Pulse Count/Detection Sensitivity4 m (pulse-related sensitivity spec), walk test 0.3...3 m/s
-
Dimensions62 x 137 x 42 mm
-
Product Weight101 g
-
ColourWhite
-
Certifications/StandardsEN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5 (Grade 2)
-
Mounting OptionsCeiling or wall (BRACKET D or compatible slim brackets CT-CL2 / LR-CL2)
-
Package IncludesDetector, mounting accessories / brackets (depending on variant)
-
Special FeaturesDual PIR+MW detection to reduce false alarms, LED alarm indication, supervised inputs, tamper detection
