The SATEL BE WAVE WIRE 128 is a fully wired alarm control panel from the BE WAVE smart&safe ecosystem. It supports up to 128 programmable zones and 128 outputs. The main board provides 4 built-in wired inputs and 4 high-current outputs. Communication is via SATEL BUS (RS‑485) supporting up to 32...
More

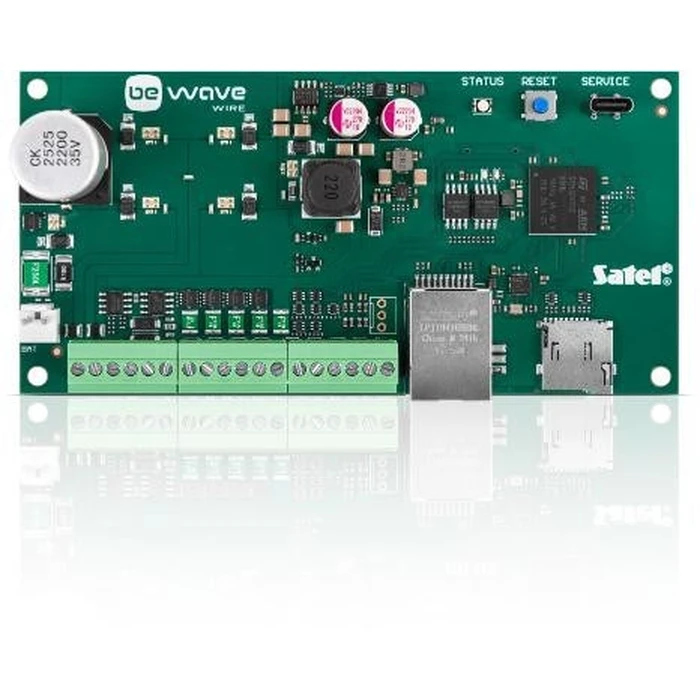

SATEL BE WAVE WIRE 128 Alarm Control Panel (Wired, 128 zones)
Product Code: 1127720866
Upon Order
239,28 €
or
7,47€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 718 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The SATEL BE WAVE WIRE 128 is a fully wired alarm control panel from the BE WAVE smart&safe ecosystem. It supports up to 128 programmable zones and 128 outputs. The main board provides 4 built-in wired inputs and 4 high-current outputs. Communication is via SATEL BUS (RS‑485) supporting up to 32 bus devices and it includes one Ethernet (RJ45) port for LAN connectivity and remote operation via the BE WAVE mobile app. There is no built-in wireless — wireless sensors require a separate Smart HUB (ABAX2). Designed for intrusion protection and building automation (Grade 2).
-
BrandSATEL
-
ModelBE WAVE WIRE 128
-
Product TypeWired alarm control panel (central unit)
-
Max Zones128 programmable zones
-
Max Outputs128 programmable outputs
-
Built-in Inputs4 wired inputs on main board
-
Built-in Outputs4 high-current outputs on main board
-
Bus CommunicationSATEL BUS (RS-485)
-
Max Devices on BusUp to 32 devices on SATEL BUS
-
Ethernet1 × RJ45 (LAN) for network and remote access
-
Wireless SupportNone built-in (requires external Smart HUB for ABAX2 wireless)
-
Mobile IntegrationOperable via BE WAVE mobile app when networked
-
Security GradeGrade 2
-
Building AutomationSupports outputs and scenarios for automation (lighting, shutters, HVAC)
-
Sensor CompatibilityWired detectors and magistral SLIM BUS sensors (via bus)
-
FirmwareUpgradeable (flash firmware upgrades via PC/installer tools)
-
Intended UseResidential and commercial intrusion protection and building automation
-
Package Contents (typical)Control panel main board, metal/plastic enclosure, mounting accessories, documentation (exact contents depend on kit/retailer)
Ratings
Description
The SATEL BE WAVE WIRE 128 is a fully wired alarm control panel from the BE WAVE smart&safe ecosystem. It supports up to 128 programmable zones and 128 outputs. The main board provides 4 built-in wired inputs and 4 high-current outputs. Communication is via SATEL BUS (RS‑485) supporting up to 32 bus devices and it includes one Ethernet (RJ45) port for LAN connectivity and remote operation via the BE WAVE mobile app. There is no built-in wireless — wireless sensors require a separate Smart HUB (ABAX2). Designed for intrusion protection and building automation (Grade 2).
Technical Specifications
-
BrandSATEL
-
ModelBE WAVE WIRE 128
-
Product TypeWired alarm control panel (central unit)
-
Max Zones128 programmable zones
-
Max Outputs128 programmable outputs
-
Built-in Inputs4 wired inputs on main board
-
Built-in Outputs4 high-current outputs on main board
-
Bus CommunicationSATEL BUS (RS-485)
-
Max Devices on BusUp to 32 devices on SATEL BUS
-
Ethernet1 × RJ45 (LAN) for network and remote access
-
Wireless SupportNone built-in (requires external Smart HUB for ABAX2 wireless)
-
Mobile IntegrationOperable via BE WAVE mobile app when networked
-
Security GradeGrade 2
-
Building AutomationSupports outputs and scenarios for automation (lighting, shutters, HVAC)
-
Sensor CompatibilityWired detectors and magistral SLIM BUS sensors (via bus)
-
FirmwareUpgradeable (flash firmware upgrades via PC/installer tools)
-
Intended UseResidential and commercial intrusion protection and building automation
-
Package Contents (typical)Control panel main board, metal/plastic enclosure, mounting accessories, documentation (exact contents depend on kit/retailer)
