The SATEL BE WAVE HYBRID 128 Plus is a high-capacity hybrid alarm/control panel that integrates intrusion protection with building automation. It supports wired, wireless (ABAX 2, 868 MHz, AES two-way) and BUS (RS‑485 / SATEL BUS) devices in one system. Built-in communications include Ethernet...
More

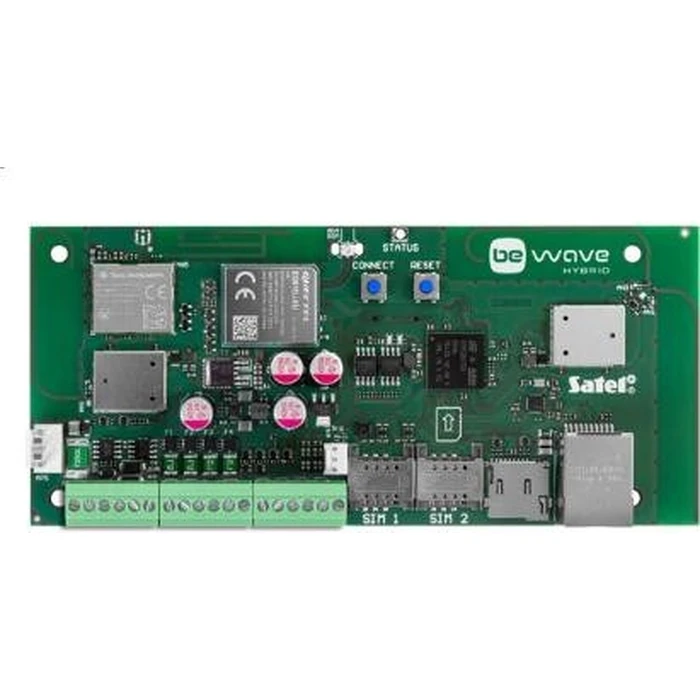

SATEL BE WAVE HYBRID 128 Plus Control Panel
Product Code: 1127719169
Upon Order
469,04 €
or
14,65€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1408 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The SATEL BE WAVE HYBRID 128 Plus is a high-capacity hybrid alarm/control panel that integrates intrusion protection with building automation. It supports wired, wireless (ABAX 2, 868 MHz, AES two-way) and BUS (RS‑485 / SATEL BUS) devices in one system. Built-in communications include Ethernet (LAN), Wi‑Fi and Cellular (2G/4G) for remote access and reporting. The panel supports up to 128 devices (max 32 BUS devices), up to 50 areas, up to 50 users, up to 10 zones and up to 100 automation scenes. On-board hardware includes 4 wired inputs and 4 wired outputs (including 4 high‑current outputs). The HYBRID 128 Plus is Grade 2 (EN 50131) and is controlled via BE WAVE Mobile App or configured with BE WAVE Soft. Requires an internal PSU (e.g., APS 412) and backup battery; enclosure tamper input provided.
-
BrandSATEL
-
ModelBE WAVE HYBRID 128 Plus
-
SKUWLONONWCRTCOD
-
EAN5905033339590
-
MPN5905033339590
-
System capacityUp to 128 devices (wired, wireless, hybrid)
-
BUS devicesUp to 32 SATEL BUS (RS-485) devices
-
On-board wired inputs4 (expandable via modules)
-
On-board wired outputs4 (includes 4 high-current outputs)
-
Wireless technologyABAX 2 (868 MHz), AES encrypted two-way radio
-
Communication modulesIntegrated Ethernet (LAN), Wi‑Fi and Cellular (2G/4G)
-
Areas / RoomsUp to 50
-
Users supportedUp to 50
-
ZonesSupports up to 10 zones
-
Arm modesFull (away) + 9 configurable partial stay modes
-
Automation scenesUp to 100 scenes/routines
-
App controlBE WAVE Mobile App (iOS / Android)
-
Configuration softwareBE WAVE Soft
-
Security gradeEN 50131 Grade 2
-
Power supplyRequires external PSU installed in enclosure (e.g., APS 412); battery backup supported
-
Tamper protectionEnclosure tamper (TMP) input
-
Virtual IP devicesSupported (virtual IP devices integration)
-
Physical expansionEnclosure space for additional wired expansion modules
-
Typical applicationsIntrusion protection, building automation (lighting, heating, ventilation, blinds, gates)
-
Weight (product)~1200 g (approx.)
-
Package weight~2200 g (approx.)
-
Typical package dimensions~30 x 25 x 8 cm (L x W x H) - approximate
Ratings
Description
The SATEL BE WAVE HYBRID 128 Plus is a high-capacity hybrid alarm/control panel that integrates intrusion protection with building automation. It supports wired, wireless (ABAX 2, 868 MHz, AES two-way) and BUS (RS‑485 / SATEL BUS) devices in one system. Built-in communications include Ethernet (LAN), Wi‑Fi and Cellular (2G/4G) for remote access and reporting. The panel supports up to 128 devices (max 32 BUS devices), up to 50 areas, up to 50 users, up to 10 zones and up to 100 automation scenes. On-board hardware includes 4 wired inputs and 4 wired outputs (including 4 high‑current outputs). The HYBRID 128 Plus is Grade 2 (EN 50131) and is controlled via BE WAVE Mobile App or configured with BE WAVE Soft. Requires an internal PSU (e.g., APS 412) and backup battery; enclosure tamper input provided.
Technical Specifications
-
BrandSATEL
-
ModelBE WAVE HYBRID 128 Plus
-
SKUWLONONWCRTCOD
-
EAN5905033339590
-
MPN5905033339590
-
System capacityUp to 128 devices (wired, wireless, hybrid)
-
BUS devicesUp to 32 SATEL BUS (RS-485) devices
-
On-board wired inputs4 (expandable via modules)
-
On-board wired outputs4 (includes 4 high-current outputs)
-
Wireless technologyABAX 2 (868 MHz), AES encrypted two-way radio
-
Communication modulesIntegrated Ethernet (LAN), Wi‑Fi and Cellular (2G/4G)
-
Areas / RoomsUp to 50
-
Users supportedUp to 50
-
ZonesSupports up to 10 zones
-
Arm modesFull (away) + 9 configurable partial stay modes
-
Automation scenesUp to 100 scenes/routines
-
App controlBE WAVE Mobile App (iOS / Android)
-
Configuration softwareBE WAVE Soft
-
Security gradeEN 50131 Grade 2
-
Power supplyRequires external PSU installed in enclosure (e.g., APS 412); battery backup supported
-
Tamper protectionEnclosure tamper (TMP) input
-
Virtual IP devicesSupported (virtual IP devices integration)
-
Physical expansionEnclosure space for additional wired expansion modules
-
Typical applicationsIntrusion protection, building automation (lighting, heating, ventilation, blinds, gates)
-
Weight (product)~1200 g (approx.)
-
Package weight~2200 g (approx.)
-
Typical package dimensions~30 x 25 x 8 cm (L x W x H) - approximate
