The Planet GSD-805 is an 8-port unmanaged desktop Gigabit Ethernet switch designed for homes, SOHO, SMBs, and small office backbone applications. It features 8 RJ45 ports with 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, supporting Cat. 3/4/5/5e/6 UTP/STP cables up to 100 meters. The switch...
More

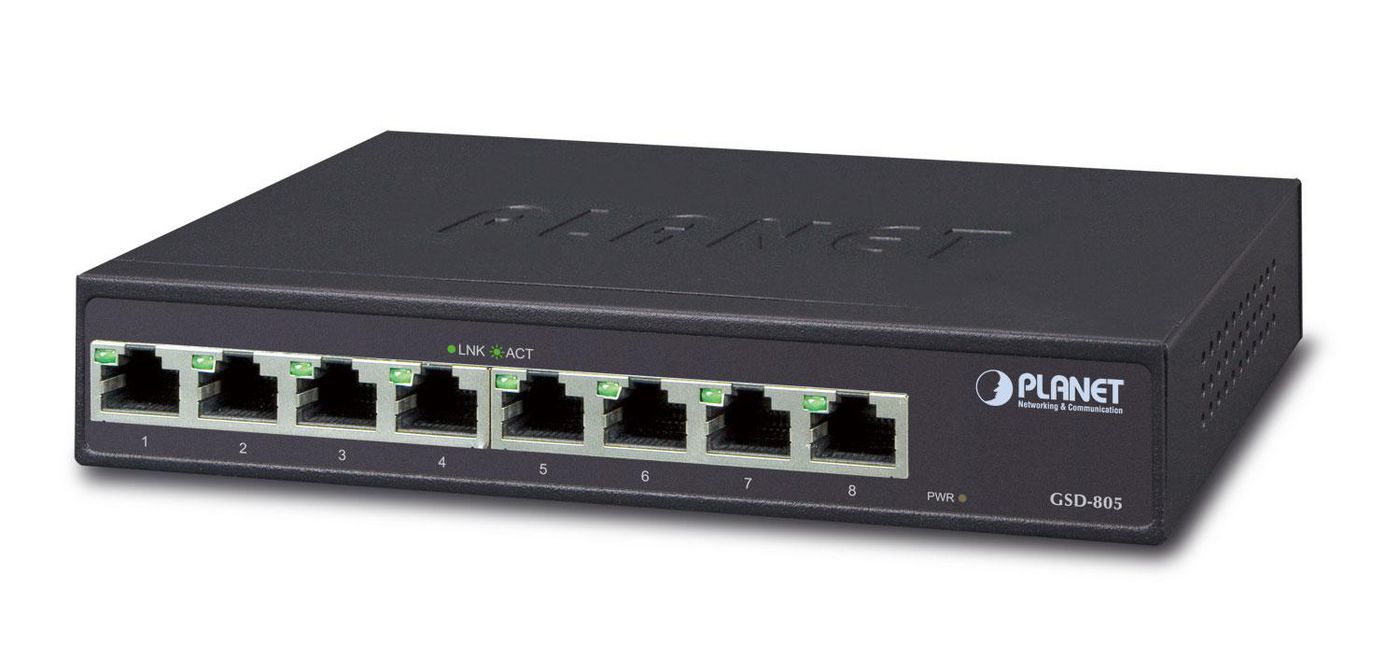

Router Planet 8 Port 1000Base T Desktop Gigabit Ethernet Switch GSD 805
Product Code: 1200657671
Available in 4 - 10 days
78,54 €
or
2,45€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Planet GSD-805 is an 8-port unmanaged desktop Gigabit Ethernet switch designed for homes, SOHO, SMBs, and small office backbone applications. It features 8 RJ45 ports with 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, supporting Cat. 3/4/5/5e/6 UTP/STP cables up to 100 meters. The switch provides a 16Gbps non-blocking switching capacity, 11.9Mpps forwarding performance, store-and-forward operation, IEEE 802.3x flow control, and back-pressure support. It supports up to 9K jumbo frames, has a 1Mbit on-chip frame buffer, automatic address learning and aging, and plug-and-play operation with no configuration required. Energy-saving technology reduces power consumption by up to 40%, and fanless operation ensures silent, reliable use. The compact metal housing, internal 100-240V AC power supply, and desktop form factor make it ideal for simple Gigabit network expansion.
-
BrandPlanet
-
ModelGSD-805
-
SKUGSD-805
-
MPNGSD-805
-
EAN4711213684869
-
Product Type8-Port Desktop Gigabit Ethernet Switch
-
Switch TypeUnmanaged
-
Form FactorDesktop
-
Ports8 x RJ45
-
Ethernet Standards10BASE-T, 100BASE-TX, 1000BASE-T
-
Port Speed10/100/1000Mbps per port
-
Auto MDI/MDI-XYes
-
Auto-NegotiationYes
-
Cabling SupportCat. 3/4/5/5e/6 UTP/STP
-
Maximum Cable Distance100 m
-
Switching Capacity16 Gbps
-
Forwarding Rate11.9 Mpps
-
Operating ModeStore-and-Forward
-
Flow ControlIEEE 802.3x full duplex, back-pressure half duplex
-
Jumbo Frame SupportUp to 9K
-
MAC Address Table8K entries
-
Frame Buffer1 Mbit
-
Address LearningAutomatic
-
Address AgingAutomatic
-
Energy SavingHibernation Link Down Power Saving, up to 40% power reduction
-
CoolingFanless
-
IndicatorsPower, Link/Act per port
-
Power SupplyInternal AC adapter, 100-240V AC, 50/60Hz, 0.2A
-
Power ConsumptionMax 8.6W
-
Housing MaterialMetal
-
Dimensions191 x 85.7 x 26.3 mm
-
Weight430 g
-
InstallationPlug and Play
-
ComplianceIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
-
Use CaseHome, SOHO, SMB, small office backbone
Ratings
Description
The Planet GSD-805 is an 8-port unmanaged desktop Gigabit Ethernet switch designed for homes, SOHO, SMBs, and small office backbone applications. It features 8 RJ45 ports with 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, supporting Cat. 3/4/5/5e/6 UTP/STP cables up to 100 meters. The switch provides a 16Gbps non-blocking switching capacity, 11.9Mpps forwarding performance, store-and-forward operation, IEEE 802.3x flow control, and back-pressure support. It supports up to 9K jumbo frames, has a 1Mbit on-chip frame buffer, automatic address learning and aging, and plug-and-play operation with no configuration required. Energy-saving technology reduces power consumption by up to 40%, and fanless operation ensures silent, reliable use. The compact metal housing, internal 100-240V AC power supply, and desktop form factor make it ideal for simple Gigabit network expansion.
Technical Specifications
-
BrandPlanet
-
ModelGSD-805
-
SKUGSD-805
-
MPNGSD-805
-
EAN4711213684869
-
Product Type8-Port Desktop Gigabit Ethernet Switch
-
Switch TypeUnmanaged
-
Form FactorDesktop
-
Ports8 x RJ45
-
Ethernet Standards10BASE-T, 100BASE-TX, 1000BASE-T
-
Port Speed10/100/1000Mbps per port
-
Auto MDI/MDI-XYes
-
Auto-NegotiationYes
-
Cabling SupportCat. 3/4/5/5e/6 UTP/STP
-
Maximum Cable Distance100 m
-
Switching Capacity16 Gbps
-
Forwarding Rate11.9 Mpps
-
Operating ModeStore-and-Forward
-
Flow ControlIEEE 802.3x full duplex, back-pressure half duplex
-
Jumbo Frame SupportUp to 9K
-
MAC Address Table8K entries
-
Frame Buffer1 Mbit
-
Address LearningAutomatic
-
Address AgingAutomatic
-
Energy SavingHibernation Link Down Power Saving, up to 40% power reduction
-
CoolingFanless
-
IndicatorsPower, Link/Act per port
-
Power SupplyInternal AC adapter, 100-240V AC, 50/60Hz, 0.2A
-
Power ConsumptionMax 8.6W
-
Housing MaterialMetal
-
Dimensions191 x 85.7 x 26.3 mm
-
Weight430 g
-
InstallationPlug and Play
-
ComplianceIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
-
Use CaseHome, SOHO, SMB, small office backbone
