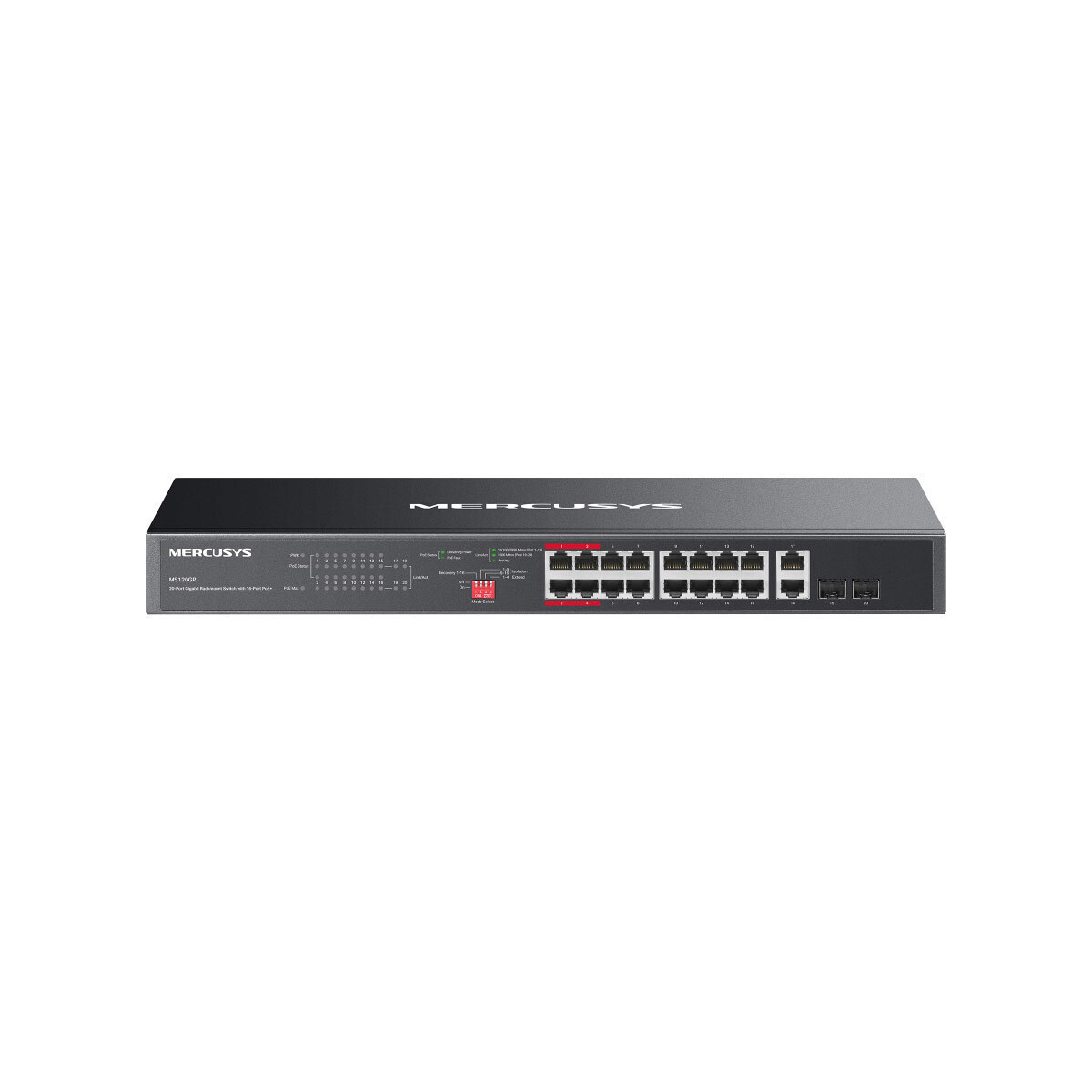

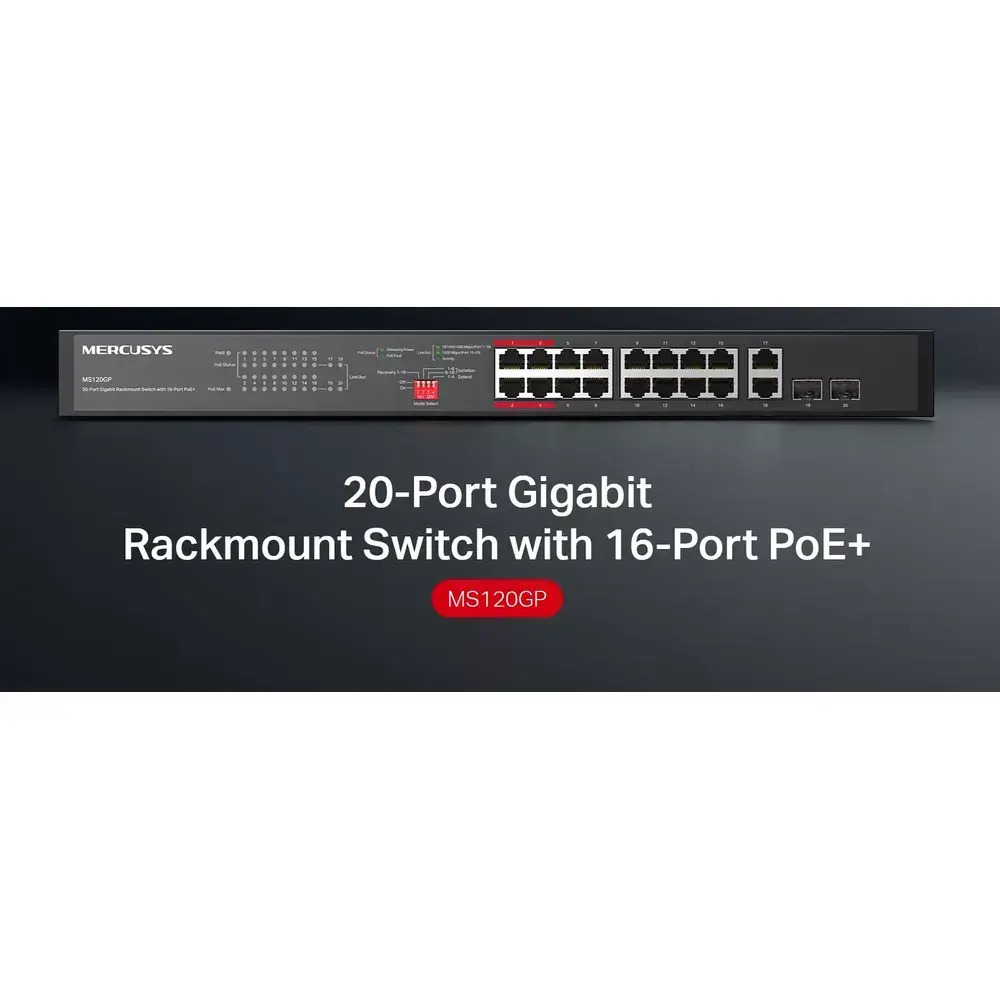

Router MERCUSYS MS120GP 20 Port Gigabit Rackmount Switch with 16 PoE Plus Ports

Description

Technical Specifications

• Brand
  MERCUSYS
• Model
  MS120GP
• MPN
  MERCUSYS MS120GP
• EAN
  6957939003777
• SKU
  253-0052
• Product Type
  20-Port Gigabit Rackmount Switch with 16 PoE+ Ports
• Ports
  16 x 10/100/1000 Mbps Gigabit PoE+ RJ45, 2 x 10/100/1000 Mbps Gigabit RJ45, 2 x combo Gigabit SFP
• PoE Standard
  IEEE 802.3af/at
• PoE Power Budget
  192W
• Maximum Power per Port
  30W
• Switching Capacity
  40Gbps
• MAC Address Table
  8K
• Forwarding Method
  Store-and-forward
• Uplink Ports
  2 Gigabit RJ45 uplink ports
• SFP Ports
  2 combo Gigabit SFP ports
• Extend Mode
  Yes, up to 250m
• Isolation Mode
  Yes, ports 1-8 and 9-16
• Priority Mode
  Yes, ports 1-4
• PoE Auto Recovery
  Yes, ports 1-16
• Auto Negotiation
  Yes
• MDI/MDIX
  Yes
• Flow Control
  IEEE 802.3x
• Supported Standards
  IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z, 802.3af, 802.3at
• Network Media
  10BASE-T Cat 3 or above up to 100m; 100BASE-TX Cat 5 or above up to 100m; 1000BASE-T Cat 5e or above up to 100m; 1000BASE-X MMF/SMF
• Power Input
  100-240 VAC, 50/60 Hz
• Power Output
  53.5V 0.56A
• Maximum Power Consumption
  13.48W without PD; 219.05W with 192W PD at 220V/50Hz and 25°C
• Maximum Heat Dissipation
  45.96 BTU/h without PD; 746.96 BTU/h with 192W PD at 220V/50Hz and 25°C
• Operating Temperature
  -10°C to 50°C
• Storage Temperature
  -40°C to 70°C
• Operating Humidity
  10% to 90% non-condensing
• Storage Humidity
  5% to 95% non-condensing
• Dimensions
  440 x 180 x 44 mm
• Housing Material
  Metal
• Cooling
  2 built-in fans
• Mounting
  Desktop, wall mount, rackmount
• LED Indicators
  Link/Act and PoE for each Ethernet port, PoE Max, Power
• Certifications
  CE, RoHS
• Package Contents
  20-Port gigabit rackmount switch with 16-port PoE+, power adapter, mounting brackets and accessories, user manual
