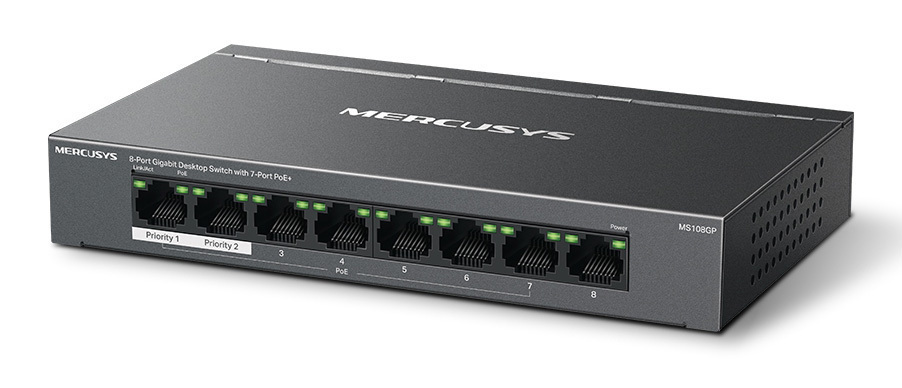

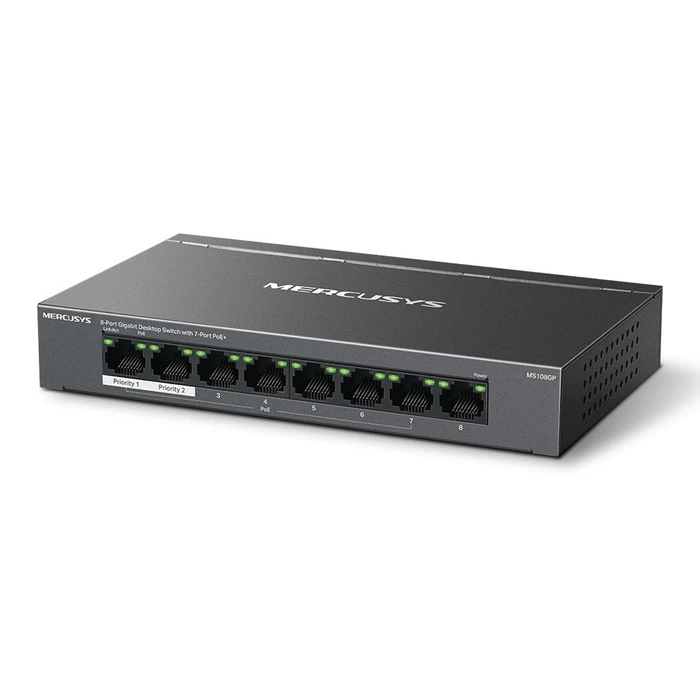

ROUTER MERCUSYS MS108GP 8-Port Gigabit desktop switch with 7 PoE+ ports

Description

Technical Specifications

• Brand
  MERCUSYS
• Model
  MS108GP
• MPN
  MERCUSYS MS108GP
• SKU
  253-0032
• EAN
  6957939001209
• Product Type
  Unmanaged Gigabit Desktop Switch with PoE+
• Ports
  8 x RJ45 10/100/1000 Mbps
• PoE Ports
  7 ports (Ports 1-7)

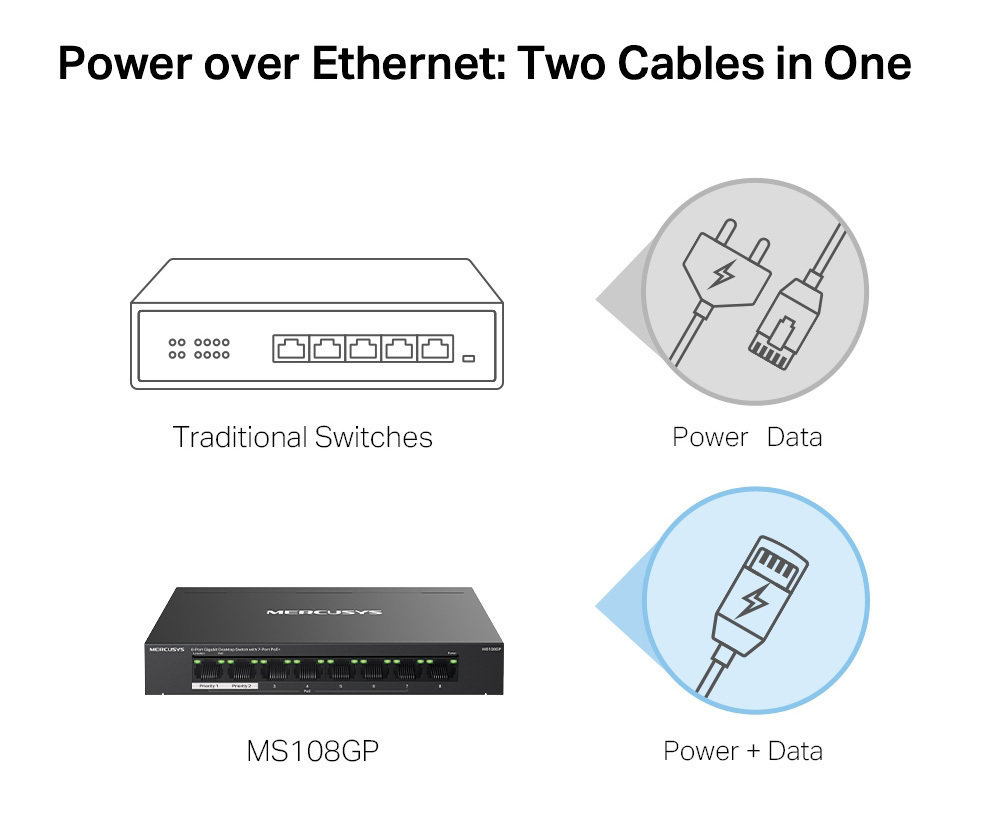

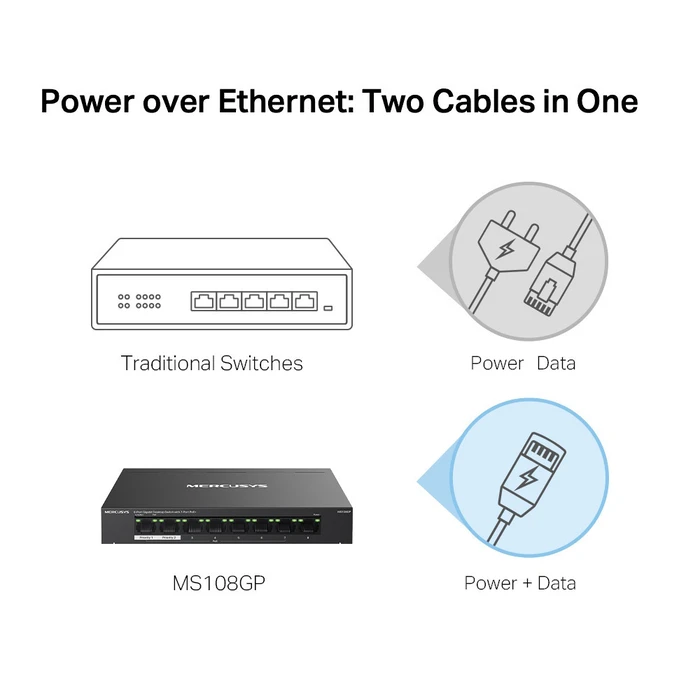

• PoE Standard
  IEEE 802.3af/at
• PoE Power per Port
  Up to 30W

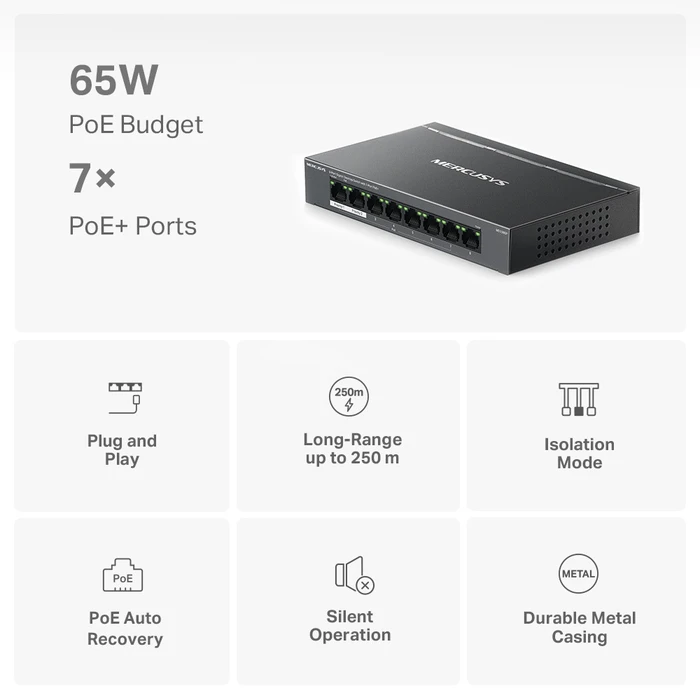

• Total PoE Power Budget
  65W
• Switching Capacity
  16 Gbps
• MAC Address Table
  8K
• Jumbo Frame
  9 KB
• Forwarding Method
  Store-and-forward
• Data Rates
  10/100/1000 Mbps half duplex, 20/200/2000 Mbps full duplex
• Features

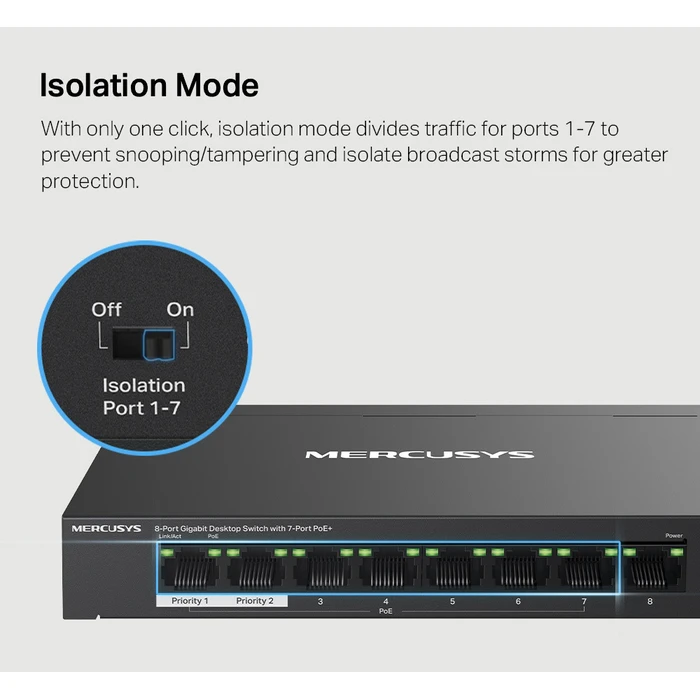

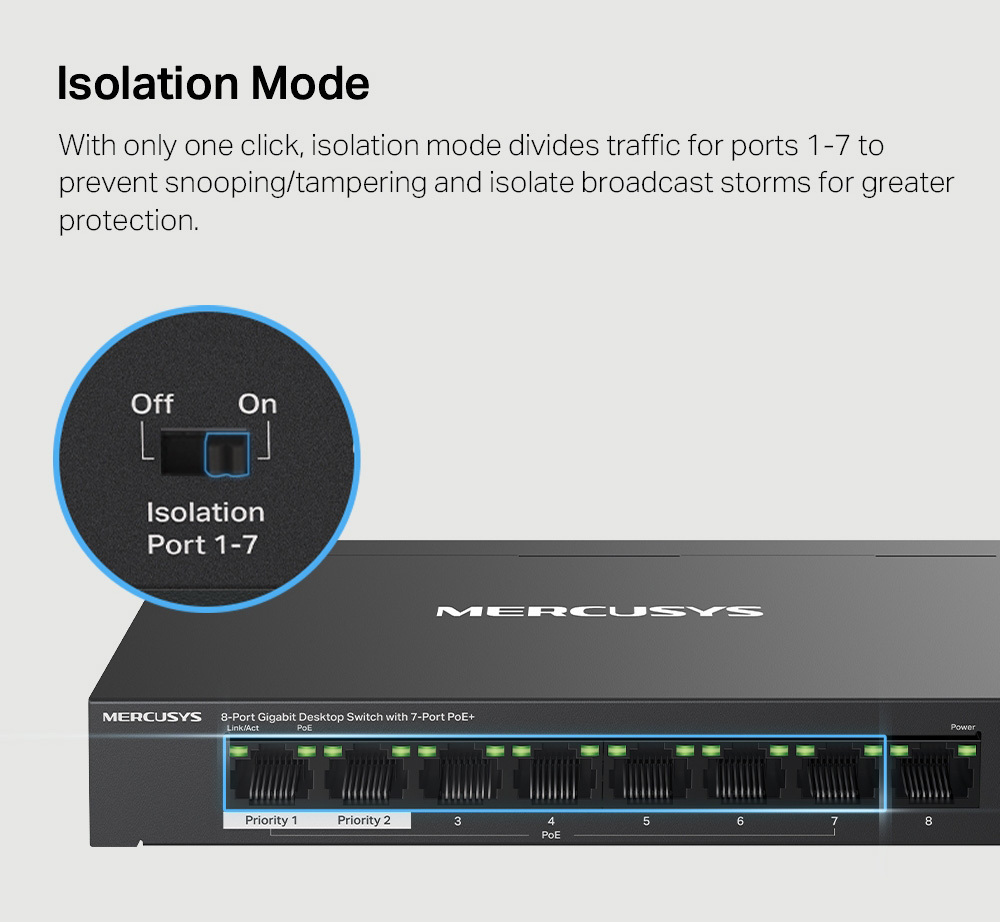

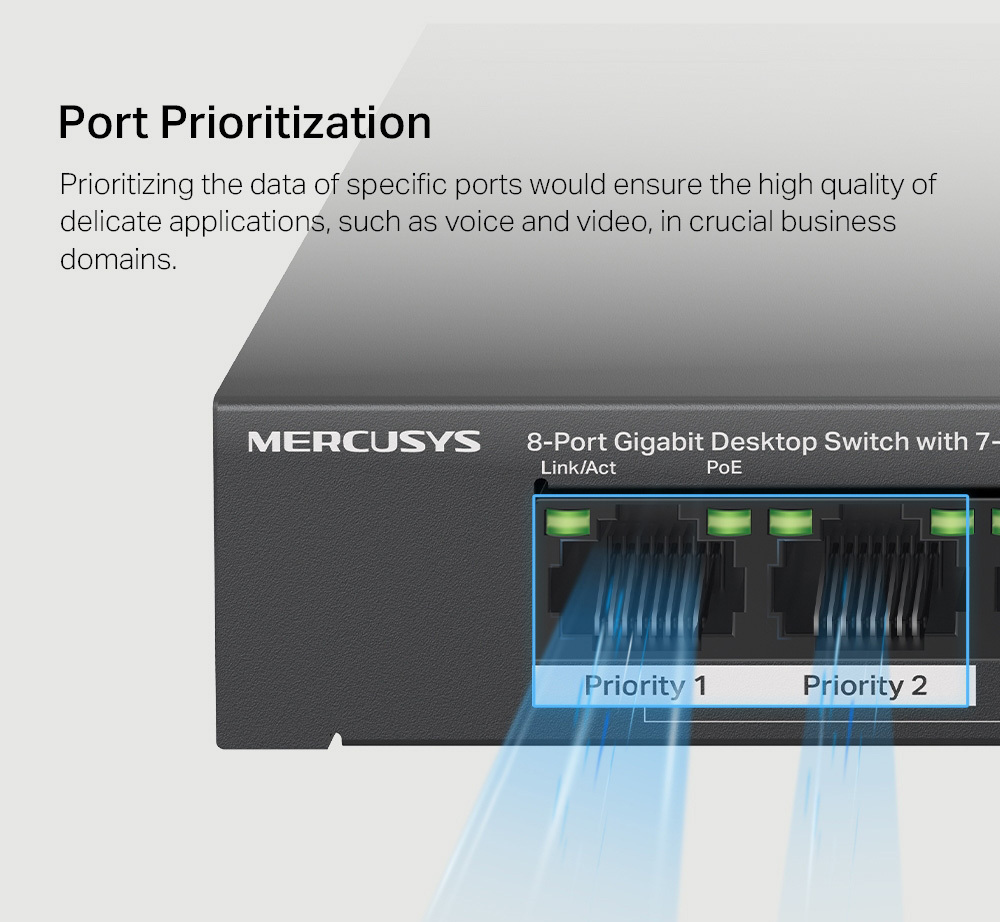

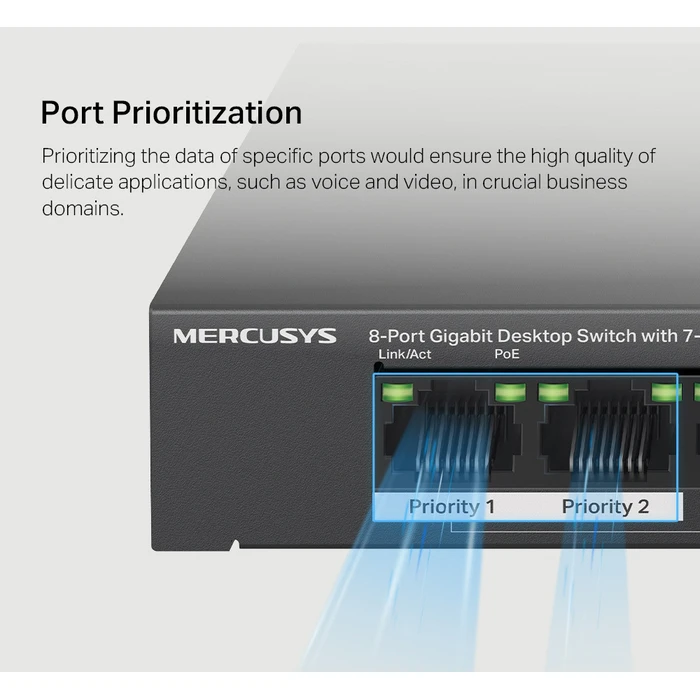

  Plug & Play, Extend Mode up to 250 meters, Isolation Mode, Port Prioritization, 802.3x Flow Control, IGMP Snooping V1/V2/V3
• LED Indicators
  Power, Link/Act, PoE status per port
• Housing Material
  Metal
• Cooling
  Fanless silent operation
• Mounting
  Desktop or wall mount

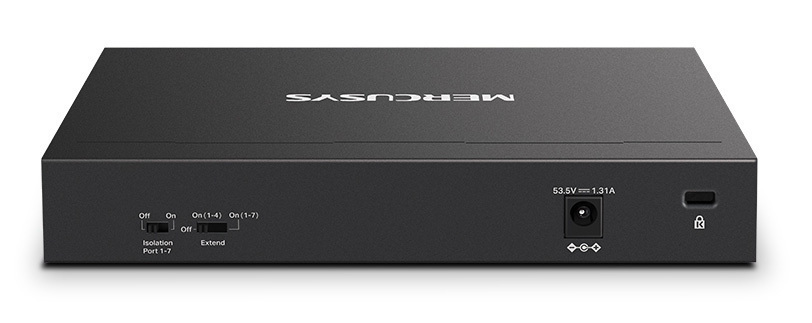

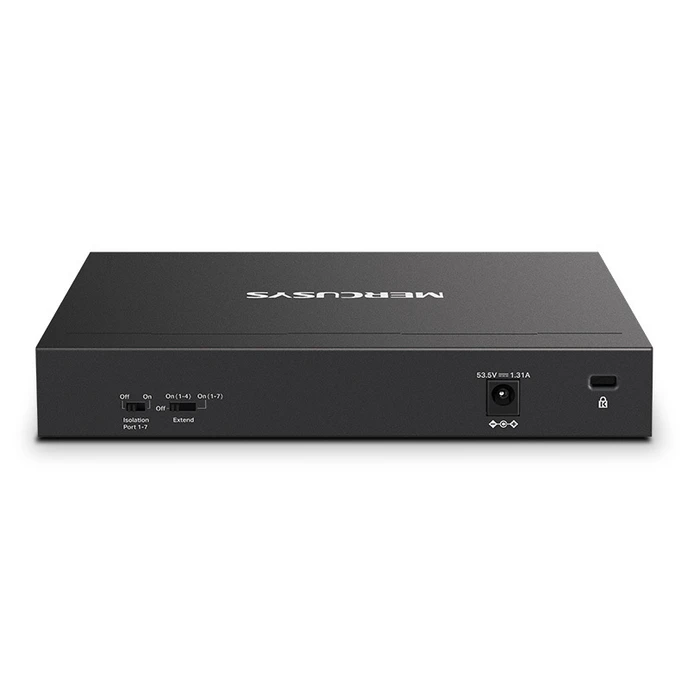

• Power Supply
  External adapter
• Input Power
  100-240 VAC, 50/60 Hz
• Output Power
  53.5V / 1.31A
• Max Power Consumption
  5.07W idle, 77.33W with full 65W PD load
• Heat Dissipation
  17.238 BTU/h idle, 262.922 BTU/h full load
• Operating Temperature
  0°C to 40°C
• Storage Temperature
  -40°C to 70°C
• Operating Humidity
  10% to 90% non-condensing
• Storage Humidity
  5% to 95% non-condensing
• Dimensions
  171 x 98 x 27 mm
• Certifications
  CE, RoHS
• Package Contents
  8-Port 10/100/1000 Mbps desktop switch with 7-Port PoE+, power adapter, user manual
