Outdoor MIFARE RFID proximity reader (MCT12M-BK-DES-IO) for the Roger RACS 5 access control system. Supports MIFARE Ultralight, Classic, Plus and DESFire (EV1/EV2/EV3) cards, operates at 13.56 MHz (ISO14443A) with reading ranges up to 7 cm for Ultralight/Classic. IP65 rated for outdoor use,...
More

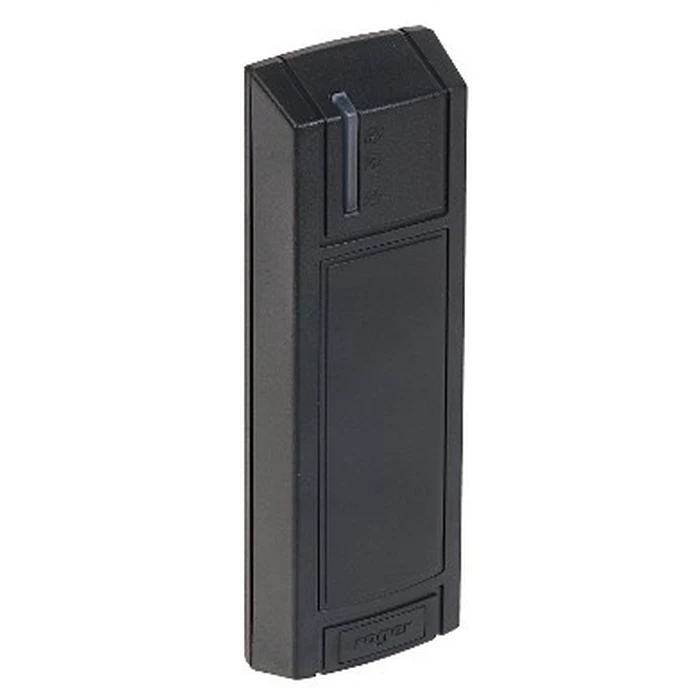

Roger Proximity Reader MCT12M-BK-DES-IO
Product Code: 1127719658
Upon Order
264,25 €
or
8,25€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 793 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Outdoor MIFARE RFID proximity reader (MCT12M-BK-DES-IO) for the Roger RACS 5 access control system. Supports MIFARE Ultralight, Classic, Plus and DESFire (EV1/EV2/EV3) cards, operates at 13.56 MHz (ISO14443A) with reading ranges up to 7 cm for Ultralight/Classic. IP65 rated for outdoor use, silicone-rubber backlit keypad, 3 LEDs, adjustable buzzer, tamper contact, RS485 (EPSO 3) communications, and additional inputs/outputs (IO) for integration.
-
BrandRoger
-
ModelMCT12M-BK-DES-IO
-
Product TypeOutdoor proximity RFID reader / access terminal with keypad
-
Frequency13.56 MHz (ISO14443A)
-
Supported CardsMIFARE Ultralight, MIFARE Classic (1k/4k), MIFARE Plus, MIFARE DESFire (EV1/EV2/EV3)
-
Reading Range (Ultralight/Classic)Up to 7 cm
-
Reading Range (DESFire/Plus)Approximately 3–4 cm
-
Communication InterfaceRS485 (EPSO 3 protocol for RACS 5)
-
Max Cable Length to ControllerUp to 1200 m
-
Power Supply12 VDC nominal (range 10–15 VDC)
-
Current ConsumptionApproximately 65 mA (MCT12M-BK-DES-IO)
-
Protection RatingIP65 (outdoor use)
-
Tamper ProtectionTamper contact (enclosure open detection)
-
KeypadSilicone rubber keypad with regulated backlight
-
Function Keys2 function keys
-
LED Indicators3 LEDs
-
BuzzerIntegrated, adjustable loudness
-
Inputs (IO version)3 parametric inputs (IN1–IN3), configurable pulse (50–5000 ms)
-
Outputs (IO version)1 relay output (NO/NC, 30 V / 1.5 A) and 2 transistor outputs (150 mA / 15 V)
-
Output PolarityConfigurable (normal or reverse)
-
Firmware UpdateVia RS485 using RogerVDM software
-
Dimensions152.5 × 46.0 × 23.0 mm (H × W × D)
-
Weight150 g (device)
-
EAN / Barcode5907608961120
-
SKUWLONONWCROR39
-
MPNMCT12M-BK-DES-IO
-
Warranty12 months
Ratings
Description
Outdoor MIFARE RFID proximity reader (MCT12M-BK-DES-IO) for the Roger RACS 5 access control system. Supports MIFARE Ultralight, Classic, Plus and DESFire (EV1/EV2/EV3) cards, operates at 13.56 MHz (ISO14443A) with reading ranges up to 7 cm for Ultralight/Classic. IP65 rated for outdoor use, silicone-rubber backlit keypad, 3 LEDs, adjustable buzzer, tamper contact, RS485 (EPSO 3) communications, and additional inputs/outputs (IO) for integration.
Technical Specifications
-
BrandRoger
-
ModelMCT12M-BK-DES-IO
-
Product TypeOutdoor proximity RFID reader / access terminal with keypad
-
Frequency13.56 MHz (ISO14443A)
-
Supported CardsMIFARE Ultralight, MIFARE Classic (1k/4k), MIFARE Plus, MIFARE DESFire (EV1/EV2/EV3)
-
Reading Range (Ultralight/Classic)Up to 7 cm
-
Reading Range (DESFire/Plus)Approximately 3–4 cm
-
Communication InterfaceRS485 (EPSO 3 protocol for RACS 5)
-
Max Cable Length to ControllerUp to 1200 m
-
Power Supply12 VDC nominal (range 10–15 VDC)
-
Current ConsumptionApproximately 65 mA (MCT12M-BK-DES-IO)
-
Protection RatingIP65 (outdoor use)
-
Tamper ProtectionTamper contact (enclosure open detection)
-
KeypadSilicone rubber keypad with regulated backlight
-
Function Keys2 function keys
-
LED Indicators3 LEDs
-
BuzzerIntegrated, adjustable loudness
-
Inputs (IO version)3 parametric inputs (IN1–IN3), configurable pulse (50–5000 ms)
-
Outputs (IO version)1 relay output (NO/NC, 30 V / 1.5 A) and 2 transistor outputs (150 mA / 15 V)
-
Output PolarityConfigurable (normal or reverse)
-
Firmware UpdateVia RS485 using RogerVDM software
-
Dimensions152.5 × 46.0 × 23.0 mm (H × W × D)
-
Weight150 g (device)
-
EAN / Barcode5907608961120
-
SKUWLONONWCROR39
-
MPNMCT12M-BK-DES-IO
-
Warranty12 months
