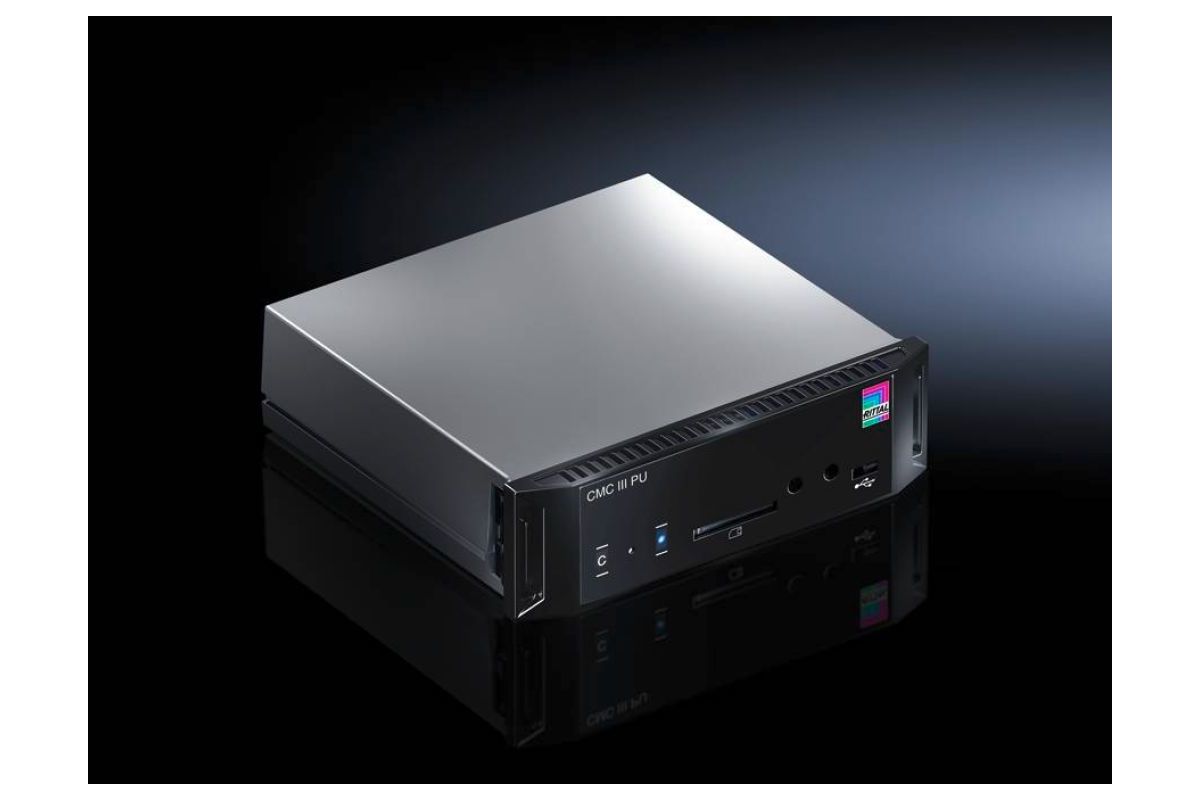

Rittal CMC III Processing Unit — 32 Sensors (MPN: 7030000)

Description

Technical Specifications

• Brand
  Rittal
• Model / MPN
  CMC III Processing Unit / 7030000
• SKU
  238897
• EAN
  4028177659322
• Supported external sensors
  max. 32 external sensors or CAN-bus units
• Integrated sensors
  Temperature sensor and infrared access sensor (range 20–100 mm)
• CAN bus interfaces
  2 × RJ45 CAN-bus (supports up to 16 CAN bus accesses total)
• Network interface
  Ethernet 10/100 BaseT Full-Duplex, PoE supported
• Power supply
  PoE or external AC adapter (adapter not included)
• Alarm output
  Relay (changeover contact, max. 24 V DC / 1 A)
• Digital inputs
  2 digital inputs (terminal)
• Storage
  SD-HC slot (max. 32 GB) for data recording
• USB interfaces
  Front mini-USB (system settings), Rear USB (updates/USB stick up to 32 GB)
• Serial interface
  RJ12 (RS232) for display, GSM or ISDN units
• Real-time clock
  Yes, with NTP support
• Network/security protocols
  LDAP, DNS, SMTP, Syslog, SNMP
• Acoustic info
  Piezo transducer for acoustic information
• Web access
  Web interface and mobile website (Android/Windows phones)
• Camera integration
  Compatible with AXIS network cameras (VAPIX® v3)
• Legacy support
  Integrates earlier CMC-TC sensors via CAN-bus sensor (DK 7030.100)
• Dimensions (W×H×D)
  138 mm × 40 mm × 132 mm
• Mounting
  1U (19" frame compatible)
• Housing material
  Plastic
• Color (RAL)
  Housing: RAL 7035 (Light Grey); Front: RAL 9005 (Jet Black)
• Protection class
  IP30 (IEC 60529)
• Operating temperature
  0 °C to +45 °C
• Operating humidity
  5% to 95% non-condensing
• SD card max capacity
  32 GB
• Warranty
  Manufacturer dependent (typically 1 year bring-in)
• Weight (product approx.)
  ~400 g
