Rittal CMC III Power Supply (DK 7030.060, MPN 7030060, EAN 4028177659384) designed to power the CMC III Processing Unit (PU), Compact PU, CMC III LED light strips, door modules and CAN-Bus units. AC input 100–240 V (50/60 Hz) via IEC C14, stabilized 24 V DC output with up to 2 A (some sources state...
More

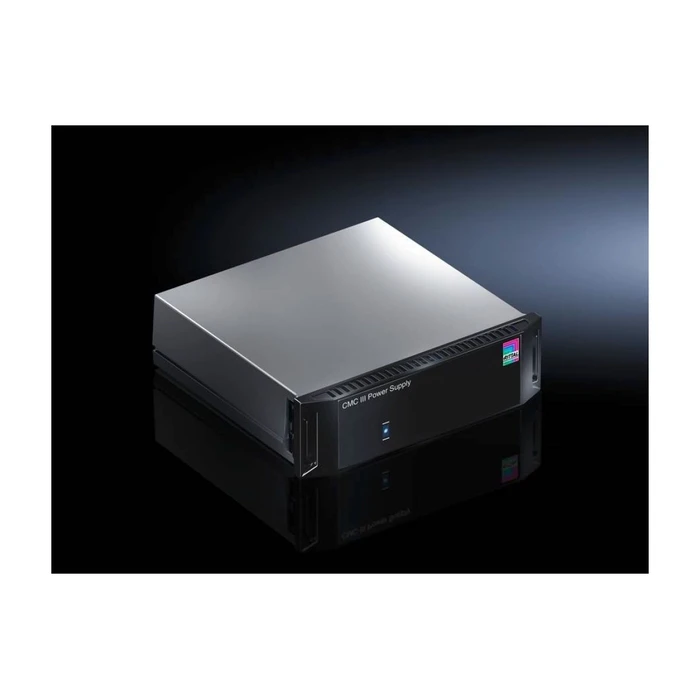

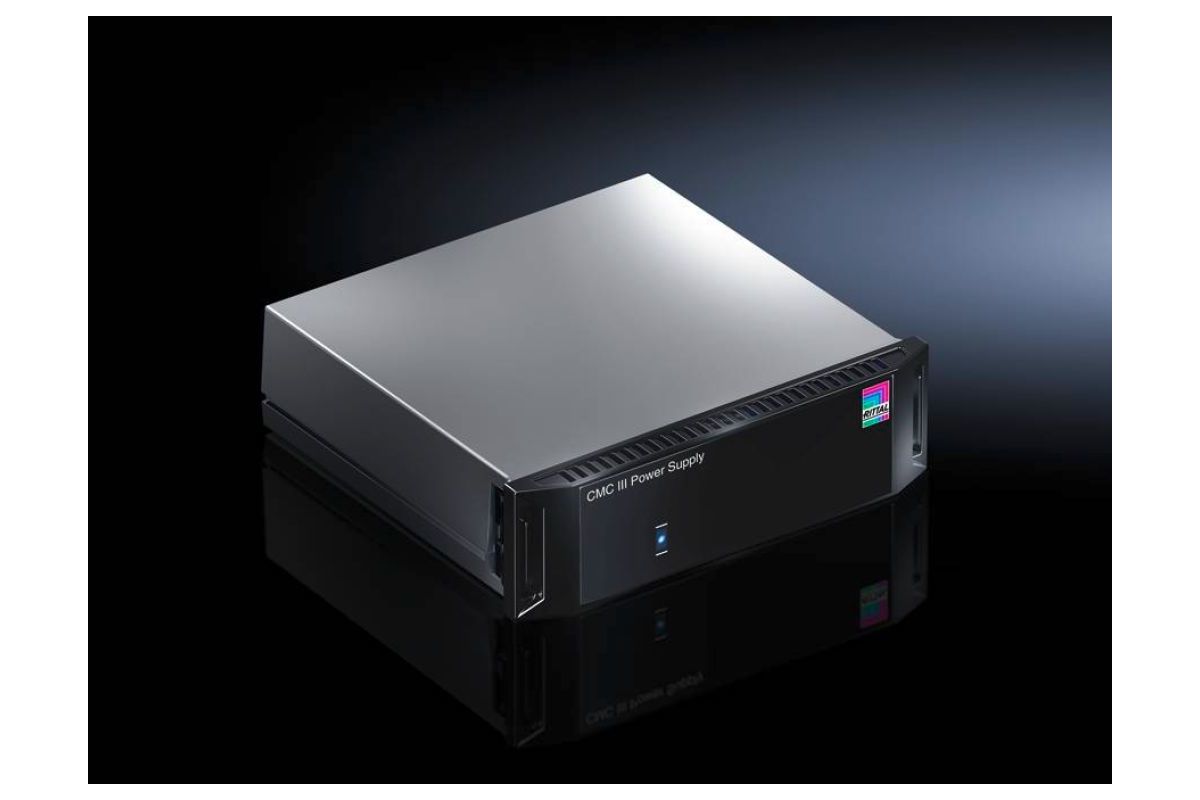

Rittal CMC III Power Supply DK 7030.060 (MPN 7030060)
Product Code: 1117716083
Available in 1 - 3 days
157,17 €
or
4,91€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 472 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Rittal CMC III Power Supply (DK 7030.060, MPN 7030060, EAN 4028177659384) designed to power the CMC III Processing Unit (PU), Compact PU, CMC III LED light strips, door modules and CAN-Bus units. AC input 100–240 V (50/60 Hz) via IEC C14, stabilized 24 V DC output with up to 2 A (some sources state up to 2.5 A). Compact plastic housing (black front RAL 9005, body RAL 7035), integrated status LED, redundant power support, IP40, operating temperature 0–40 °C. Dimensions ~138 × 40 × 132 mm. Includes output protection (fuse).
-
BrandRittal
-
Model / MPNDK 7030.060 (7030060)
-
EAN4028177659384
-
SKU238898
-
Product TypeCMC III AC-to-DC Power Supply / Netzteil
-
Input Voltage100–240 V AC, 50/60 Hz (IEC C14)
-
Output Voltage24 V DC
-
Output Current (max)2 A (typical) — some sources list up to 2.5 A
-
RedundancySupports redundant connections for CMC III PU
-
CompatibilityCMC III Processing Unit (PU), Compact PU, LED light strips, door modules, CAN-Bus unit
-
Dimensions (WxHxD)138 mm × 40 mm × 132 mm
-
Housing MaterialPlastic casing
-
Housing ColorFront: RAL 9005 (black); Body: RAL 7035 (light grey)
-
Status IndicatorIntegrated LED (green)
-
Operating Temperature0 °C to +40 °C (some sources +5 °C to +40 °C)
-
Protection ClassIP40
-
Safety / ProtectionOutput protected by 10 A fuse (Output 1 + Output 2)
-
ConnectionsInput: IEC C14 (cold appliance connector); Output: dedicated 24 V DC terminals
-
Weight (approx.)~350 g (device only)
-
Package Dimensions (approx.)16 cm × 6 cm × 15 cm
-
Package Weight (approx.)~600 g
-
Certifications / ComplianceDesigned for industrial/rack use (manufacturer technical documentation available)
Ratings
Description
Rittal CMC III Power Supply (DK 7030.060, MPN 7030060, EAN 4028177659384) designed to power the CMC III Processing Unit (PU), Compact PU, CMC III LED light strips, door modules and CAN-Bus units. AC input 100–240 V (50/60 Hz) via IEC C14, stabilized 24 V DC output with up to 2 A (some sources state up to 2.5 A). Compact plastic housing (black front RAL 9005, body RAL 7035), integrated status LED, redundant power support, IP40, operating temperature 0–40 °C. Dimensions ~138 × 40 × 132 mm. Includes output protection (fuse).
Technical Specifications
-
BrandRittal
-
Model / MPNDK 7030.060 (7030060)
-
EAN4028177659384
-
SKU238898
-
Product TypeCMC III AC-to-DC Power Supply / Netzteil
-
Input Voltage100–240 V AC, 50/60 Hz (IEC C14)
-
Output Voltage24 V DC
-
Output Current (max)2 A (typical) — some sources list up to 2.5 A
-
RedundancySupports redundant connections for CMC III PU
-
CompatibilityCMC III Processing Unit (PU), Compact PU, LED light strips, door modules, CAN-Bus unit
-
Dimensions (WxHxD)138 mm × 40 mm × 132 mm
-
Housing MaterialPlastic casing
-
Housing ColorFront: RAL 9005 (black); Body: RAL 7035 (light grey)
-
Status IndicatorIntegrated LED (green)
-
Operating Temperature0 °C to +40 °C (some sources +5 °C to +40 °C)
-
Protection ClassIP40
-
Safety / ProtectionOutput protected by 10 A fuse (Output 1 + Output 2)
-
ConnectionsInput: IEC C14 (cold appliance connector); Output: dedicated 24 V DC terminals
-
Weight (approx.)~350 g (device only)
-
Package Dimensions (approx.)16 cm × 6 cm × 15 cm
-
Package Weight (approx.)~600 g
-
Certifications / ComplianceDesigned for industrial/rack use (manufacturer technical documentation available)
