FINDER relay model F40.52.8.230 with a 230 V AC coil. It features 2 changeover contacts (2 × SPDT) and a rated current of 8 A (rated). Maximum current Imax: 15 A. Maximum operating voltage Umax: 253 V AC. Coil resistance: 28,000 Ω. Operating temperature range: -40 to +85 °C. Mechanical endurance:...
More

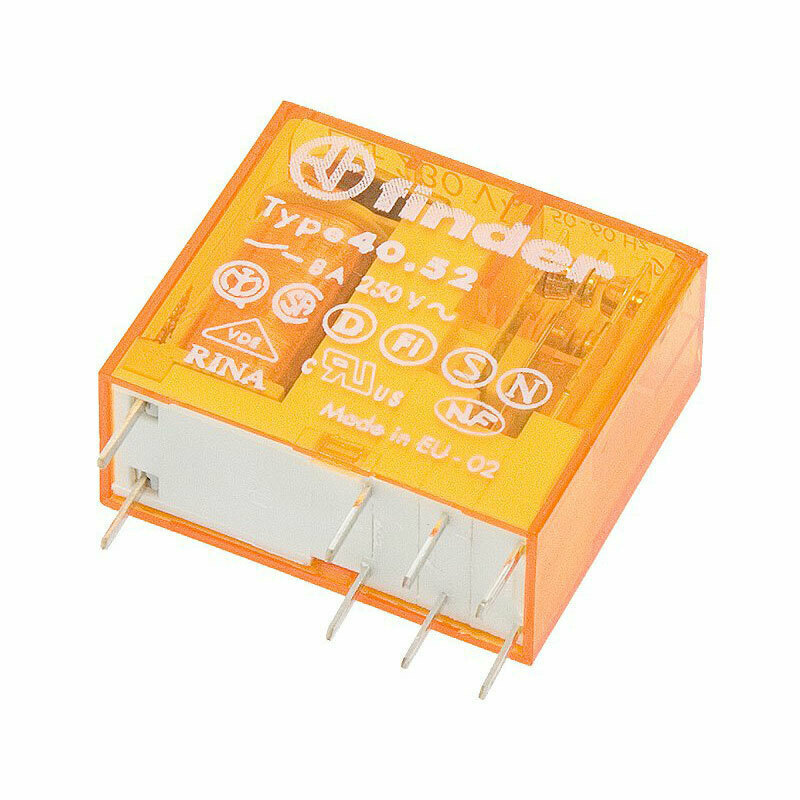

Relay FINDER F40.52.8.230 8A 230V AC, 2 changeover contacts
Product Code: 1143722418
Available in 4 - 6 days
27,14 €
With the purchase of this product you earn 82 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
FINDER relay model F40.52.8.230 with a 230 V AC coil. It features 2 changeover contacts (2 × SPDT) and a rated current of 8 A (rated). Maximum current Imax: 15 A. Maximum operating voltage Umax: 253 V AC. Coil resistance: 28,000 Ω. Operating temperature range: -40 to +85 °C. Mechanical endurance: 10,000,000 switching cycles. Compact dimensions: 29 x 25 x 12.4 mm. Suitable for control applications requiring two changeover contacts and a 230 V AC coil.
-
CategoryΡελέ
-
BrandFinder
-
ModelF40.52.8.230
-
MPNDM-0182
-
SKUDM-0182
-
EAN5900804016922
-
Coil voltage230 V AC
-
Rated current8 A
-
Maximum current (Imax)15 A
-
Maximum voltage (Umax)253 V AC
-
Coil resistance28,000 Ω
-
Contact type2 changeover contacts (2 × SPDT)
-
Number of contact poles2
-
Mechanical endurance10,000,000 switching cycles
-
Operating temperature range-40 ... +85 °C
-
Dimensions29 x 25 x 12.4 mm
-
Package weight (approx.)30 g
-
Product weight (approx.)20 g
Ratings
Description
FINDER relay model F40.52.8.230 with a 230 V AC coil. It features 2 changeover contacts (2 × SPDT) and a rated current of 8 A (rated). Maximum current Imax: 15 A. Maximum operating voltage Umax: 253 V AC. Coil resistance: 28,000 Ω. Operating temperature range: -40 to +85 °C. Mechanical endurance: 10,000,000 switching cycles. Compact dimensions: 29 x 25 x 12.4 mm. Suitable for control applications requiring two changeover contacts and a 230 V AC coil.
Technical Specifications
-
CategoryΡελέ
-
BrandFinder
-
ModelF40.52.8.230
-
MPNDM-0182
-
SKUDM-0182
-
EAN5900804016922
-
Coil voltage230 V AC
-
Rated current8 A
-
Maximum current (Imax)15 A
-
Maximum voltage (Umax)253 V AC
-
Coil resistance28,000 Ω
-
Contact type2 changeover contacts (2 × SPDT)
-
Number of contact poles2
-
Mechanical endurance10,000,000 switching cycles
-
Operating temperature range-40 ... +85 °C
-
Dimensions29 x 25 x 12.4 mm
-
Package weight (approx.)30 g
-
Product weight (approx.)20 g
