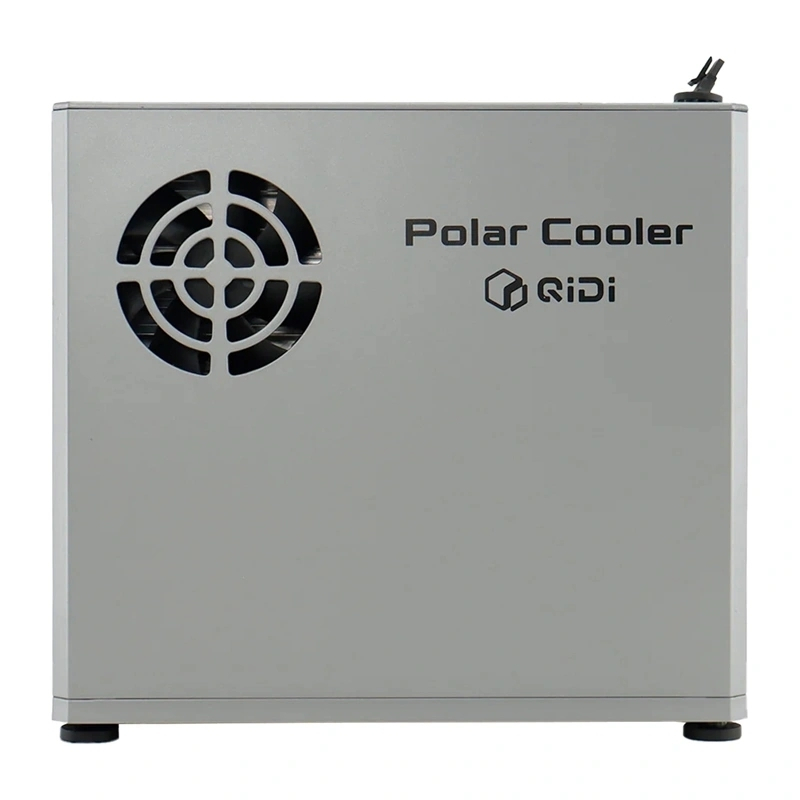

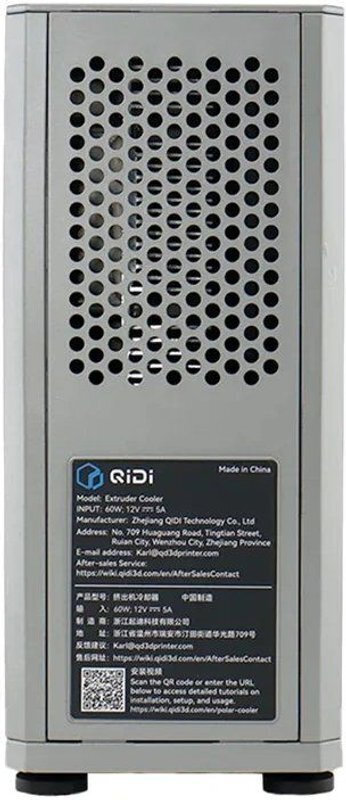

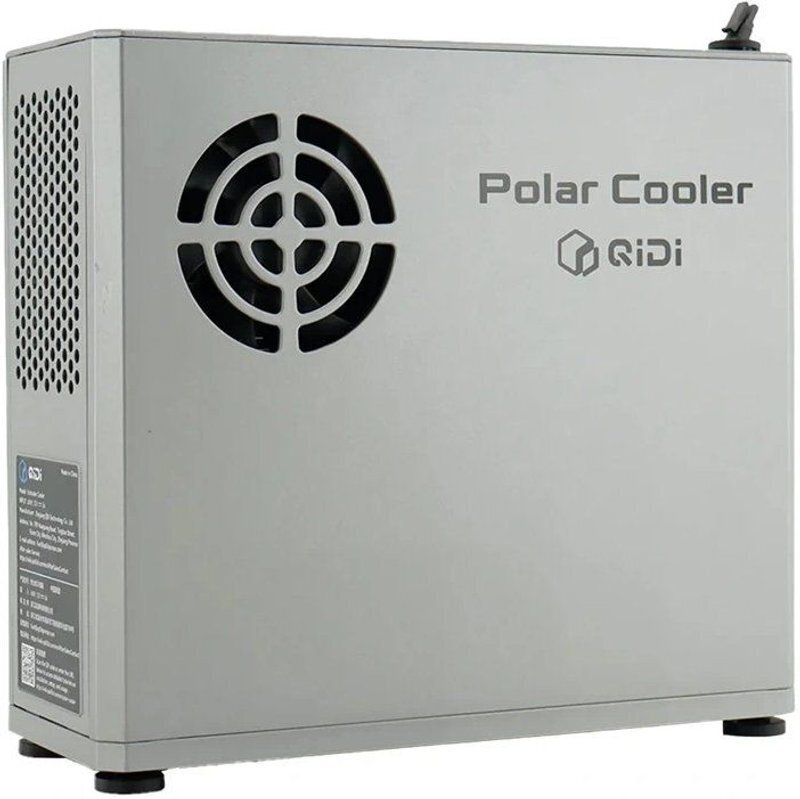

The QiDi Polar Cooler (model PCM4-Q2) is a dedicated cooling unit designed for QiDi Q2 and Max4 extruders. It provides active cooling to the extruder/nozzle area to reduce clogs, filament fragments and improve print stability. The unit combines an aluminum cooler block with an ABS housing and...
More
QiDi Polar Cooler for Q2 / Max4 Extruders
Product Code: 1167748851
Available in 4 - 6 days
301,30 €
or
9,41€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 904 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The QiDi Polar Cooler (model PCM4-Q2) is a dedicated cooling unit designed for QiDi Q2 and Max4 extruders. It provides active cooling to the extruder/nozzle area to reduce clogs, filament fragments and improve print stability. The unit combines an aluminum cooler block with an ABS housing and silicone tubing, features closed-loop airflow control, and includes a washable/replaceable air filter. Key performance specs: product dimensions 234 × 92 × 214 mm, weight 1.6 kg, operating ambient 0–65 °C, noise ~54 dB at 1 m, rated voltage 12 V and rated power 60 W. Cooler head dimensions 100 × 95 × 25 mm. Pump and fan powers are low-power: 4 W (pump) and 8.4 W (air pump).
-
BrandQiDi
-
ModelPCM4-Q2
-
Product TypePolar Cooler for extruders (Q2 / Max4)
-
CompatibilityQiDi Q2 and QiDi Max4 extruders
-
Primary FunctionActive cooling to reduce nozzle/extruder overheating, clogging and filament fragments
-
Cooling MethodActive air/liquid-assisted cooling with closed-loop airflow control
-
Cooler MaterialAluminum (cooling block)
-
Housing MaterialABS
-
Tubing MaterialSilicone (5×7 mm)
-
Product Dimensions234 × 92 × 214 mm
-
Cooler (heat sink) Dimensions100 × 95 × 25 mm
-
Product Weight1.6 kg
-
Operating Ambient Temperature Range0–65 °C
-
Delivered Air Temperature ReductionApprox. 10 °C below ambient at the outlet
-
Noise Level54 dB (measured at 1 meter)
-
Air Flow2.8–3.2 mph (specified)
-
Pump Power4 W
-
Air Pump / Fan Power8.4 W
-
Rated Voltage12 V
-
Rated Power60 W
-
FilterRemovable and washable air passage filter
Ratings
Description
The QiDi Polar Cooler (model PCM4-Q2) is a dedicated cooling unit designed for QiDi Q2 and Max4 extruders. It provides active cooling to the extruder/nozzle area to reduce clogs, filament fragments and improve print stability. The unit combines an aluminum cooler block with an ABS housing and silicone tubing, features closed-loop airflow control, and includes a washable/replaceable air filter. Key performance specs: product dimensions 234 × 92 × 214 mm, weight 1.6 kg, operating ambient 0–65 °C, noise ~54 dB at 1 m, rated voltage 12 V and rated power 60 W. Cooler head dimensions 100 × 95 × 25 mm. Pump and fan powers are low-power: 4 W (pump) and 8.4 W (air pump).
Technical Specifications
-
BrandQiDi
-
ModelPCM4-Q2
-
Product TypePolar Cooler for extruders (Q2 / Max4)
-
CompatibilityQiDi Q2 and QiDi Max4 extruders
-
Primary FunctionActive cooling to reduce nozzle/extruder overheating, clogging and filament fragments
-
Cooling MethodActive air/liquid-assisted cooling with closed-loop airflow control
-
Cooler MaterialAluminum (cooling block)
-
Housing MaterialABS
-
Tubing MaterialSilicone (5×7 mm)
-
Product Dimensions234 × 92 × 214 mm
-
Cooler (heat sink) Dimensions100 × 95 × 25 mm
-
Product Weight1.6 kg
-
Operating Ambient Temperature Range0–65 °C
-
Delivered Air Temperature ReductionApprox. 10 °C below ambient at the outlet
-
Noise Level54 dB (measured at 1 meter)
-
Air Flow2.8–3.2 mph (specified)
-
Pump Power4 W
-
Air Pump / Fan Power8.4 W
-
Rated Voltage12 V
-
Rated Power60 W
-
FilterRemovable and washable air passage filter
