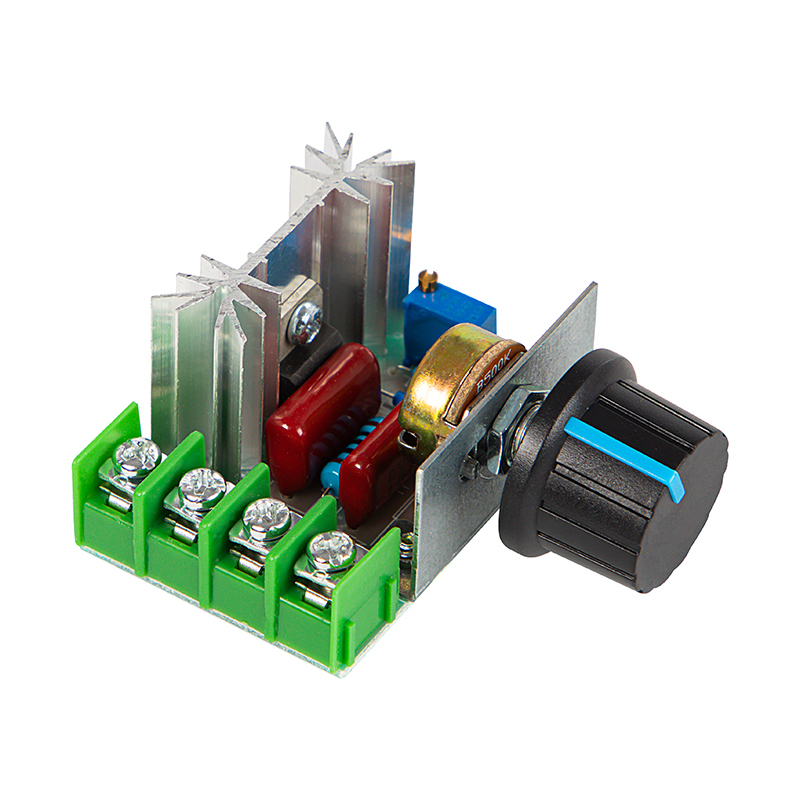

PWM speed/voltage regulator for single-phase motors, fans and heating elements. Operates from 230V AC and features an integrated potentiometer with a rotary knob for manual adjustment. Supplied as an open PCB with aluminium heatsink and connection terminals. Rated for up to 2000W (peak/pulse) and...
More
PWM Speed/Voltage Regulator 2000W 230V (DM-50-296)
Product Code: 1143722822
Available in 4 - 6 days
5,71 €
With the purchase of this product you earn 18 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
PWM speed/voltage regulator for single-phase motors, fans and heating elements. Operates from 230V AC and features an integrated potentiometer with a rotary knob for manual adjustment. Supplied as an open PCB with aluminium heatsink and connection terminals. Rated for up to 2000W (peak/pulse) and 1500W continuous. Intended for DIY installations and requires proper mounting, insulation and ventilation. Model: DM-50-296, EAN: 5907621814182.
-
TypeVoltage/PWM Speed Regulator
-
Model (MPN)DM-50-296
-
EAN5907621814182
-
Rated Voltage230V AC (mains)
-
Maximum (pulse) load power2000W
-
Continuous load power1500W
-
Control methodIntegrated potentiometer with rotary knob
-
CoolingAluminium heatsink mounted on PCB
-
Load compatibilitySingle-phase motors, fans, heating elements (monophase)
-
Form factorOpen PCB (requires mounting/insulation)
-
Main PCB dimensions48 x 60 x 28 mm
-
Potentiometer PCB dimensions48 x 36 x 28 mm
-
MaterialPCB, electronic components, aluminium heatsink
-
Mounting requirementsSecure mounting and adequate ventilation recommended
-
Safety notesNot supplied in a protective enclosure; avoid exposure to moisture and ensure proper insulation
Ratings
Description
PWM speed/voltage regulator for single-phase motors, fans and heating elements. Operates from 230V AC and features an integrated potentiometer with a rotary knob for manual adjustment. Supplied as an open PCB with aluminium heatsink and connection terminals. Rated for up to 2000W (peak/pulse) and 1500W continuous. Intended for DIY installations and requires proper mounting, insulation and ventilation. Model: DM-50-296, EAN: 5907621814182.
Technical Specifications
-
TypeVoltage/PWM Speed Regulator
-
Model (MPN)DM-50-296
-
EAN5907621814182
-
Rated Voltage230V AC (mains)
-
Maximum (pulse) load power2000W
-
Continuous load power1500W
-
Control methodIntegrated potentiometer with rotary knob
-
CoolingAluminium heatsink mounted on PCB
-
Load compatibilitySingle-phase motors, fans, heating elements (monophase)
-
Form factorOpen PCB (requires mounting/insulation)
-
Main PCB dimensions48 x 60 x 28 mm
-
Potentiometer PCB dimensions48 x 36 x 28 mm
-
MaterialPCB, electronic components, aluminium heatsink
-
Mounting requirementsSecure mounting and adequate ventilation recommended
-
Safety notesNot supplied in a protective enclosure; avoid exposure to moisture and ensure proper insulation
