Push ON Button Switch 250V/125V 3A (DM-3948)
Push ON Button Switch 250V/125V 3A (DM-3948)
Push ON momentary button switch (model DM-3948). Electrical ratings: 1A at 250VAC and 3A at 125VAC. Contact resistance maximum 20 mΩ. Insulation resistance ≥100 MΩ (measured at 500 VDC). Dielectric strength 1500 VAC. Operating temperature -25°C to +85°C. Mechanical life ~50,000 cycles. Two contacts...
More

Push ON Button Switch 250V/125V 3A (DM-3948)

Product Code: 1143722570
Available in 4 - 6 days
0,88 €
loyalty icon
With the purchase of this product you earn 3 Bytes
Quantity:
Add
support icon

Need Help? Fill in your details so we can call you immediately!

Description

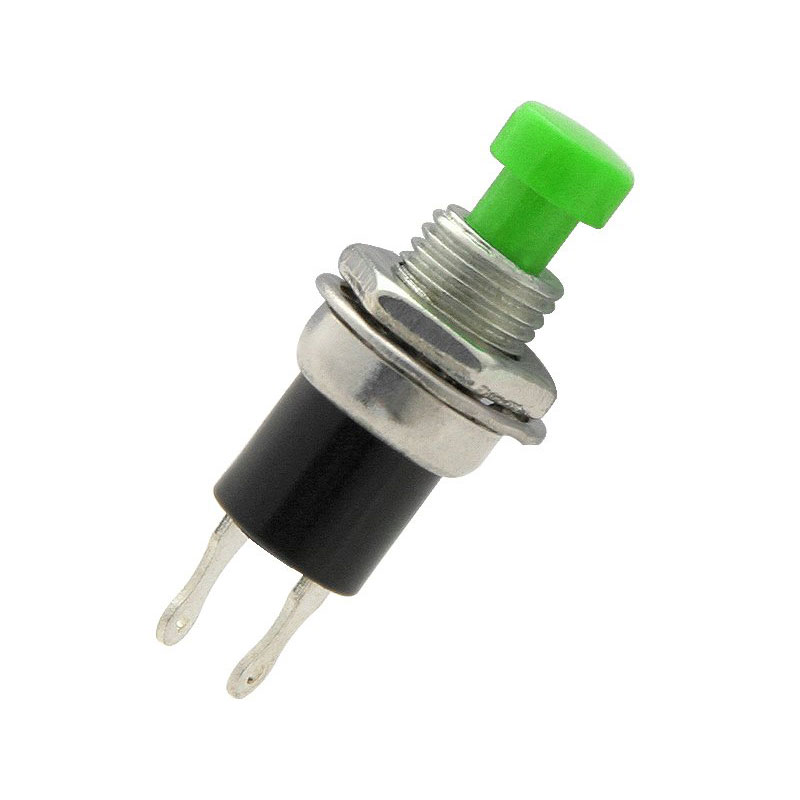

Push ON momentary button switch (model DM-3948). Electrical ratings: 1A at 250VAC and 3A at 125VAC. Contact resistance maximum 20 mΩ. Insulation resistance ≥100 MΩ (measured at 500 VDC). Dielectric strength 1500 VAC. Operating temperature -25°C to +85°C. Mechanical life ~50,000 cycles. Two contacts (2 poles) and two positions with ON-(OFF) momentary action. Appearance: green, round. Brand/manufacturer not specified. SKU DM-3948, EAN 5900804063537.
Technical Specifications
Ratings
