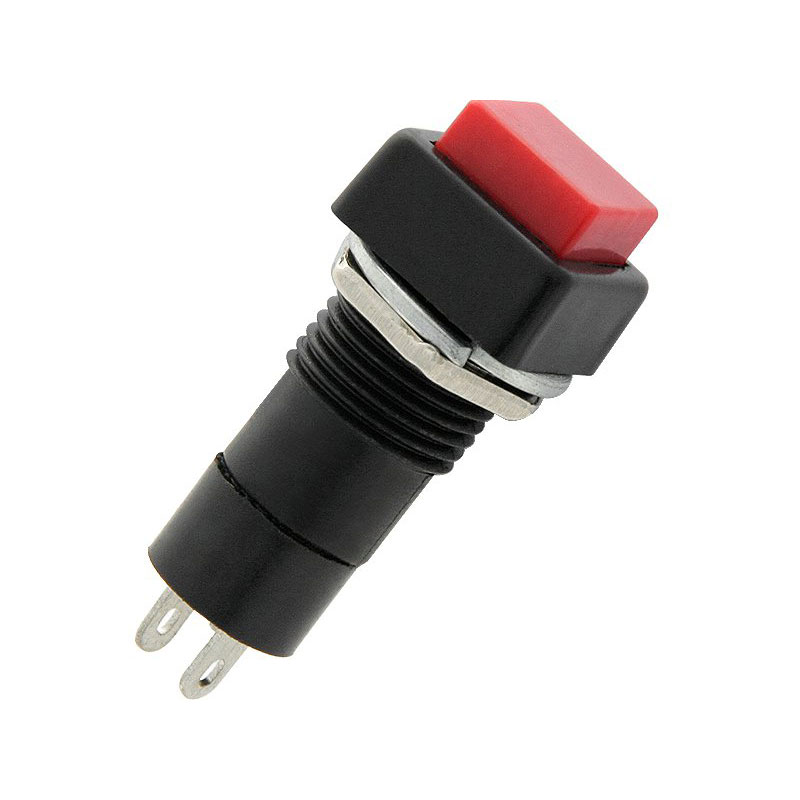

Push ON Button Red (DM-5017)
Push ON Button Red (DM-5017)
Push ON push-button switch, model DM-5017, red. Electrical and mechanical specifications: Contact rating 1A at 250VAC / 3A at 125VAC; contact resistance ≤20 mΩ; insulation resistance 100 MΩ at 500 VDC; dielectric strength 1500 VAC for 1 minute. Operating temperature range -25°C to +85°C. Mechanical...
More

Push ON Button Red (DM-5017)

Product Code: 1143742403
Available in 4 - 6 days
0,85 €
loyalty icon
With the purchase of this product you earn 3 Bytes
Quantity:
Add
support icon

Need Help? Fill in your details so we can call you immediately!

Description
Push ON push-button switch, model DM-5017, red. Electrical and mechanical specifications: Contact rating 1A at 250VAC / 3A at 125VAC; contact resistance ≤20 mΩ; insulation resistance 100 MΩ at 500 VDC; dielectric strength 1500 VAC for 1 minute. Operating temperature range -25°C to +85°C. Mechanical life approx. 50,000 cycles. Number of contacts: 2. Positions: 2 (ON-OFF). Button color/shape: red / square. Manufacturer not specified. EAN 5900804016618, MPN DM-5017.
Technical Specifications
Ratings
0,85 €
Add
