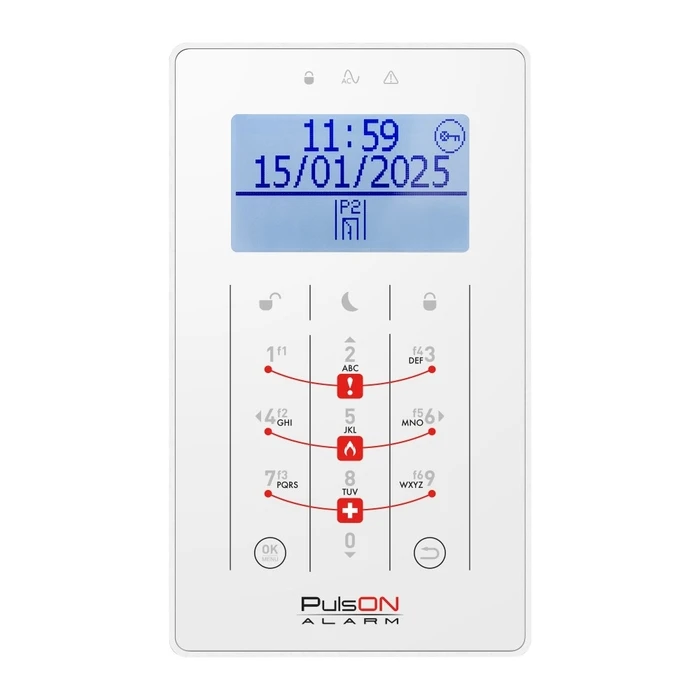

The PULSON LCD/S WH is a white touch-sensitive LCD manipulator (keypad) designed for daily operation of the PulsON Alarm 4G system. It features a graphic LCD display, 6 programmable function keys, 3 dedicated alarm buttons (Fire, Panic, Medical), 2 zone inputs, status LEDs above the display,...
More
PULSON LCD/S WH Touch-sensitive LCD Manipulator (White) - Keypad for PulsON Alarm 4G
Product Code: 1127719009
Upon Order
127,41 €
or
3,98€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 383 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The PULSON LCD/S WH is a white touch-sensitive LCD manipulator (keypad) designed for daily operation of the PulsON Alarm 4G system. It features a graphic LCD display, 6 programmable function keys, 3 dedicated alarm buttons (Fire, Panic, Medical), 2 zone inputs, status LEDs above the display, backlit keys, tamper protection and EN-50131 Grade 2 design. Power: 12V DC (±15%) from the bus, max current consumption 125 mA. Operating temperature -10°C to +55°C.
-
BrandBCS
-
ModelPULSON LCD/S WH
-
Product TypeTouch-sensitive LCD Manipulator / Keypad
-
DisplayGraphic LCD
-
Keypad TypeTouch-sensitive (soft keys)
-
Zone Inputs2 zone inputs
-
Function Keys6 programmable function keys
-
Alarm Buttons3 dedicated buttons (Fire, Panic, Medical)
-
IndicatorsLEDs above the display for zone/system status
-
BacklightBacklit keys for low-light operation
-
Power Supply12V DC (±15%) from the bus
-
Current Consumption125 mA (max)
-
Operating Temperature-10°C to +55°C
-
HumidityUp to 93% non-condensing
-
Dimensions (W×H×D)93 × 158 × 18 mm
-
Weight172 g
-
ColorWhite (interchangeable front overlays available in other colors)
-
CertificationDesigned to EN-50131 Grade 2 requirements
-
Tamper ProtectionYes
-
AddressingDIP switches for keypad addressing
-
CompatibilityDesigned for PulsON Alarm 4G system
-
MountingWall-mounted (surface mounting on backbox)
-
Audible SignalsBuilt-in audible signalling for selected events
Ratings
Description
The PULSON LCD/S WH is a white touch-sensitive LCD manipulator (keypad) designed for daily operation of the PulsON Alarm 4G system. It features a graphic LCD display, 6 programmable function keys, 3 dedicated alarm buttons (Fire, Panic, Medical), 2 zone inputs, status LEDs above the display, backlit keys, tamper protection and EN-50131 Grade 2 design. Power: 12V DC (±15%) from the bus, max current consumption 125 mA. Operating temperature -10°C to +55°C.
Technical Specifications
-
BrandBCS
-
ModelPULSON LCD/S WH
-
Product TypeTouch-sensitive LCD Manipulator / Keypad
-
DisplayGraphic LCD
-
Keypad TypeTouch-sensitive (soft keys)
-
Zone Inputs2 zone inputs
-
Function Keys6 programmable function keys
-
Alarm Buttons3 dedicated buttons (Fire, Panic, Medical)
-
IndicatorsLEDs above the display for zone/system status
-
BacklightBacklit keys for low-light operation
-
Power Supply12V DC (±15%) from the bus
-
Current Consumption125 mA (max)
-
Operating Temperature-10°C to +55°C
-
HumidityUp to 93% non-condensing
-
Dimensions (W×H×D)93 × 158 × 18 mm
-
Weight172 g
-
ColorWhite (interchangeable front overlays available in other colors)
-
CertificationDesigned to EN-50131 Grade 2 requirements
-
Tamper ProtectionYes
-
AddressingDIP switches for keypad addressing
-
CompatibilityDesigned for PulsON Alarm 4G system
-
MountingWall-mounted (surface mounting on backbox)
-
Audible SignalsBuilt-in audible signalling for selected events
