The Pulsar SF116 is a managed CCTV/networking switch designed for surveillance and network installations. It features 16 x 10/100 RJ-45 ports with PoE, 2 x Gigabit copper (10/100/1000) ports and 2 SFP slots for fiber uplinks. Supports IEEE 802.3, 802.3af, 802.3at, 802.3u and 802.3x standards, Auto...
More

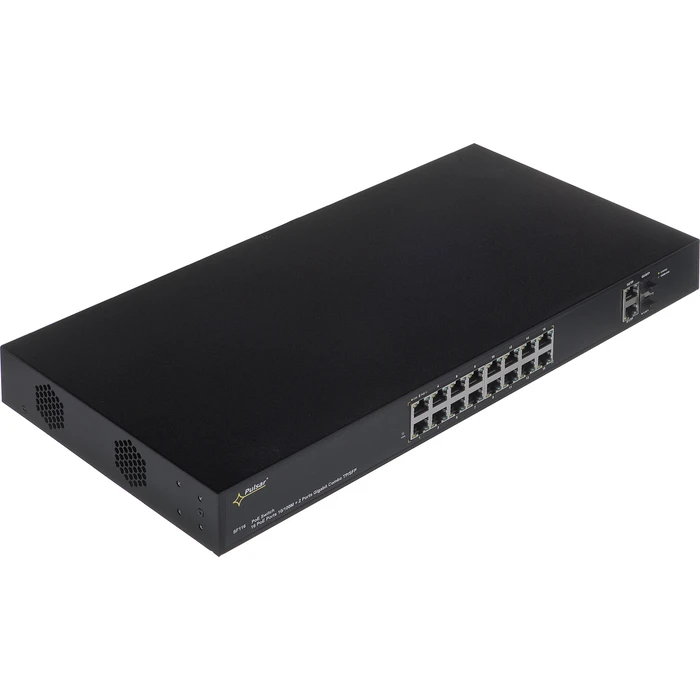

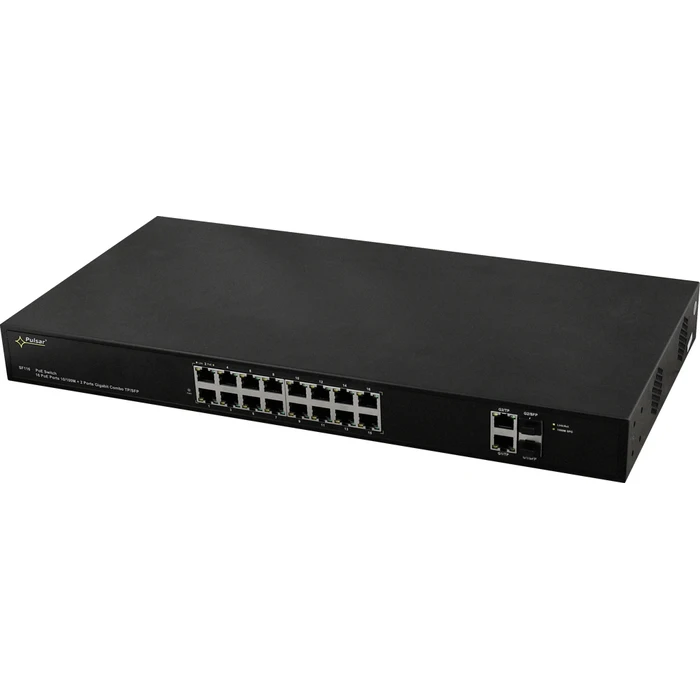

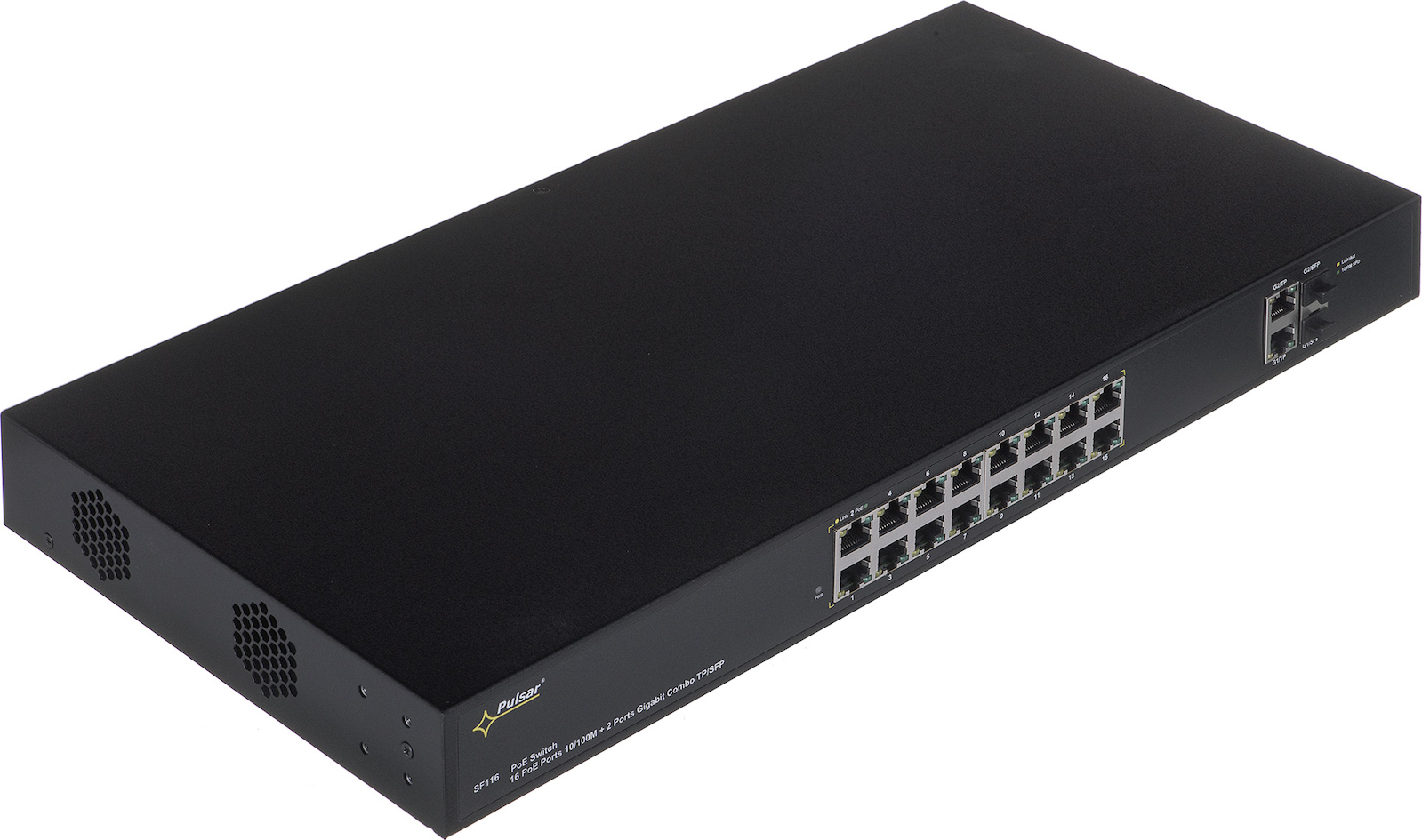

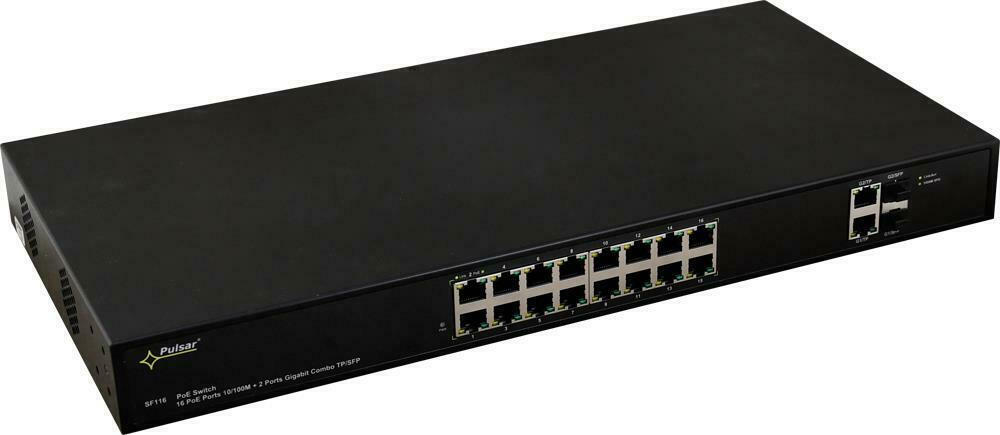

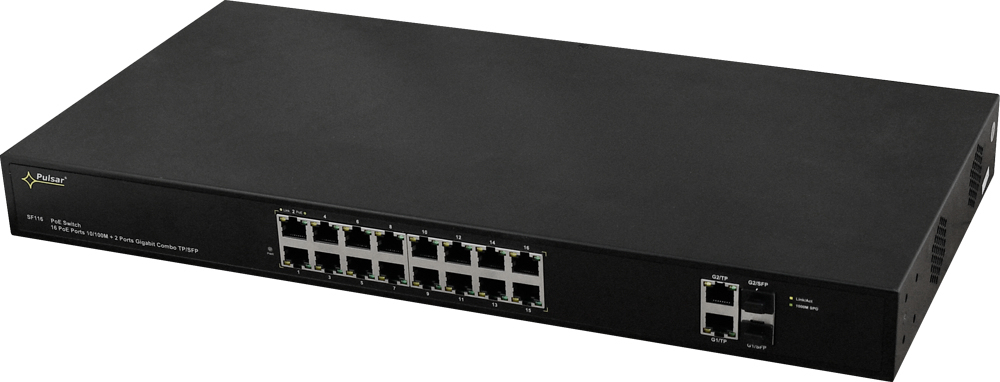

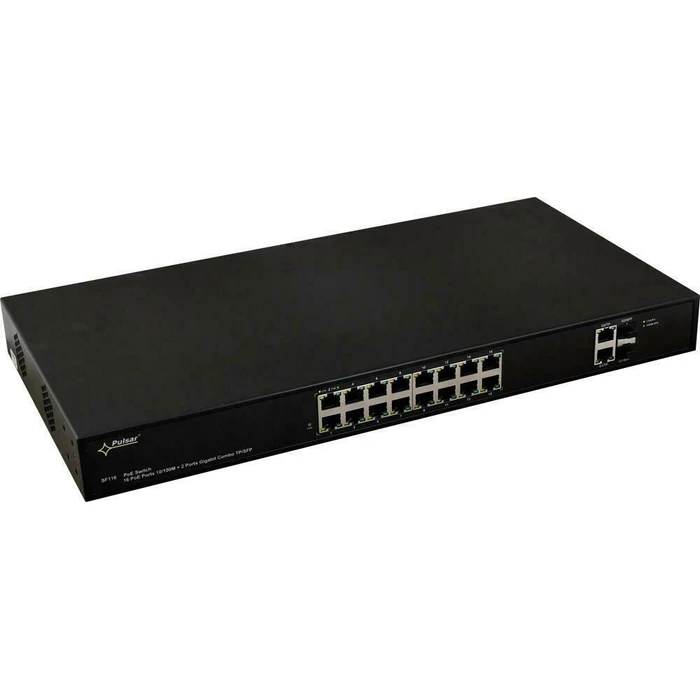

Pulsar CCTV Network Switch SF116 (16-Port Managed PoE Switch, 16x 10/100 PoE + 2x Gigabit + 2x SFP, 1U Rackmount, Black)
Product Code: 1127683095
Available in 4 - 10 days
271,27 €
or
8,47€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

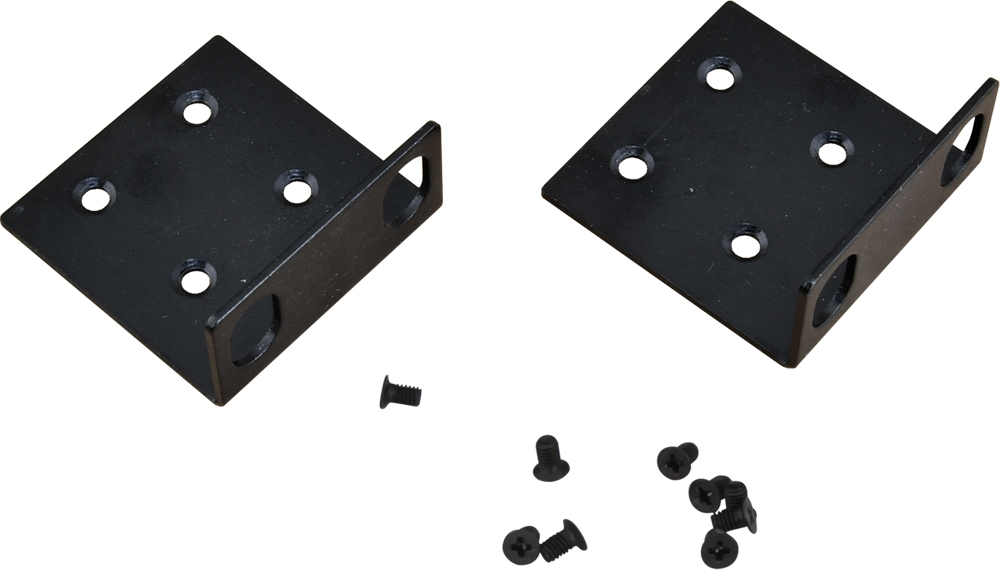

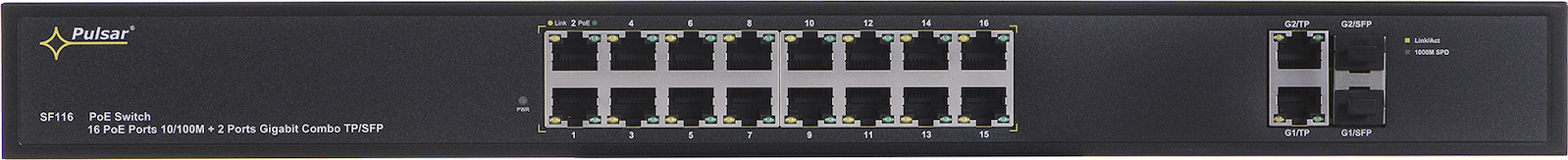

The Pulsar SF116 is a managed CCTV/networking switch designed for surveillance and network installations. It features 16 x 10/100 RJ-45 ports with PoE, 2 x Gigabit copper (10/100/1000) ports and 2 SFP slots for fiber uplinks. Supports IEEE 802.3, 802.3af, 802.3at, 802.3u and 802.3x standards, Auto MDI/MDI-X and delivers a switching capacity of 14.8 Gbit/s. PoE capability: 52 V nominal, up to 30 W per PoE port. Front LEDs indicate Status, Power and Link. The unit is 1U rack-mountable (rack mount kit included), finished in black. Power supply is not included. Electrical and environmental specs: AC input 100-240 V, 50-60 Hz, 3 A; operating temperature -10 to 40 °C; storage temperature -20 to 60 °C; operating humidity 20-90% RH. Dimensions: 442 x 224 x 44 mm (W x D x H). Product weight 2.7 kg; package weight 3.1 kg. Model/MPN: SF116. SKU: WLONONWCROEPL. EAN: 5902135308059.
-
Product TypeSwitch
-
Switch TypeManaged
-
Basic switching RJ-45 Ethernet ports quantity16
-
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
-
Gigabit Ethernet (copper) ports quantity2
-
SFP module slots quantity2
-
Power over Ethernet (PoE) ports quantity16
-
Power over Ethernet (PoE) voltage52 V
-
Power over Ethernet (PoE) power per port30 W
-
Ethernet LAN data rates10,100,1000 Mbit/s
-
Networking standardsIEEE 802.3; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x
-
Auto MDI/MDI-XYes
-
Switching capacity14.8 Gbit/s
-
10G supportNo
-
LED indicatorsStatus, Power, Link
-
Form factor1U
-
Rack mountingYes
-

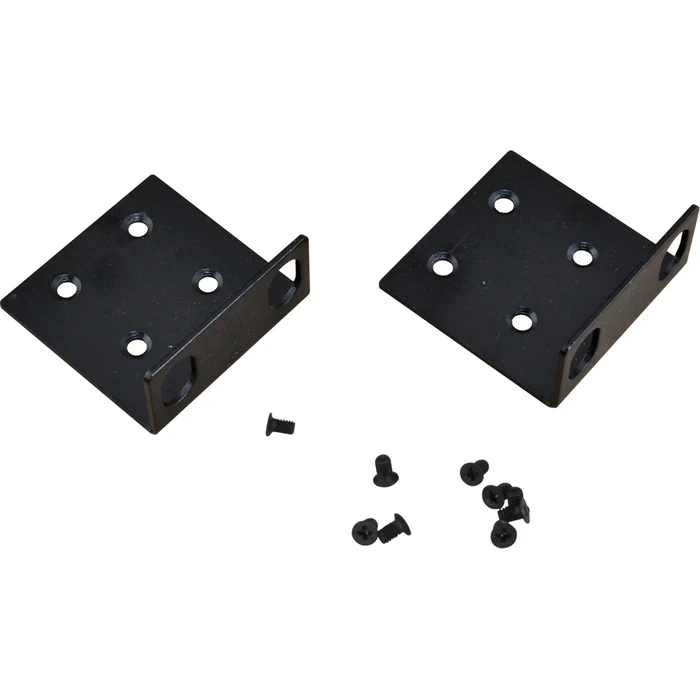

Rack mount kitYes
-
Power supply includedNo
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Input current3 A
-
Operating temperature (T-T)-10 - 40 °C
-
Storage temperature (T-T)-20 - 60 °C
-
Operating relative humidity (H-H)20 - 90%
-
Height44 mm
-
Width442 mm
-
Depth224 mm
-
Weight2.7 kg
-
Package weight3.1 kg
-
Product colourBlack
-
MPNSF116
-
SKUWLONONWCROEPL
-
EAN5902135308059
Ratings
Description
The Pulsar SF116 is a managed CCTV/networking switch designed for surveillance and network installations. It features 16 x 10/100 RJ-45 ports with PoE, 2 x Gigabit copper (10/100/1000) ports and 2 SFP slots for fiber uplinks. Supports IEEE 802.3, 802.3af, 802.3at, 802.3u and 802.3x standards, Auto MDI/MDI-X and delivers a switching capacity of 14.8 Gbit/s. PoE capability: 52 V nominal, up to 30 W per PoE port. Front LEDs indicate Status, Power and Link. The unit is 1U rack-mountable (rack mount kit included), finished in black. Power supply is not included. Electrical and environmental specs: AC input 100-240 V, 50-60 Hz, 3 A; operating temperature -10 to 40 °C; storage temperature -20 to 60 °C; operating humidity 20-90% RH. Dimensions: 442 x 224 x 44 mm (W x D x H). Product weight 2.7 kg; package weight 3.1 kg. Model/MPN: SF116. SKU: WLONONWCROEPL. EAN: 5902135308059.
Technical Specifications
-
Product TypeSwitch
-
Switch TypeManaged
-
Basic switching RJ-45 Ethernet ports quantity16
-
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
-
Gigabit Ethernet (copper) ports quantity2
-
SFP module slots quantity2
-
Power over Ethernet (PoE) ports quantity16
-
Power over Ethernet (PoE) voltage52 V
-
Power over Ethernet (PoE) power per port30 W
-
Ethernet LAN data rates10,100,1000 Mbit/s
-
Networking standardsIEEE 802.3; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x
-
Auto MDI/MDI-XYes
-
Switching capacity14.8 Gbit/s
-
10G supportNo
-
LED indicatorsStatus, Power, Link
-
Form factor1U
-
Rack mountingYes
-
Rack mount kitYes
-
Power supply includedNo
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Input current3 A
-
Operating temperature (T-T)-10 - 40 °C
-
Storage temperature (T-T)-20 - 60 °C
-
Operating relative humidity (H-H)20 - 90%
-
Height44 mm
-
Width442 mm
-
Depth224 mm
-
Weight2.7 kg
-
Package weight3.1 kg
-
Product colourBlack
-
MPNSF116
-
SKUWLONONWCROEPL
-
EAN5902135308059
