The PRO Cat6 Unshielded Flip Jack Keystone is a Cat6 RJ45 unshielded keystone jack designed for punchdown termination in wallplates, patch panels, and network enclosures. It features an 8P8C female RJ45 connector, supports both T568A and T568B wiring schemes, and is compatible with 23 to 26 AWG...
More

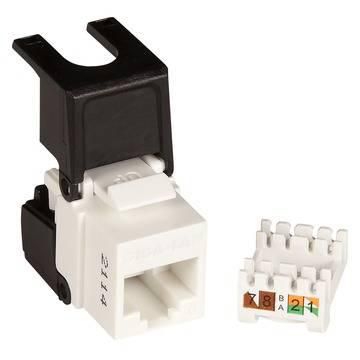

PRO Network Cables Cat6 Unshielded Flip Jack Keystone
Product Code: 1200653329
Available in 4 - 10 days
8,45 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The PRO Cat6 Unshielded Flip Jack Keystone is a Cat6 RJ45 unshielded keystone jack designed for punchdown termination in wallplates, patch panels, and network enclosures. It features an 8P8C female RJ45 connector, supports both T568A and T568B wiring schemes, and is compatible with 23 to 26 AWG solid copper conductors. The flip jack design makes termination and installation easier in standard keystone openings. It is built for durability with 750+ insertion and extraction cycles, gold-plated contacts, and a high-impact ABS and PC housing. The product complies with ANSI TIA 568.2 D Cat6 and ISO IEC 11801 Class E standards, supports up to 500 MHz bandwidth, PoE applications up to 100W, and high-speed Ethernet deployments including 10GBASE T over shorter runs. It is suitable for residential and professional structured cabling installations.
-
Product TypeCat6 Unshielded Flip Jack Keystone
-
Connector TypeRJ45 8P8C Female
-
Termination TypeIDC Punchdown
-
ShieldingUnshielded U UTP
-
Wiring SchemesT568A and T568B
-
Supported Wire Gauge23 to 26 AWG solid copper
-
Category RatingCat6
-
BandwidthUp to 500 MHz
-
Ethernet Support1000BASE T 5GBASE T 10GBASE T over shorter distances
-
PoE SupportPoE PoE Plus PoE++ up to 100W
-
Insertion Cycles750 plus
-
Housing MaterialABS and PC plastic
-
Contact MaterialGold plated contacts
-
Standards ComplianceANSI TIA 568.2 D ISO IEC 11801 Class E
-
Operating TemperatureMinus 10 C to 60 C
-
Current Rating0.8 A max
-
Installation TypeKeystone snap in
-
ApplicationWallplates patch panels enclosures structured cabling
-
ColorNot specified
-
PackagingNot specified
-
EAN5704174319061
-
SKUW125941385
-
MPNW125941385
Ratings
Description
The PRO Cat6 Unshielded Flip Jack Keystone is a Cat6 RJ45 unshielded keystone jack designed for punchdown termination in wallplates, patch panels, and network enclosures. It features an 8P8C female RJ45 connector, supports both T568A and T568B wiring schemes, and is compatible with 23 to 26 AWG solid copper conductors. The flip jack design makes termination and installation easier in standard keystone openings. It is built for durability with 750+ insertion and extraction cycles, gold-plated contacts, and a high-impact ABS and PC housing. The product complies with ANSI TIA 568.2 D Cat6 and ISO IEC 11801 Class E standards, supports up to 500 MHz bandwidth, PoE applications up to 100W, and high-speed Ethernet deployments including 10GBASE T over shorter runs. It is suitable for residential and professional structured cabling installations.
Technical Specifications
-
Product TypeCat6 Unshielded Flip Jack Keystone
-
Connector TypeRJ45 8P8C Female
-
Termination TypeIDC Punchdown
-
ShieldingUnshielded U UTP
-
Wiring SchemesT568A and T568B
-
Supported Wire Gauge23 to 26 AWG solid copper
-
Category RatingCat6
-
BandwidthUp to 500 MHz
-
Ethernet Support1000BASE T 5GBASE T 10GBASE T over shorter distances
-
PoE SupportPoE PoE Plus PoE++ up to 100W
-
Insertion Cycles750 plus
-
Housing MaterialABS and PC plastic
-
Contact MaterialGold plated contacts
-
Standards ComplianceANSI TIA 568.2 D ISO IEC 11801 Class E
-
Operating TemperatureMinus 10 C to 60 C
-
Current Rating0.8 A max
-
Installation TypeKeystone snap in
-
ApplicationWallplates patch panels enclosures structured cabling
-
ColorNot specified
-
PackagingNot specified
-
EAN5704174319061
-
SKUW125941385
-
MPNW125941385
