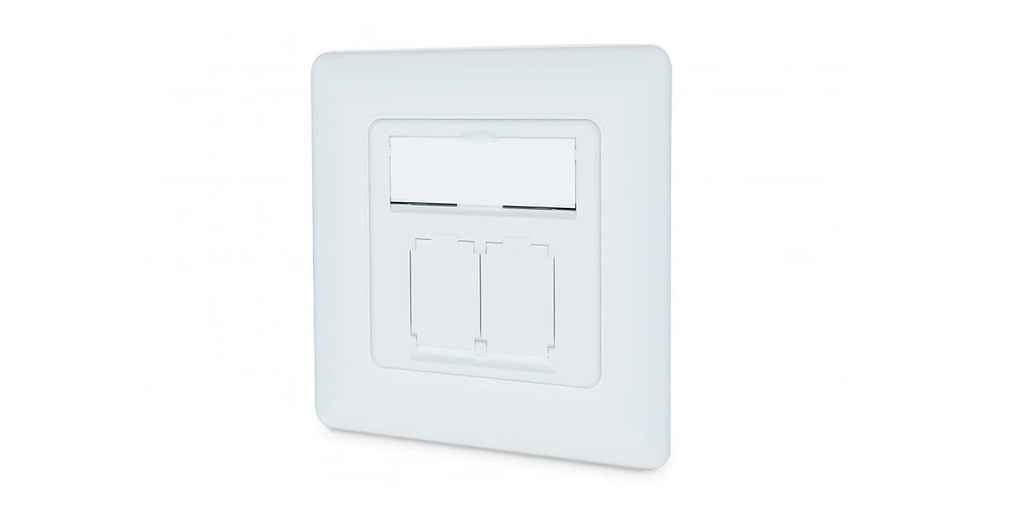

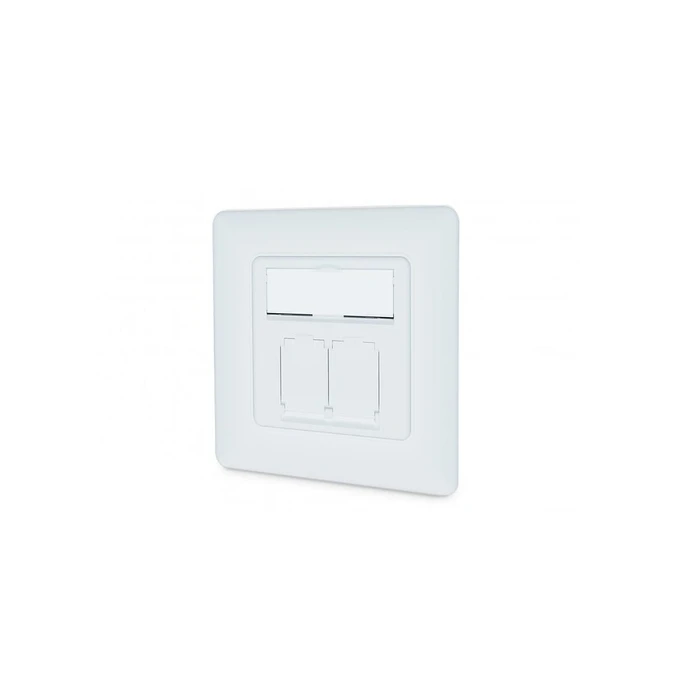

The DIGITUS DN-9010/8-2 is an exceptional CAT 6A Class EA shielded network outlet featuring 2x RJ45 sockets. It is meticulously designed for flush-mount installation, making it ideal for both trunking and surface applications, and supports high performance of up to 500 MHz with 10GBase-T transmission.
Key Features and Technical Specifications
- Transmission and Standards: Category 6A compliant with ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, and 802.3at PoE+;
- Connectors: 2x RJ45 female (8P8C) with strain relief and metal shielding;
- Performance Metrics: Operates at 500 MHz frequency with impressive insulation resistance of >500 MΩ.
Designed for Efficiency

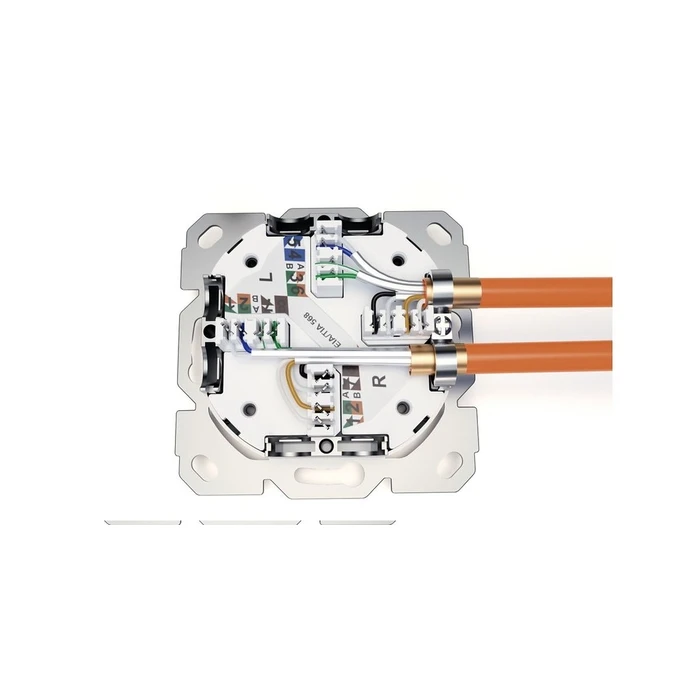

Constructed with a zinc die-cast housing, this outlet ensures complete shielding for both RJ45 sockets and IDC strips. The product is designed in pure white (RAL9003) color, and boasts an adjustable installation depth of 28 mm.
-
Frequency500 MHz
-
Output Impedance0.02 Ω
-
Insulation Resistance>500 MΩ
-
Contact Resistance<20 mΩ
-
Dielectric Strength1000 VDC (contact/contact), 1500 VDC (contact/ground)
-
Insertion Force30N
-
Retention Strength7.7 kg
-
Operating Temperature-20°C to +70°C
-
Installation Depth28 mm
Ratings
Description
The DIGITUS DN-9010/8-2 is an exceptional CAT 6A Class EA shielded network outlet featuring 2x RJ45 sockets. It is meticulously designed for flush-mount installation, making it ideal for both trunking and surface applications, and supports high performance of up to 500 MHz with 10GBase-T transmission.
Key Features and Technical Specifications
- Transmission and Standards: Category 6A compliant with ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, and 802.3at PoE+;
- Connectors: 2x RJ45 female (8P8C) with strain relief and metal shielding;
- Performance Metrics: Operates at 500 MHz frequency with impressive insulation resistance of >500 MΩ.
Designed for Efficiency
Constructed with a zinc die-cast housing, this outlet ensures complete shielding for both RJ45 sockets and IDC strips. The product is designed in pure white (RAL9003) color, and boasts an adjustable installation depth of 28 mm.
Technical Specifications
-
Frequency500 MHz
-
Output Impedance0.02 Ω
-
Insulation Resistance>500 MΩ
-
Contact Resistance<20 mΩ
-
Dielectric Strength1000 VDC (contact/contact), 1500 VDC (contact/ground)
-
Insertion Force30N
-
Retention Strength7.7 kg
-
Operating Temperature-20°C to +70°C
-
Installation Depth28 mm
