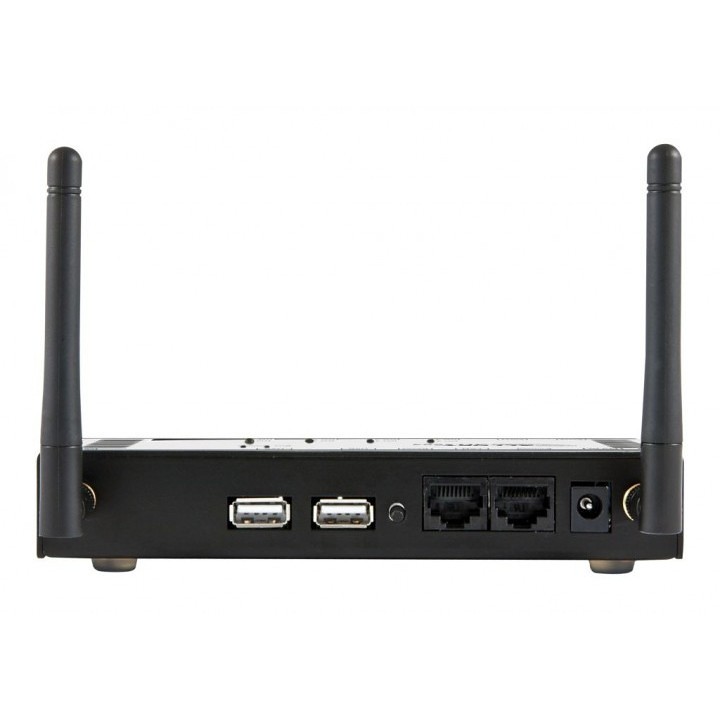

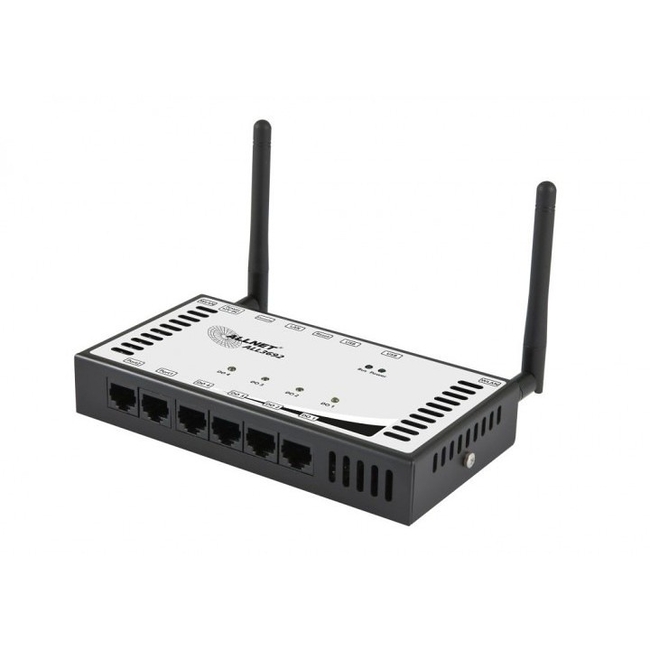

The ALLNET MSR Powermeter Zentrale ALL3692 is an advanced device designed for comprehensive power monitoring and control in IP-based building automation systems. It is specifically tailored for D0 power meters with optical output, ensuring precise readings.
Key Features:
- Power Monitoring: Monitor and control power consumption at multiple points.
- Internet Accessibility: Access your power data from anywhere via the internet.
- Easy Installation: Simple installation via web interface with no need for wiring modifications.
- Integrated Web Server: Provides a user-friendly interface and supports various protocols.
- Email Alerts: Receive notifications when consumption exceeds set limits.
- Extensive Consumption Display: View live charts and download data in CSV format.
- Additional Sensor Ports: Measure temperature, air pressure, and brightness with built-in sensor ports.
This device is perfect for users seeking effective energy management solutions in modern buildings.
-
D0 Ports4x D0 ports
-
Sensor Ports2x I2C sensor ports, 2x external USB ports
-
Network Interface1x RJ45 10/100Mbps Ethernet port, 1x 2.4 GHz Wireless N interface
-
System Console Port1x RS232 system console port
-
Internal Memory4GB USB Flash memory
-
Power Input100~240 V AC, 50/60 Hz
-
Power ConsumptionLess than 3 watts
-
CaseAluminum case with mounting bracket
-
Operating Temperature5 ~ 40 °C
-
Operating Humidity10% ~ 85%
-
Storage Temperature-20 ~ 60 °C
-
Storage Humidity5% ~ 95%
-
CertificationsCE and RoHS compliant
-
Dimensions155 x 28 x 26 mm
-
Weight260 grams
-
Warranty36 months
Ratings
Description
The ALLNET MSR Powermeter Zentrale ALL3692 is an advanced device designed for comprehensive power monitoring and control in IP-based building automation systems. It is specifically tailored for D0 power meters with optical output, ensuring precise readings.
Key Features:
- Power Monitoring: Monitor and control power consumption at multiple points.
- Internet Accessibility: Access your power data from anywhere via the internet.
- Easy Installation: Simple installation via web interface with no need for wiring modifications.
- Integrated Web Server: Provides a user-friendly interface and supports various protocols.
- Email Alerts: Receive notifications when consumption exceeds set limits.
- Extensive Consumption Display: View live charts and download data in CSV format.
- Additional Sensor Ports: Measure temperature, air pressure, and brightness with built-in sensor ports.
This device is perfect for users seeking effective energy management solutions in modern buildings.
Technical Specifications
-
D0 Ports4x D0 ports
-
Sensor Ports2x I2C sensor ports, 2x external USB ports
-
Network Interface1x RJ45 10/100Mbps Ethernet port, 1x 2.4 GHz Wireless N interface
-
System Console Port1x RS232 system console port
-
Internal Memory4GB USB Flash memory
-
Power Input100~240 V AC, 50/60 Hz
-
Power ConsumptionLess than 3 watts
-
CaseAluminum case with mounting bracket
-
Operating Temperature5 ~ 40 °C
-
Operating Humidity10% ~ 85%
-
Storage Temperature-20 ~ 60 °C
-
Storage Humidity5% ~ 95%
-
CertificationsCE and RoHS compliant
-
Dimensions155 x 28 x 26 mm
-
Weight260 grams
-
Warranty36 months
