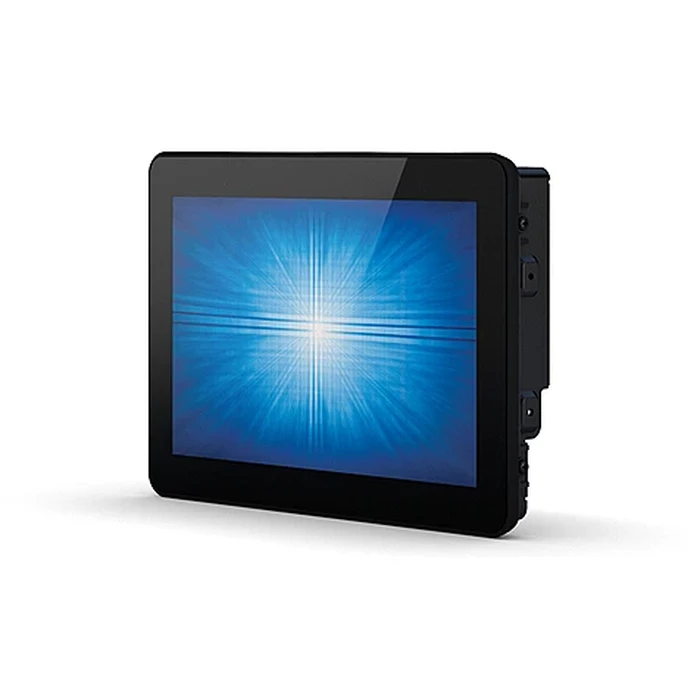

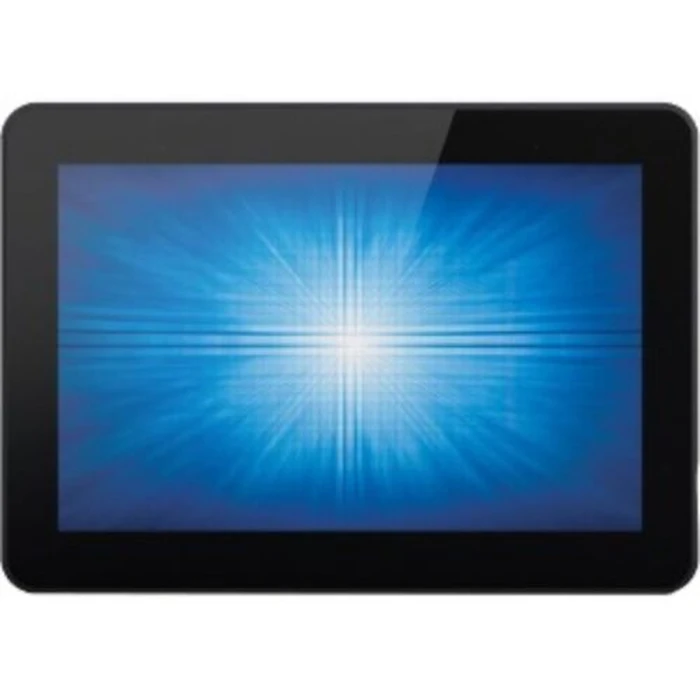

POS Monitor ELO 1093L 10.1IN LCD VGA 10TOUCH

Technical Specifications

• Touchscreen Type
  TouchPro Projected Capacitive
• Touchscreen
  Yes
• Multi-touch Screen
  Yes
• Certifications & Standards
  Australia RCM Canada cUL IC China CCC Europe CE TUV Japan VCCI Korea KCC Mexico CoC Taiwan BSMI United States UL FCC International CB RoHS China RoHS WEEE
• Environmentally Friendly
  Yes
• TAA Compliant
  No
• Mean Time Between Failures (MTBF)
  5.7 Year
• USB
  Yes
• HDMI
  Yes
• HDMI Version
  1.3
• VGA
  Yes
• DisplayPort
  Yes
• USB Standard
  USB 2.0
• DisplayPort Version
  1.1a
• Aspect Ratio
  16:10
• Response Time
  25 ms
• Features
  On-screen Display (OSD)
• Mount Type
  Flush Mount
• Viewable Screen Size
  25.7 cm (10.1")
• Screen Mode
  WXGA
• Horizontal Viewing Angle
  170°
• Vertical Viewing Angle
  170°
• Backlight Technology
  LED
• Panel Technology
  Thin Film Transistor (TFT)
• Horizontal Frequency
  30 kHz to 60 kHz
• Curved Screen
  No
• Vertical Frequency
  50 Hz to 75 Hz
• Screen Size Class
  254 mm
• Weight (Approximate)
  1.20 kg
• Height
  178.6 mm
• Width
  255.8 mm
• Depth
  36.8 mm
• VESA Mount Compatible
  Yes
• VESA Mount Standard
  75 x 75
• Product Color
  Black
• Product Type
  Open-frame LCD Touchscreen Monitor
• Manufacturer Part Number
  E321195
• Manufacturer Website Address
  http://www.elotouch.com
• Packaged Quantity
  1
• Manufacturer
  Elo Touch Solutions, Inc
• Product Model
  1093L
• Product Name
  1093L 10.1" Open Frame Touchscreen (RevB)
• Brand Name
  Elo
• Input Voltage
  12 V DC 230 V AC
• Operating Power Consumption
  25 W
• Standby Power Consumption
  700 mW
• Off-Mode Power Consumption
  500 mW
• Energy Consumption per Year
  10 kWh
• Contrast Ratio
  800:01:00
• Brightness
  350 cd/m² 315 cd/m²
• Color Supported
  262,000 Colors
• Maximum Resolution
  1280 x 800
• Standard Refresh Rate
  75 Hz
