The Portkeys LH7P (White, MPN LH7P-W, EAN 9331924811221, SKU 862255) is a 7-inch on-camera / field touchscreen monitor featuring a 1920×1080 10-bit (8+2 FRC) panel, 1,000 nits daylight‑viewable brightness and HDMI input/output with 4K passthrough (DCI 4K24 / UHD 4K30). It includes image assist...
More
Portkeys LH7P 7 Inch White Touchscreen Monitor
Product Code: 1116693351
Upon Order
534,64 €
or
16,70€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1604 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Portkeys LH7P (White, MPN LH7P-W, EAN 9331924811221, SKU 862255) is a 7-inch on-camera / field touchscreen monitor featuring a 1920×1080 10-bit (8+2 FRC) panel, 1,000 nits daylight‑viewable brightness and HDMI input/output with 4K passthrough (DCI 4K24 / UHD 4K30). It includes image assist tools (waveform, vectorscope, peaking, ARRI false color, false color, zebra, histogram, audio meters), 3D LUT support, de‑squeeze/anamorphic modes, custom image freeze/crop, and four user-assignable function buttons. The LH7P offers built‑in wireless camera control for compatible Sony and Blackmagic cameras (2.4 GHz pairing recommended), accepts Sony NP‑F style batteries and 7–24V DC input, draws about 9W, and weighs ~245 g (compact housing in polycarbonate/ABS).
-
BrandPortkeys
-
ModelLH7P (White, MPN LH7P-W)
-
SKU862255
-
EAN9331924811221
-
Product Type7-inch on-camera / field monitor (touchscreen)
-
Screen Size7 inches
-
Panel Type10-bit (8+2 FRC)
-
Resolution1920 × 1080 (Full HD)
-
Brightness1,000 nits (daylight-viewable)
-
Contrast Ratio1000:1
-
HDR SupportHDR / HLG support
-
Video I/OHDMI input and HDMI output (HDMI-only video I/O)
-
4K SupportDCI 4K24 / UHD 4K30 passthrough; 4K oversampling to 1080p
-
Image Assist ToolsWaveform, Vectorscope, Peaking, ARRI False Color, False Color, Zebra, Histogram, Audio Meters
-
LUTs3D LUT support (importable/apply in real time)
-
AnamorphicAnamorphic de-squeeze / correction
-
ControlsTouchscreen + four user-assignable function buttons
-
Wireless Camera ControlBuilt-in wireless module for compatible Sony and Blackmagic cameras (2.4 GHz pairing recommended)
-
Power Input7–24V DC input; Sony NP-F battery plate (built-in)
-
Power DrawApproximately 9 W
-
Battery TypeSony NP-F style batteries supported
-
WeightApproximately 245 g (manufacturer spec)
-
DimensionsApprox. 176 mm × 104 mm × 18.4 mm
-
Body MaterialPolycarbonate and ABS plastic
-
Mounting1/4"-20 mounting points (both sides)
-
PortsHDMI in, HDMI out, 3.5 mm headphone output, USB-A (firmware/utility — per vendor notes)
-
Color / FinishWhite (this SKU); also available in black
-

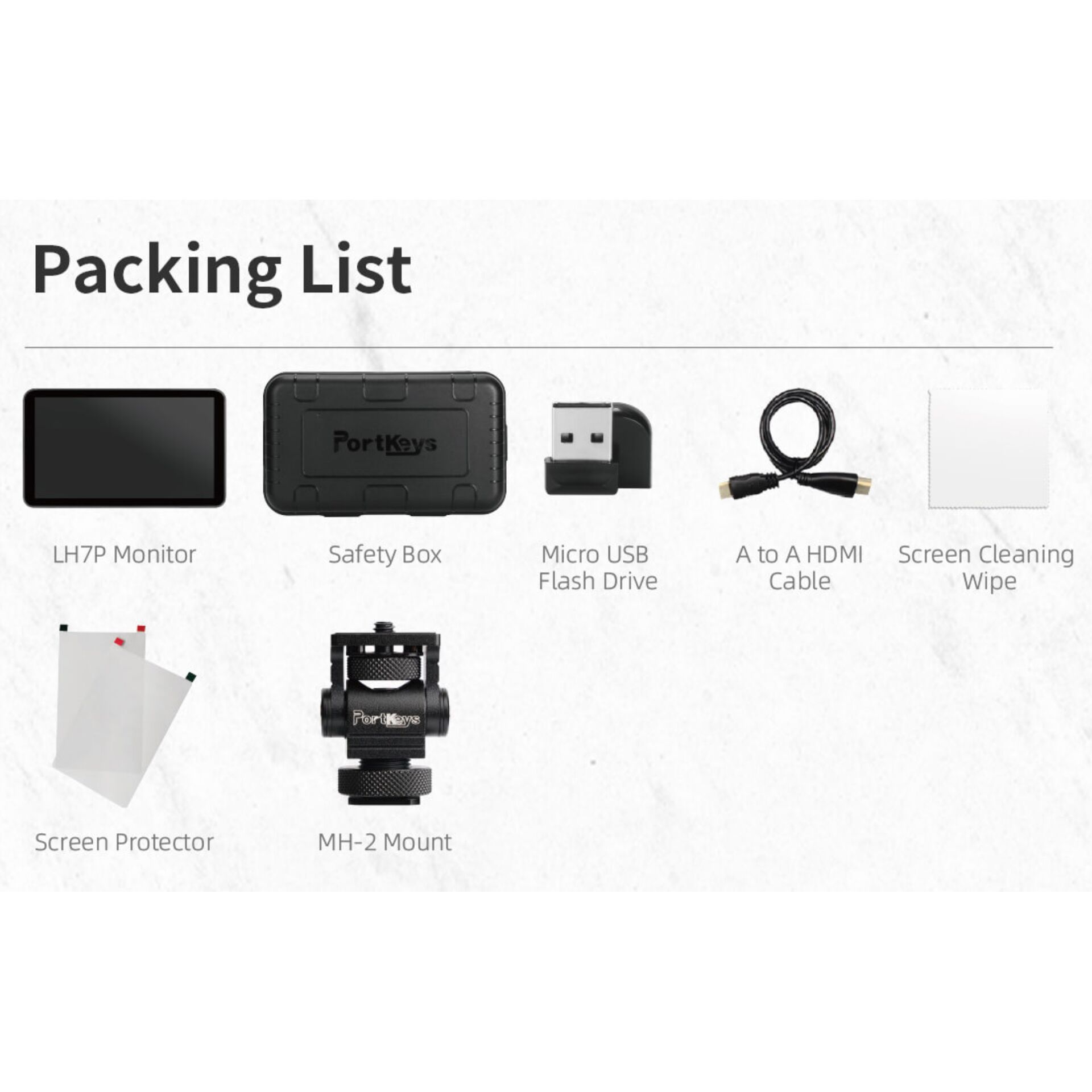

Included AccessoriesNot specified (retail packaging varies)
-
Typical Package Weight~800 g (typical retail box with accessories)
-
Typical Package Dimensions~20 × 12 × 6 cm (typical retail box)
Ratings
Description
The Portkeys LH7P (White, MPN LH7P-W, EAN 9331924811221, SKU 862255) is a 7-inch on-camera / field touchscreen monitor featuring a 1920×1080 10-bit (8+2 FRC) panel, 1,000 nits daylight‑viewable brightness and HDMI input/output with 4K passthrough (DCI 4K24 / UHD 4K30). It includes image assist tools (waveform, vectorscope, peaking, ARRI false color, false color, zebra, histogram, audio meters), 3D LUT support, de‑squeeze/anamorphic modes, custom image freeze/crop, and four user-assignable function buttons. The LH7P offers built‑in wireless camera control for compatible Sony and Blackmagic cameras (2.4 GHz pairing recommended), accepts Sony NP‑F style batteries and 7–24V DC input, draws about 9W, and weighs ~245 g (compact housing in polycarbonate/ABS).
Technical Specifications
-
BrandPortkeys
-
ModelLH7P (White, MPN LH7P-W)
-
SKU862255
-
EAN9331924811221
-
Product Type7-inch on-camera / field monitor (touchscreen)
-
Screen Size7 inches
-
Panel Type10-bit (8+2 FRC)
-
Resolution1920 × 1080 (Full HD)
-
Brightness1,000 nits (daylight-viewable)
-
Contrast Ratio1000:1
-
HDR SupportHDR / HLG support
-
Video I/OHDMI input and HDMI output (HDMI-only video I/O)
-
4K SupportDCI 4K24 / UHD 4K30 passthrough; 4K oversampling to 1080p
-
Image Assist ToolsWaveform, Vectorscope, Peaking, ARRI False Color, False Color, Zebra, Histogram, Audio Meters
-
LUTs3D LUT support (importable/apply in real time)
-
AnamorphicAnamorphic de-squeeze / correction
-
ControlsTouchscreen + four user-assignable function buttons
-
Wireless Camera ControlBuilt-in wireless module for compatible Sony and Blackmagic cameras (2.4 GHz pairing recommended)
-
Power Input7–24V DC input; Sony NP-F battery plate (built-in)
-
Power DrawApproximately 9 W
-
Battery TypeSony NP-F style batteries supported
-
WeightApproximately 245 g (manufacturer spec)
-
DimensionsApprox. 176 mm × 104 mm × 18.4 mm
-
Body MaterialPolycarbonate and ABS plastic
-
Mounting1/4"-20 mounting points (both sides)
-
PortsHDMI in, HDMI out, 3.5 mm headphone output, USB-A (firmware/utility — per vendor notes)
-
Color / FinishWhite (this SKU); also available in black
-
Included AccessoriesNot specified (retail packaging varies)
-
Typical Package Weight~800 g (typical retail box with accessories)
-
Typical Package Dimensions~20 × 12 × 6 cm (typical retail box)
