The Portkeys LEYE-SDI is a compact 2.4-inch electronic viewfinder (EVF) combining 4K HDMI and 3G-SDI inputs for mirrorless, DSLR and cinema-camera monitoring. Key hardware: 2.4" 1440×900 LCD (8-bit), HDMI up to UHD 4K30, SDI up to 1080p60, diopter range −3 to +8, LP-E6 battery plate plus 4-pin...
More

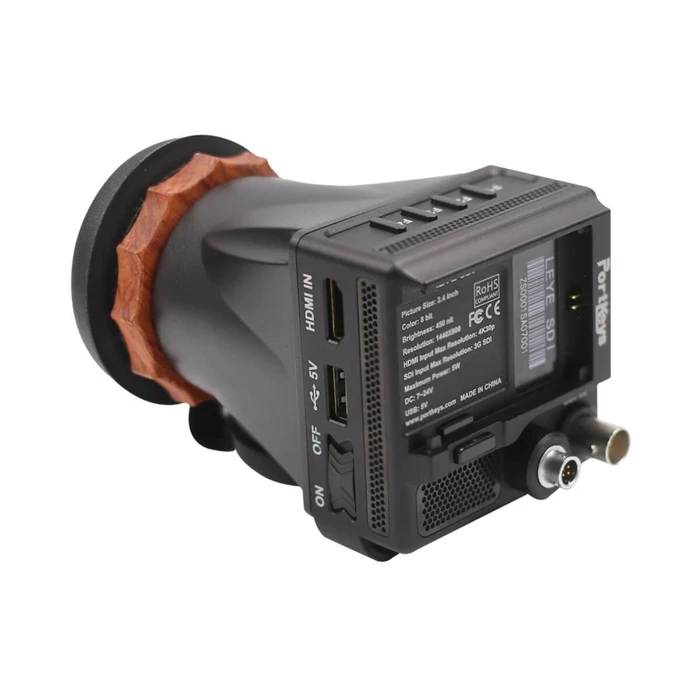

Portkeys LEYE-SDI Electronic Viewfinder SDI (2.4-inch)
Product Code: 1116692964
Upon Order
578,48 €
or
18,06€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1736 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Portkeys LEYE-SDI is a compact 2.4-inch electronic viewfinder (EVF) combining 4K HDMI and 3G-SDI inputs for mirrorless, DSLR and cinema-camera monitoring. Key hardware: 2.4" 1440×900 LCD (8-bit), HDMI up to UHD 4K30, SDI up to 1080p60, diopter range −3 to +8, LP-E6 battery plate plus 4-pin D-Tap (7.4–24V) external power. Monitoring tools include waveform, histogram, vectorscope, peaking, false color, zebra, 3D LUT support (via USB-A), guides, anamorphic tools, underscan, zoom, audio meters and battery voltage check. Rugged housing with round sponge eye mask, multiple 1/4"-20 mounting points, NATO rail and rosette mount. Weight ~265 g; dimensions 125 × 70 × 78 mm. Includes D-Tap cable on some retailer listings; USB-A used for LUTs and firmware updates.
-
BrandPortkeys
-
Model / MPNLEYE-SDI
-
SKU225460
-
EAN / Barcode9331924810057
-
Product typeElectronic viewfinder (EVF) / camera EVF
-
Display size2.4-inch LCD
-
Display resolution1440 × 900
-
Color depth8-bit
-
Brightness450 nits (retailer listings) / 300 nits (one review noted)
-
Contrast ratio1100:1
-
Viewing angle160° H / 160° V
-
Diopter range-3 to +8
-
Video inputs1× 4K HDMI input, 1× 3G-SDI input
-
HDMI maximum supported inputUHD 4K30
-
SDI maximum supported input1080p60 (3G-SDI)
-
Power optionsLP-E6 battery plate + 4-pin aviation / D-Tap external power
-
Power input voltage range7.4V–24V (4-pin D-Tap)
-
Power consumption~5 W reported (Marcotec); up to 6 W on Adorama listing
-
Weight265 g
-
Dimensions125 × 70 × 78 mm
-
Mounting optionsMultiple 1/4"-20 mounting points, NATO rail, rosette mount
-
Included accessoriesD-Tap cable (listed on Marcotec/Adorama), LP-E6 plate (listed variably)
-
ConnectivityUSB-A for loading 3D LUTs and firmware updates
-
Monitoring toolsWaveform, histogram, vectorscope, peaking, false color, zebra, 3D LUT support, guides, anamorphic tools, underscan, zoom, audio meters, battery voltage check, sharpness/brightness/contrast/color controls
-
Housing / physical featuresRugged housing, round sponge eye mask, heat dissipation holes
-
Packaging contents (typical listing)EVF, D-Tap cable, battery plate/manual (varies by retailer)
Ratings
Description
The Portkeys LEYE-SDI is a compact 2.4-inch electronic viewfinder (EVF) combining 4K HDMI and 3G-SDI inputs for mirrorless, DSLR and cinema-camera monitoring. Key hardware: 2.4" 1440×900 LCD (8-bit), HDMI up to UHD 4K30, SDI up to 1080p60, diopter range −3 to +8, LP-E6 battery plate plus 4-pin D-Tap (7.4–24V) external power. Monitoring tools include waveform, histogram, vectorscope, peaking, false color, zebra, 3D LUT support (via USB-A), guides, anamorphic tools, underscan, zoom, audio meters and battery voltage check. Rugged housing with round sponge eye mask, multiple 1/4"-20 mounting points, NATO rail and rosette mount. Weight ~265 g; dimensions 125 × 70 × 78 mm. Includes D-Tap cable on some retailer listings; USB-A used for LUTs and firmware updates.
Technical Specifications
-
BrandPortkeys
-
Model / MPNLEYE-SDI
-
SKU225460
-
EAN / Barcode9331924810057
-
Product typeElectronic viewfinder (EVF) / camera EVF
-
Display size2.4-inch LCD
-
Display resolution1440 × 900
-
Color depth8-bit
-
Brightness450 nits (retailer listings) / 300 nits (one review noted)
-
Contrast ratio1100:1
-
Viewing angle160° H / 160° V
-
Diopter range-3 to +8
-
Video inputs1× 4K HDMI input, 1× 3G-SDI input
-
HDMI maximum supported inputUHD 4K30
-
SDI maximum supported input1080p60 (3G-SDI)
-
Power optionsLP-E6 battery plate + 4-pin aviation / D-Tap external power
-
Power input voltage range7.4V–24V (4-pin D-Tap)
-
Power consumption~5 W reported (Marcotec); up to 6 W on Adorama listing
-
Weight265 g
-
Dimensions125 × 70 × 78 mm
-
Mounting optionsMultiple 1/4"-20 mounting points, NATO rail, rosette mount
-
Included accessoriesD-Tap cable (listed on Marcotec/Adorama), LP-E6 plate (listed variably)
-
ConnectivityUSB-A for loading 3D LUTs and firmware updates
-
Monitoring toolsWaveform, histogram, vectorscope, peaking, false color, zebra, 3D LUT support, guides, anamorphic tools, underscan, zoom, audio meters, battery voltage check, sharpness/brightness/contrast/color controls
-
Housing / physical featuresRugged housing, round sponge eye mask, heat dissipation holes
-
Packaging contents (typical listing)EVF, D-Tap cable, battery plate/manual (varies by retailer)
