The Portkeys HD7T is a compact, 7-inch on‑camera touchscreen monitor (1280×800, IPS) offering 1000 nits brightness and REC.709 color. It supports HDMI input up to 4K30p (UHD/DCI), includes AV IN, an NP‑F battery plate, DC 7–20V input, USB LUT loading (up to 20 LUTs), and monitoring tools such as...
More

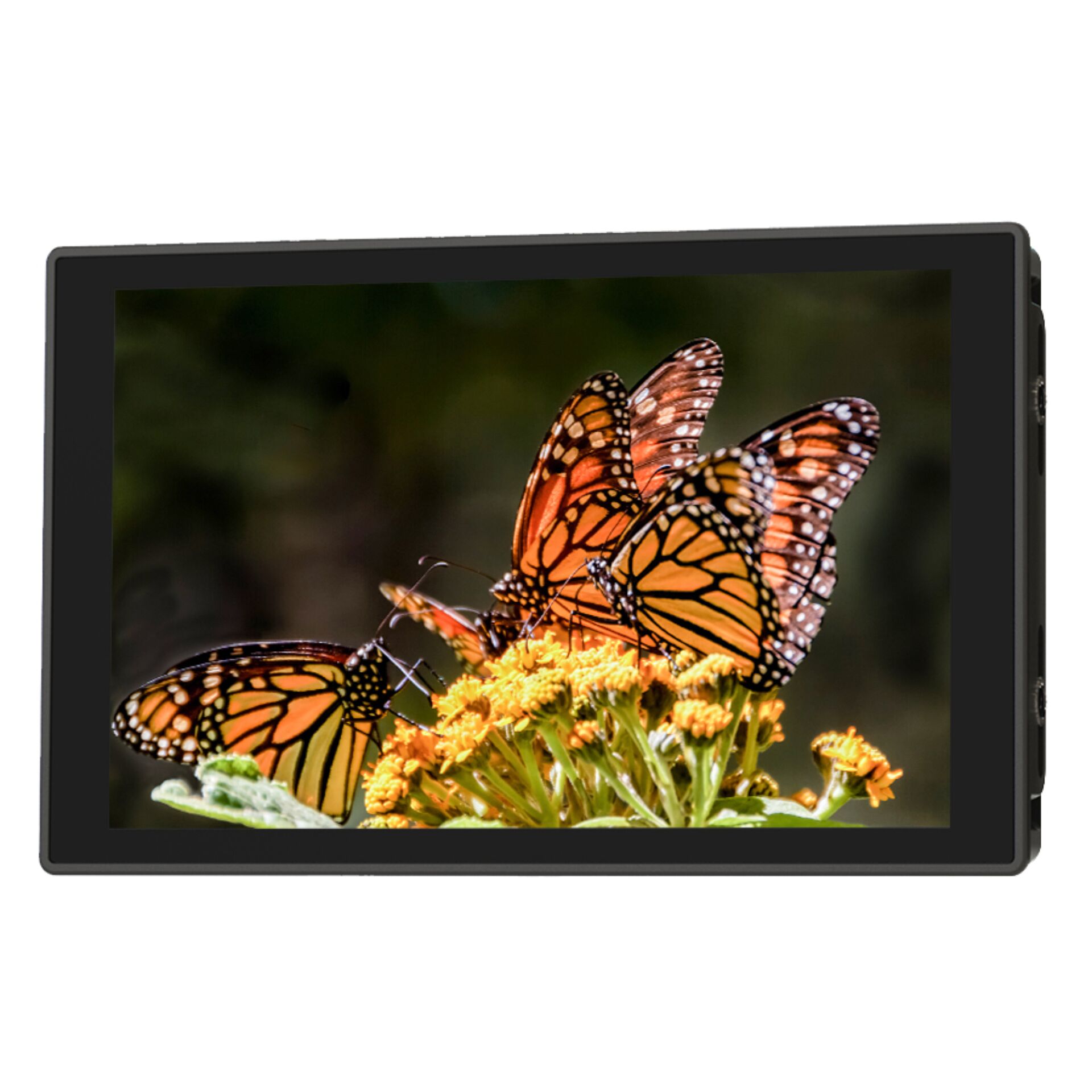

Portkeys HD7T 7-inch Touchscreen On‑Camera Monitor
Product Code: 1116692962
Upon Order
143,54 €
or
4,48€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 431 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Portkeys HD7T is a compact, 7-inch on‑camera touchscreen monitor (1280×800, IPS) offering 1000 nits brightness and REC.709 color. It supports HDMI input up to 4K30p (UHD/DCI), includes AV IN, an NP‑F battery plate, DC 7–20V input, USB LUT loading (up to 20 LUTs), and monitoring tools such as false color, zebra, waveform, vectorscope, peaking and histogram. Lightweight and designed for field/on‑camera use.
-
BrandPortkeys
-
ModelHD7T (PKSCMHD7T)
-
SKU225418
-
EAN9344483705467
-
Category7-inch on‑camera touchscreen monitor
-
Screen Size7 inches
-
Resolution1280 × 800
-
Panel TypeIPS touchscreen (full laminated)
-
Color StandardREC.709
-
Color Depth8‑bit
-
Brightness1000 nits
-
Contrast Ratio1000:1
-
Viewing Angle80°/80°/80°/80°
-
TouchscreenYes (full laminated touchscreen)
-
HDMI InputHDMI in (supports 4K30p, UHD and DCI)
-
HDMI OutputNo HDMI out (HDMI input only)
-
AV InputYes (AV IN)
-
LUT Support3D LUTs via USB drive
-
LUT MemoryUp to 20 replaceable LUT sets
-
Exposure ToolsFalse Color, Zebra
-
Focus AssistPeaking, Zoom-in
-
Framing ToolsRectangle Crop, Grid, Anamorphic de‑squeeze
-
Anamorphic Ratios1.33×, 1.5×, 2.0×, custom 0.25–4.0×
-
Analysis ToolsWaveform, Vectorscope, Audio meters, Histogram
-
Battery MountSony NP‑F battery plate
-
DC Input7V–20V
-
Power Consumption10W (max)
-
Weight245 g
-
Body Thickness20.8 mm
-
Housing MaterialPlastic
-
Dimensions (approx.)7-inch screen; thickness 20.8 mm
-
Accessories (typical)NP‑F plate, USB port for LUTs (box contents vary by retailer)
-
Intended UseOn‑camera/field monitoring for DSLR/mirrorless rigs and lightweight setups
Ratings
Description
The Portkeys HD7T is a compact, 7-inch on‑camera touchscreen monitor (1280×800, IPS) offering 1000 nits brightness and REC.709 color. It supports HDMI input up to 4K30p (UHD/DCI), includes AV IN, an NP‑F battery plate, DC 7–20V input, USB LUT loading (up to 20 LUTs), and monitoring tools such as false color, zebra, waveform, vectorscope, peaking and histogram. Lightweight and designed for field/on‑camera use.
Technical Specifications
-
BrandPortkeys
-
ModelHD7T (PKSCMHD7T)
-
SKU225418
-
EAN9344483705467
-
Category7-inch on‑camera touchscreen monitor
-
Screen Size7 inches
-
Resolution1280 × 800
-
Panel TypeIPS touchscreen (full laminated)
-
Color StandardREC.709
-
Color Depth8‑bit
-
Brightness1000 nits
-
Contrast Ratio1000:1
-
Viewing Angle80°/80°/80°/80°
-
TouchscreenYes (full laminated touchscreen)
-
HDMI InputHDMI in (supports 4K30p, UHD and DCI)
-
HDMI OutputNo HDMI out (HDMI input only)
-
AV InputYes (AV IN)
-
LUT Support3D LUTs via USB drive
-
LUT MemoryUp to 20 replaceable LUT sets
-
Exposure ToolsFalse Color, Zebra
-
Focus AssistPeaking, Zoom-in
-
Framing ToolsRectangle Crop, Grid, Anamorphic de‑squeeze
-
Anamorphic Ratios1.33×, 1.5×, 2.0×, custom 0.25–4.0×
-
Analysis ToolsWaveform, Vectorscope, Audio meters, Histogram
-
Battery MountSony NP‑F battery plate
-
DC Input7V–20V
-
Power Consumption10W (max)
-
Weight245 g
-
Body Thickness20.8 mm
-
Housing MaterialPlastic
-
Dimensions (approx.)7-inch screen; thickness 20.8 mm
-
Accessories (typical)NP‑F plate, USB port for LUTs (box contents vary by retailer)
-
Intended UseOn‑camera/field monitoring for DSLR/mirrorless rigs and lightweight setups
