The Portkeys HD7H is a budget-friendly 7-inch daylight-viewable on-camera HDMI field monitor featuring a 1280×720 8-bit LCD panel and 1,000 nits peak brightness. It accepts HDMI and AV inputs and supports input signals up to DCI 4K 24p and UHD 4K 30p (1080p up to 60p). Monitoring tools include luma...
More

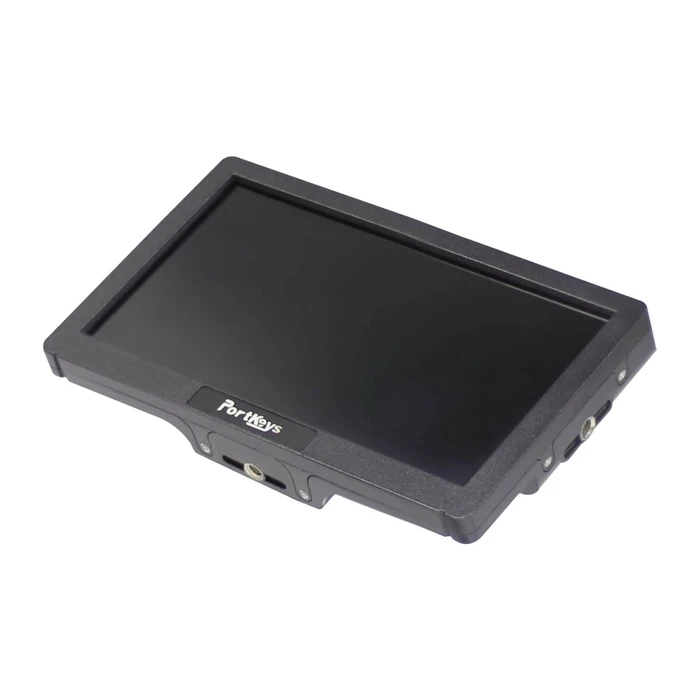

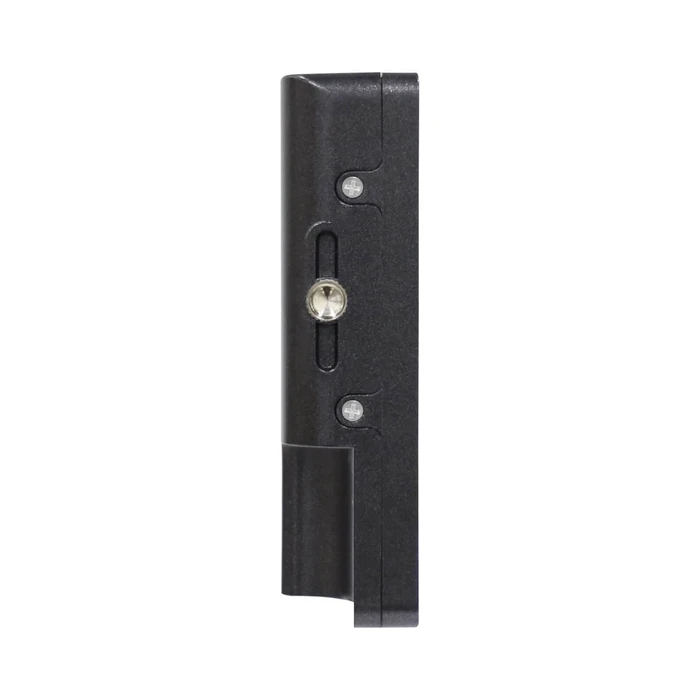

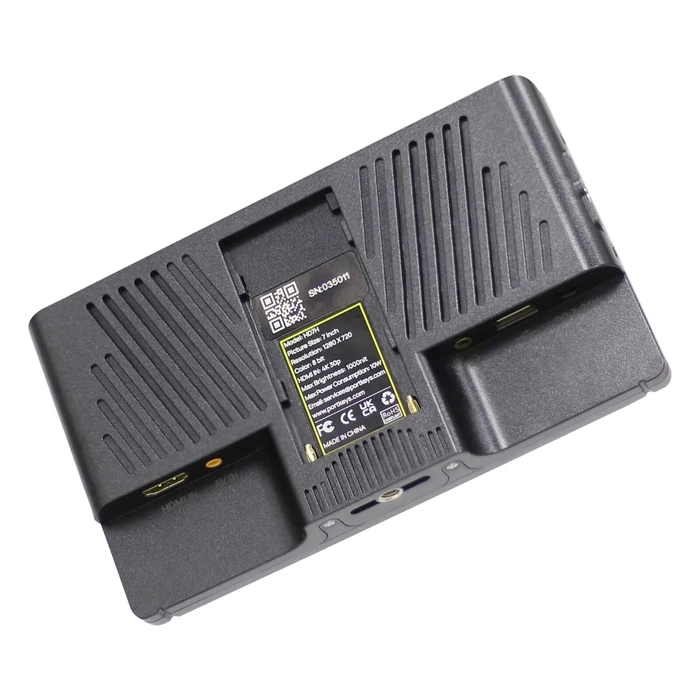

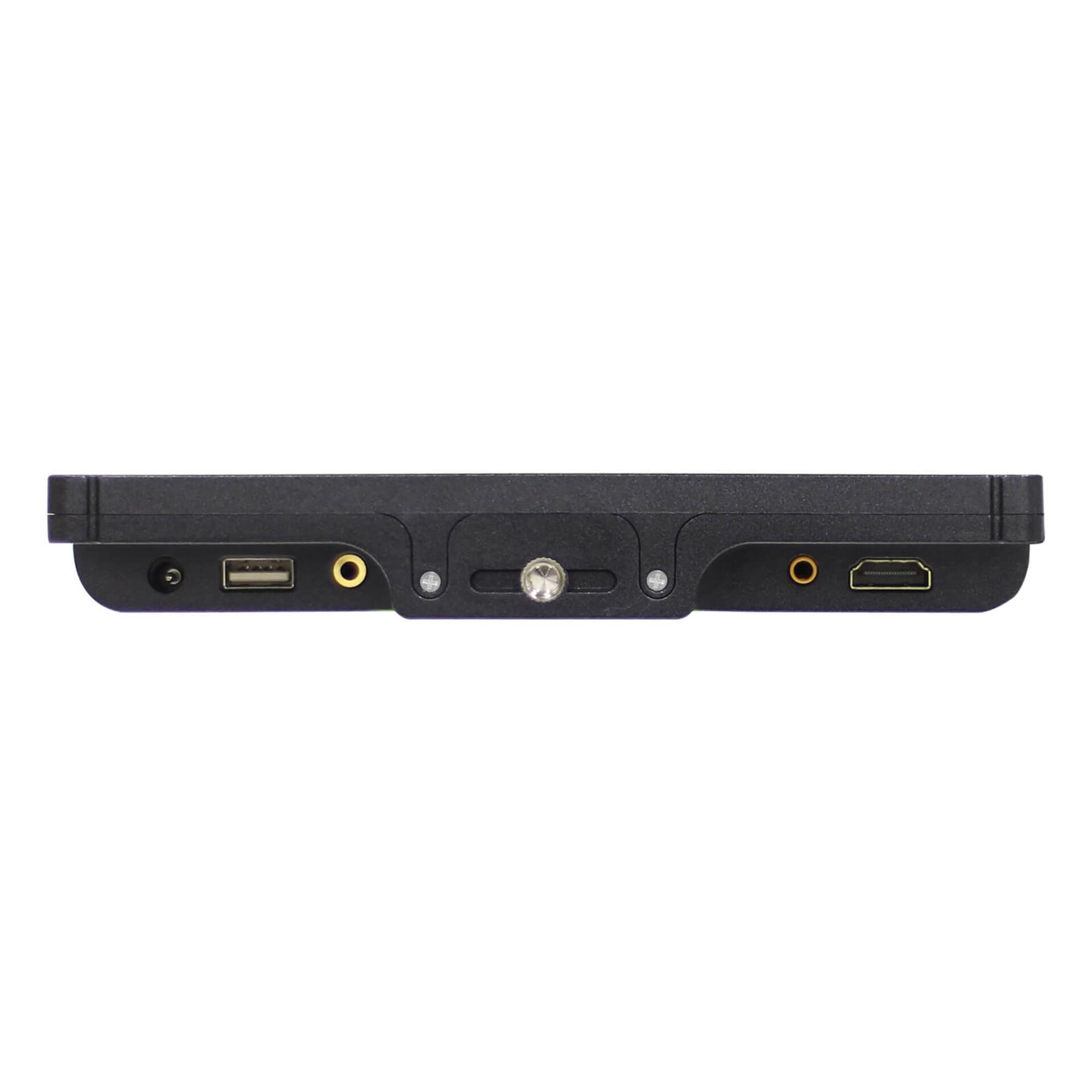

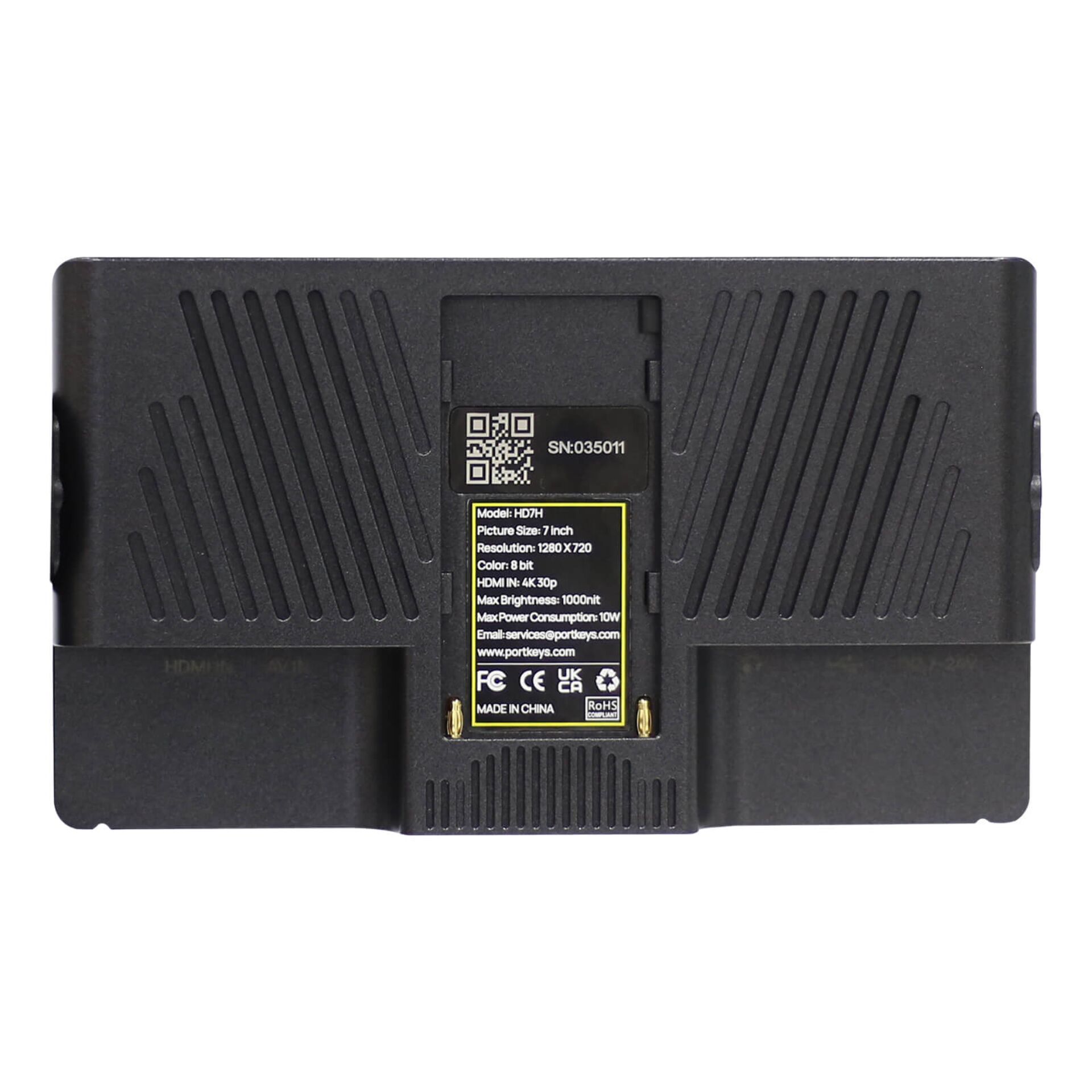

Portkeys HD7H 7-inch On-Camera HDMI Monitor
Product Code: 1116692961
Upon Order
142,91 €
or
4,46€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 429 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Portkeys HD7H is a budget-friendly 7-inch daylight-viewable on-camera HDMI field monitor featuring a 1280×720 8-bit LCD panel and 1,000 nits peak brightness. It accepts HDMI and AV inputs and supports input signals up to DCI 4K 24p and UHD 4K 30p (1080p up to 60p). Monitoring tools include luma histogram, false color, peaking (new algorithm), frame markers and anamorphic de-squeeze options. Power options include Sony NP-F (L-series) batteries or DC 5.5 mm barrel input (7.4V–24V); power draw is ~10W. Weight is 278 g; accessories may include a sunshade, rubber side covers, mount and HDMI/AV cables (kit varies by seller).
-
BrandPortkeys
-
ModelHD7H
-
SKU225404
-
MPNHD7H
-
EAN9331924263471
-
Category7-inch on-camera / field monitor
-
Display Size7 inches
-
Panel Type8-bit LCD panel
-
Resolution1280 × 720 (HD)
-
Aspect Ratio16:9
-
Brightness1,000 nits (cd/m²)
-
Contrast Ratio1000:1
-
Viewing Angle178°
-
Color Coverage~75% Rec.709
-
Screen CoatingFrosted screen with anti-glare coating
-
Video Inputs1 × HDMI input, 1 × AV (composite) input
-
Audio Output1 × 3.5 mm headphone output, built-in loudspeaker
-
Maximum Input SignalDCI 4K 24p; UHD 4K 30p; 1080p up to 60p
-
Monitoring ToolsLuma histogram, False Color, Peaking, Frame markers
-
Focus AssistPeaking (improved/new algorithm)
-
ZoomPicture zoom
-
Anamorphic De-squeeze1.33x, 1.5x, 2.0x and custom (0.25–4.0x)
-
Power OptionsSony NP-F (L-series) battery plate or DC 5.5 mm barrel (7.4V–24V)
-
Battery PlateSony L-series / NP-F style
-
Power Draw~10W
-
Battery Life NoteNP-F750 reported by brand to power up to ~10 hours at lower loads/conditions quoted in reviews
-
Housing MaterialsLightweight ABS and PC (polycarbonate) housing
-
Weight278 g
-
Accessories (typical)Sunshade, side rubber covers, monitor mount, full-size HDMI cable, full-size-to-micro-HDMI cable, AV cable (included items vary by package)
-
DimensionsNot specified by manufacturer (monitor body compact for 7" class)
-
Use CaseOn-camera monitoring, bright-location field monitoring, B-camera or budget rig use
Ratings
Description
The Portkeys HD7H is a budget-friendly 7-inch daylight-viewable on-camera HDMI field monitor featuring a 1280×720 8-bit LCD panel and 1,000 nits peak brightness. It accepts HDMI and AV inputs and supports input signals up to DCI 4K 24p and UHD 4K 30p (1080p up to 60p). Monitoring tools include luma histogram, false color, peaking (new algorithm), frame markers and anamorphic de-squeeze options. Power options include Sony NP-F (L-series) batteries or DC 5.5 mm barrel input (7.4V–24V); power draw is ~10W. Weight is 278 g; accessories may include a sunshade, rubber side covers, mount and HDMI/AV cables (kit varies by seller).
Technical Specifications
-
BrandPortkeys
-
ModelHD7H
-
SKU225404
-
MPNHD7H
-
EAN9331924263471
-
Category7-inch on-camera / field monitor
-
Display Size7 inches
-
Panel Type8-bit LCD panel
-
Resolution1280 × 720 (HD)
-
Aspect Ratio16:9
-
Brightness1,000 nits (cd/m²)
-
Contrast Ratio1000:1
-
Viewing Angle178°
-
Color Coverage~75% Rec.709
-
Screen CoatingFrosted screen with anti-glare coating
-
Video Inputs1 × HDMI input, 1 × AV (composite) input
-
Audio Output1 × 3.5 mm headphone output, built-in loudspeaker
-
Maximum Input SignalDCI 4K 24p; UHD 4K 30p; 1080p up to 60p
-
Monitoring ToolsLuma histogram, False Color, Peaking, Frame markers
-
Focus AssistPeaking (improved/new algorithm)
-
ZoomPicture zoom
-
Anamorphic De-squeeze1.33x, 1.5x, 2.0x and custom (0.25–4.0x)
-
Power OptionsSony NP-F (L-series) battery plate or DC 5.5 mm barrel (7.4V–24V)
-
Battery PlateSony L-series / NP-F style
-
Power Draw~10W
-
Battery Life NoteNP-F750 reported by brand to power up to ~10 hours at lower loads/conditions quoted in reviews
-
Housing MaterialsLightweight ABS and PC (polycarbonate) housing
-
Weight278 g
-
Accessories (typical)Sunshade, side rubber covers, monitor mount, full-size HDMI cable, full-size-to-micro-HDMI cable, AV cable (included items vary by package)
-
DimensionsNot specified by manufacturer (monitor body compact for 7" class)
-
Use CaseOn-camera monitoring, bright-location field monitoring, B-camera or budget rig use
