The Portkeys BM5 IV WR is a professional 5.5-inch (1920×1080) on-camera field monitor with very high daylight-viewable brightness. It offers HDMI (up to 4K DCI 60p) and 3G-SDI (up to 1080p60) inputs/outputs with HDMI/SDI cross-conversion, capacitive touchscreen control, wired and wireless (2.4 GHz)...
More

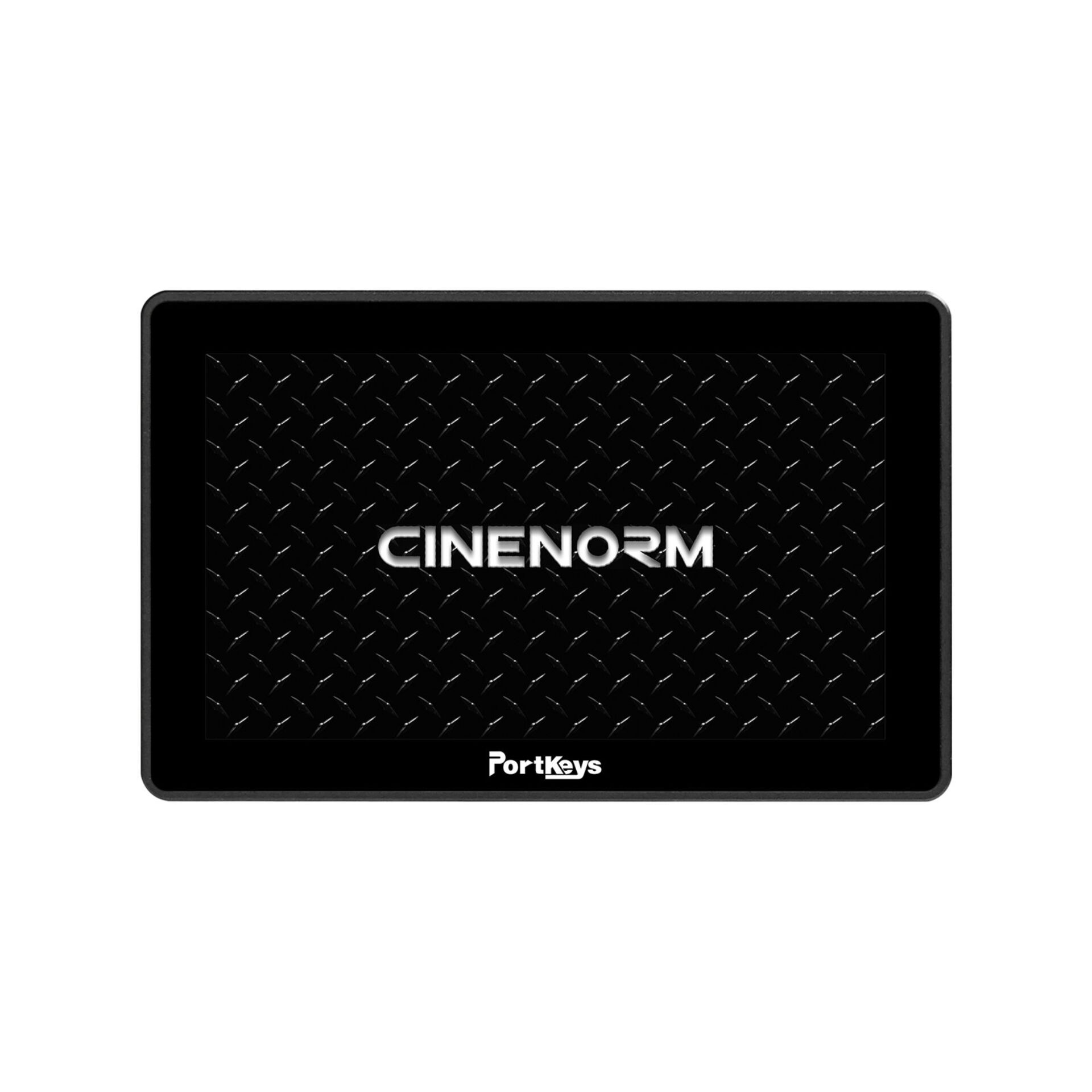

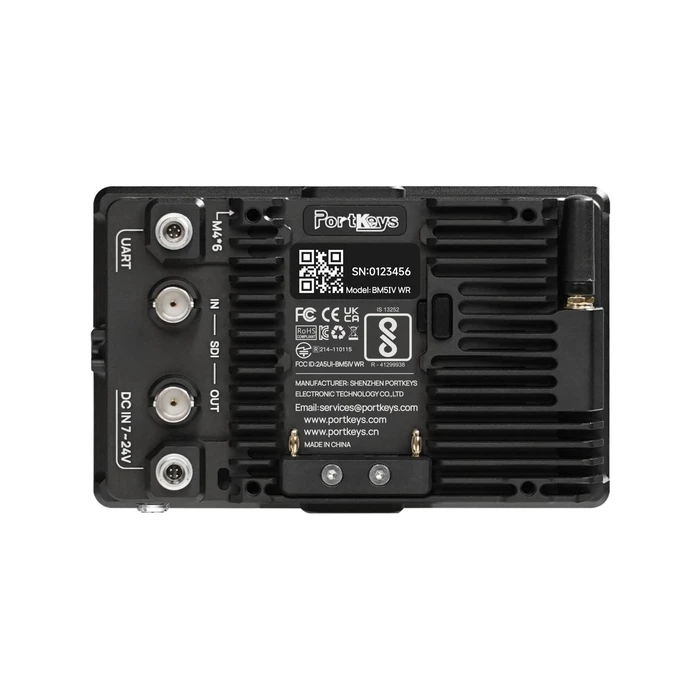

Portkeys BM5 IV WR 5.5-inch On-Camera Field Monitor (Wireless Camera Control)
Product Code: 1116692960
Upon Order
976,38 €
or
30,49€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 2930 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Portkeys BM5 IV WR is a professional 5.5-inch (1920×1080) on-camera field monitor with very high daylight-viewable brightness. It offers HDMI (up to 4K DCI 60p) and 3G-SDI (up to 1080p60) inputs/outputs with HDMI/SDI cross-conversion, capacitive touchscreen control, wired and wireless (2.4 GHz) camera control for multiple camera brands (including RED, Sony, Canon, Panasonic, ARRI, Nikon), and is RED Approved. Monitoring tools include False Color, Zebra, Histogram, Waveform, Vectorscope, Peaking, Image Overlay, Audio Meters and 3D LUT support. Rugged aluminum body with toughened front glass, runs on Sony NP-F style batteries or external DC (4-pin aviation 7.4–24V and 2-pin LEMO). Runs CINENORM OS. Suitable for filmmakers and on-camera monitoring applications.
-
BrandPortkeys
-
ModelBM5 IV WR (BM5IV-WR)
-
SKU225390
-
MPNBM5IV-WR
-
EAN / Barcode9344483701032
-
CategoryOn-camera / Field Monitor / Touchscreen Monitor
-
Display Size5.5 inches
-
Resolution1920 × 1080 (Full HD)
-
Panel10-bit (8+2 FRC)
-
Brightness2000 nits (manufacturer spec for BM5 IV WR)
-
Contrast Ratio1000:1
-
Viewing Angle178°
-
Color CalibrationFactory color calibration; wide color gamut
-
HDMI Input/OutputYes — HDMI up to 4K DCI 60p
-
SDI Input/Output3G-SDI in/out up to 1080p60
-
Cross-conversionHDMI/SDI cross-conversion supported
-
SDI Output OptionsClean feed or with overlays (3D LUT, peaking)
-
Camera Control (Wired)Supported for select RED, Sony, Blackmagic Design, Canon, Panasonic, Z CAM
-
Camera Control (Wireless)Supported over 2.4 GHz for compatible RED, ARRI, Nikon, Sony, Canon, Panasonic
-
RED ApprovedYes — wireless control for RED KOMODO / KOMODO-X / V-RAPTOR
-
TouchscreenCapacitive touch for menu and focus control
-
Lens Motor SupportTilta Nucleus-M compatibility
-
Monitoring ToolsFalse Color, Zebra, Histogram, Waveform, Vectorscope, Peaking, Image Overlay, Image Capture, Audio Meters, 3D LUT support
-
OSCINENORM OS
-
HousingAluminum alloy body (rugged, metal-bodied)
-
Front ProtectionToughened glass
-
Operating ModesPicture-in-picture, dual horizontal/vertical, left/right mixed viewing
-
USBUSB port for firmware updates and loading custom LUTs
-
Power DrawApprox. 17 W
-
DC Input4-pin aviation 7.4V–24V and 2-pin LEMO
-
Battery SupportSony NP-F style batteries
-
Weight~460 grams (monitor body only; estimated)
-
Package Weight~1500 grams (estimated boxed weight)
-
Dimensions (monitor)Not specified by manufacturer
-
Included AccessoriesMay include sun hood, mounting bracket, power cable and manual (varies by retailer)
-
WarrantyManufacturer warranty (region-dependent)
Ratings
Description
The Portkeys BM5 IV WR is a professional 5.5-inch (1920×1080) on-camera field monitor with very high daylight-viewable brightness. It offers HDMI (up to 4K DCI 60p) and 3G-SDI (up to 1080p60) inputs/outputs with HDMI/SDI cross-conversion, capacitive touchscreen control, wired and wireless (2.4 GHz) camera control for multiple camera brands (including RED, Sony, Canon, Panasonic, ARRI, Nikon), and is RED Approved. Monitoring tools include False Color, Zebra, Histogram, Waveform, Vectorscope, Peaking, Image Overlay, Audio Meters and 3D LUT support. Rugged aluminum body with toughened front glass, runs on Sony NP-F style batteries or external DC (4-pin aviation 7.4–24V and 2-pin LEMO). Runs CINENORM OS. Suitable for filmmakers and on-camera monitoring applications.
Technical Specifications
-
BrandPortkeys
-
ModelBM5 IV WR (BM5IV-WR)
-
SKU225390
-
MPNBM5IV-WR
-
EAN / Barcode9344483701032
-
CategoryOn-camera / Field Monitor / Touchscreen Monitor
-
Display Size5.5 inches
-
Resolution1920 × 1080 (Full HD)
-
Panel10-bit (8+2 FRC)
-
Brightness2000 nits (manufacturer spec for BM5 IV WR)
-
Contrast Ratio1000:1
-
Viewing Angle178°
-
Color CalibrationFactory color calibration; wide color gamut
-
HDMI Input/OutputYes — HDMI up to 4K DCI 60p
-
SDI Input/Output3G-SDI in/out up to 1080p60
-
Cross-conversionHDMI/SDI cross-conversion supported
-
SDI Output OptionsClean feed or with overlays (3D LUT, peaking)
-
Camera Control (Wired)Supported for select RED, Sony, Blackmagic Design, Canon, Panasonic, Z CAM
-
Camera Control (Wireless)Supported over 2.4 GHz for compatible RED, ARRI, Nikon, Sony, Canon, Panasonic
-
RED ApprovedYes — wireless control for RED KOMODO / KOMODO-X / V-RAPTOR
-
TouchscreenCapacitive touch for menu and focus control
-
Lens Motor SupportTilta Nucleus-M compatibility
-
Monitoring ToolsFalse Color, Zebra, Histogram, Waveform, Vectorscope, Peaking, Image Overlay, Image Capture, Audio Meters, 3D LUT support
-
OSCINENORM OS
-
HousingAluminum alloy body (rugged, metal-bodied)
-
Front ProtectionToughened glass
-
Operating ModesPicture-in-picture, dual horizontal/vertical, left/right mixed viewing
-
USBUSB port for firmware updates and loading custom LUTs
-
Power DrawApprox. 17 W
-
DC Input4-pin aviation 7.4V–24V and 2-pin LEMO
-
Battery SupportSony NP-F style batteries
-
Weight~460 grams (monitor body only; estimated)
-
Package Weight~1500 grams (estimated boxed weight)
-
Dimensions (monitor)Not specified by manufacturer
-
Included AccessoriesMay include sun hood, mounting bracket, power cable and manual (varies by retailer)
-
WarrantyManufacturer warranty (region-dependent)
