The Portkeys BM5 IV is a 5.5-inch on-camera field monitor featuring a 1920×1080 10-bit (8+2 FRC) touchscreen panel with up to 2000 nits peak brightness and a 1000:1 contrast ratio. It offers HDMI and 3G-SDI input/output, SDI↔HDMI cross-conversion, CINENORM OS touchscreen UI, support for...
More

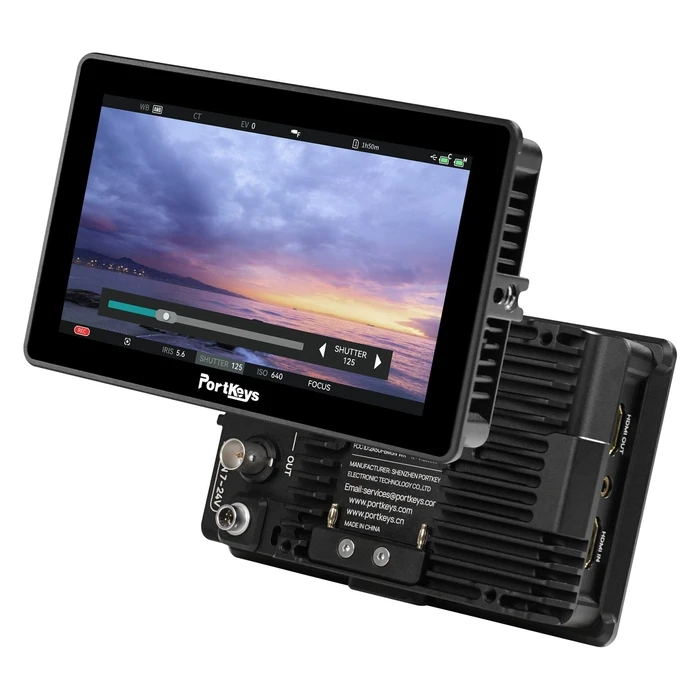

Portkeys BM5 IV 5.5-inch 2000nits SDI/HDMI Touchscreen Field Monitor
Product Code: 1116692959
Upon Order
668,81 €
or
20,89€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 2007 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Portkeys BM5 IV is a 5.5-inch on-camera field monitor featuring a 1920×1080 10-bit (8+2 FRC) touchscreen panel with up to 2000 nits peak brightness and a 1000:1 contrast ratio. It offers HDMI and 3G-SDI input/output, SDI↔HDMI cross-conversion, CINENORM OS touchscreen UI, support for user-loadable 3D LUTs and calibration via an X‑Rite probe, wired and wireless camera control support (Sony, RED, ARRI, Nikon, Blackmagic, etc.), and monitoring tools such as false color, focus peaking, waveform and histogram. Power options include 4-pin aviation 7.4V–24V input and Sony NP-F battery support. The chassis is all-aluminum and built for field use.
-
BrandPortkeys
-
ModelBM5 IV
-
Screen size5.5 inches
-
Resolution1920 × 1080 (FHD)
-
Panel type10-bit (8+2 FRC) touchscreen
-
Brightness2000 nits (peak)
-
Contrast ratio1000:1
-
Viewing angle178°
-
ColorFactory color-calibrated; supports user calibration via X‑Rite probe / calibration LUT workflow
-
OSCINENORM OS (page-based touchscreen UI)
-
InputsHDMI (including DCI 4K60 coverage in family), 3G-SDI
-
OutputsHDMI, 3G-SDI
-
Signal cross-conversionSDI ↔ HDMI
-
Camera controlWired and wireless camera control support for Sony, RED, ARRI, Nikon, Blackmagic Design, and others (model/firmware dependent)
-
Focus featuresTouch focus, focus peaking
-
Exposure/monitoring toolsFalse color, zebras, histogram, waveform, RGB parade, peaking
-
LUTsUser-loadable 3D LUTs via USB; SDI 3D LUT output supported
-
HDR supportHLG (HDR monitoring modes supported)
-
Power input4-pin aviation 7.4V–24V
-
Battery supportSony NP-F style battery (rear-mounted) supported
-
Power consumptionApproximately 16W (typical peak reported)
-
Body materialAll-aluminum chassis / rugged design
-
WeightNot specified
-
DimensionsNot specified
-
Accessories includedVaries by retailer (typical items may include HDMI cable, power cable/adapter, sunhood, mounting hardware)
Ratings
Description
The Portkeys BM5 IV is a 5.5-inch on-camera field monitor featuring a 1920×1080 10-bit (8+2 FRC) touchscreen panel with up to 2000 nits peak brightness and a 1000:1 contrast ratio. It offers HDMI and 3G-SDI input/output, SDI↔HDMI cross-conversion, CINENORM OS touchscreen UI, support for user-loadable 3D LUTs and calibration via an X‑Rite probe, wired and wireless camera control support (Sony, RED, ARRI, Nikon, Blackmagic, etc.), and monitoring tools such as false color, focus peaking, waveform and histogram. Power options include 4-pin aviation 7.4V–24V input and Sony NP-F battery support. The chassis is all-aluminum and built for field use.
Technical Specifications
-
BrandPortkeys
-
ModelBM5 IV
-
Screen size5.5 inches
-
Resolution1920 × 1080 (FHD)
-
Panel type10-bit (8+2 FRC) touchscreen
-
Brightness2000 nits (peak)
-
Contrast ratio1000:1
-
Viewing angle178°
-
ColorFactory color-calibrated; supports user calibration via X‑Rite probe / calibration LUT workflow
-
OSCINENORM OS (page-based touchscreen UI)
-
InputsHDMI (including DCI 4K60 coverage in family), 3G-SDI
-
OutputsHDMI, 3G-SDI
-
Signal cross-conversionSDI ↔ HDMI
-
Camera controlWired and wireless camera control support for Sony, RED, ARRI, Nikon, Blackmagic Design, and others (model/firmware dependent)
-
Focus featuresTouch focus, focus peaking
-
Exposure/monitoring toolsFalse color, zebras, histogram, waveform, RGB parade, peaking
-
LUTsUser-loadable 3D LUTs via USB; SDI 3D LUT output supported
-
HDR supportHLG (HDR monitoring modes supported)
-
Power input4-pin aviation 7.4V–24V
-
Battery supportSony NP-F style battery (rear-mounted) supported
-
Power consumptionApproximately 16W (typical peak reported)
-
Body materialAll-aluminum chassis / rugged design
-
WeightNot specified
-
DimensionsNot specified
-
Accessories includedVaries by retailer (typical items may include HDMI cable, power cable/adapter, sunhood, mounting hardware)
