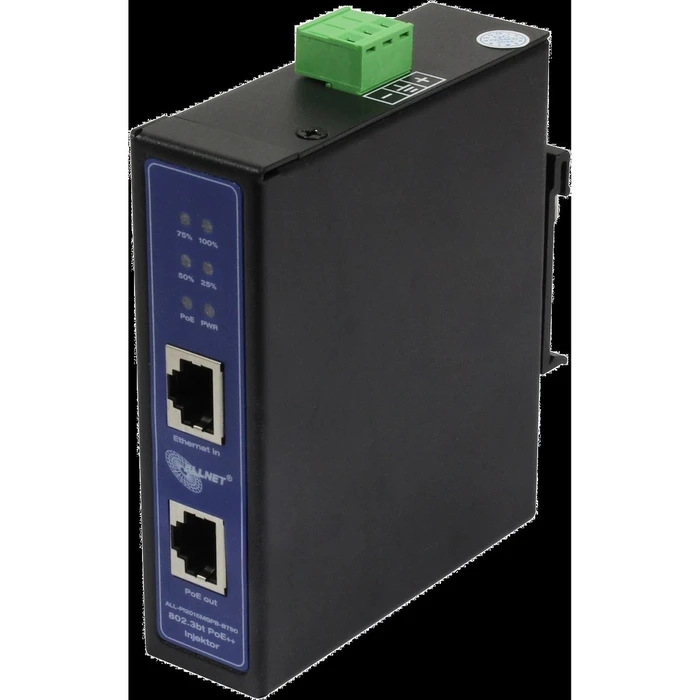

PoE Injektor Allnet Industrial MultiGigabit BT with Power-Booster (15,4W/30W/90W)
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
The ALLNET PoE Injector Industrial MultiGigabit model ALL-PI2015MGPB-BT90 is designed for high-performance and reliability in modern network infrastructure.
It supports the latest IEEE 802.3bt PoE++ standard, allowing for transmission of up to 90 watts of power over Ethernet cables. This makes it ideal for:
- IP cameras
- Wi-Fi access points
- Smart LED lighting systems
Key technical specifications include:
- Ethernet Standards: Compatible with a range of standards including IEEE 802.3 10Base-T to IEEE 802.3an 10GBase-T.
- Power Output: Maximum output of 90 watts, also compatible with lower outputs of 15.4 and 30 watts.
- Power Input: Accepts DC input voltage from 12 to 57 volts.
- Network Cable Compatibility: Supports cables up to 100 meters, compatible with Cat. 3 to Cat. 7.
- Environmental Specifications: Operating temperature of -40°C to +80°C, humidity from 10% to 90%.
Safety features such as surge protection at 6KV, along with protection against over-voltage, under-voltage, and short-circuits, ensure safe operation.
-
ModelALL-PI2015MGPB-BT90
-
PoE StandardIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
-
Power Output90 watts
-
Power Input Voltage12-57 volts DC
-
Max Current Input10 amps
-
Network Cable Length100 meters
-
Environmental Operating Temperature-40 to +80 °C
-
Operating Humidity10-90%
-
Weight Net0.35 kg
-
Weight Gross0.46 kg
-
Protection Features6KV surge protection, Over-Voltage, Under-Voltage, Over-Current, Short-Circuit protection
Ratings
Description
The ALLNET PoE Injector Industrial MultiGigabit model ALL-PI2015MGPB-BT90 is designed for high-performance and reliability in modern network infrastructure.
It supports the latest IEEE 802.3bt PoE++ standard, allowing for transmission of up to 90 watts of power over Ethernet cables. This makes it ideal for:
- IP cameras
- Wi-Fi access points
- Smart LED lighting systems
Key technical specifications include:
- Ethernet Standards: Compatible with a range of standards including IEEE 802.3 10Base-T to IEEE 802.3an 10GBase-T.
- Power Output: Maximum output of 90 watts, also compatible with lower outputs of 15.4 and 30 watts.
- Power Input: Accepts DC input voltage from 12 to 57 volts.
- Network Cable Compatibility: Supports cables up to 100 meters, compatible with Cat. 3 to Cat. 7.
- Environmental Specifications: Operating temperature of -40°C to +80°C, humidity from 10% to 90%.
Safety features such as surge protection at 6KV, along with protection against over-voltage, under-voltage, and short-circuits, ensure safe operation.
Technical Specifications
-
ModelALL-PI2015MGPB-BT90
-
PoE StandardIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
-
Power Output90 watts
-
Power Input Voltage12-57 volts DC
-
Max Current Input10 amps
-
Network Cable Length100 meters
-
Environmental Operating Temperature-40 to +80 °C
-
Operating Humidity10-90%
-
Weight Net0.35 kg
-
Weight Gross0.46 kg
-
Protection Features6KV surge protection, Over-Voltage, Under-Voltage, Over-Current, Short-Circuit protection
