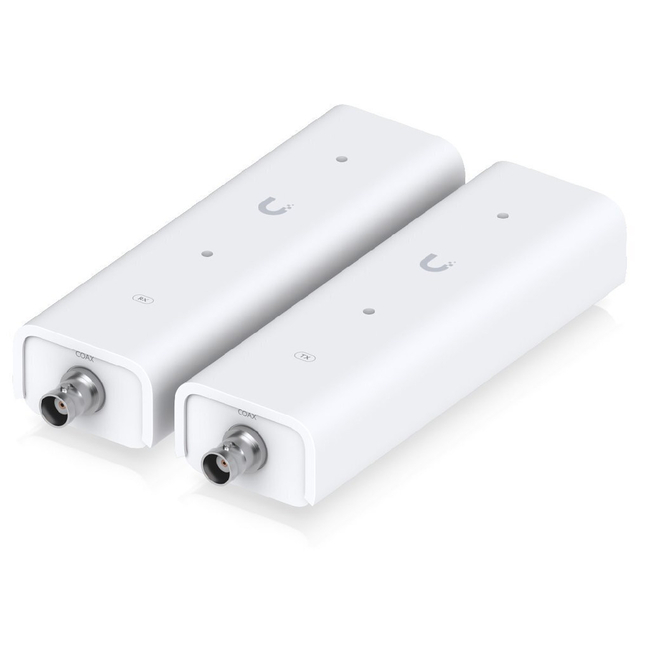

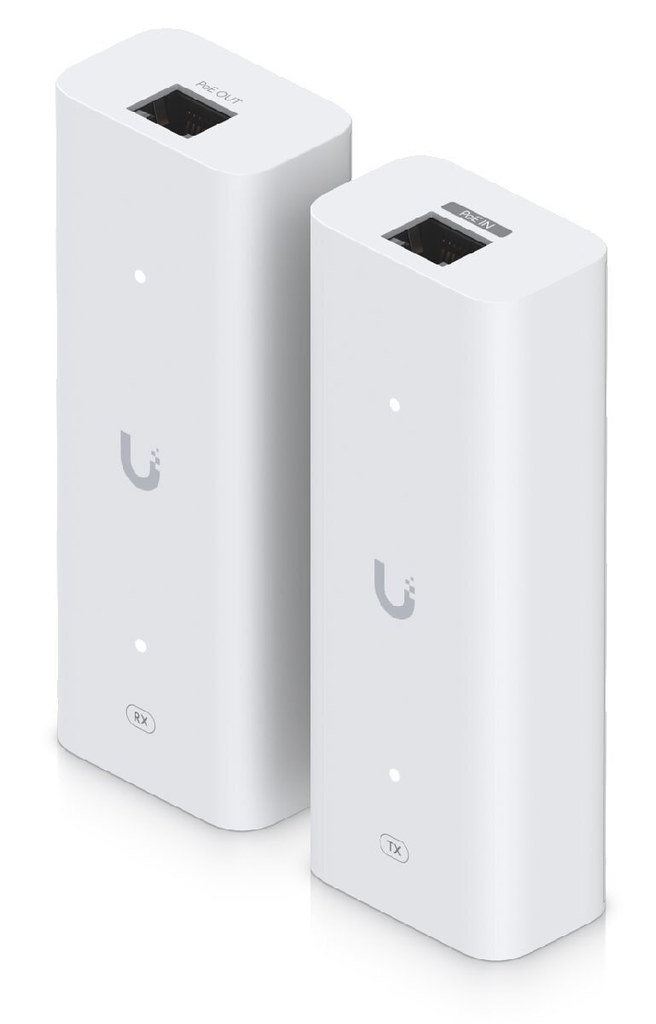

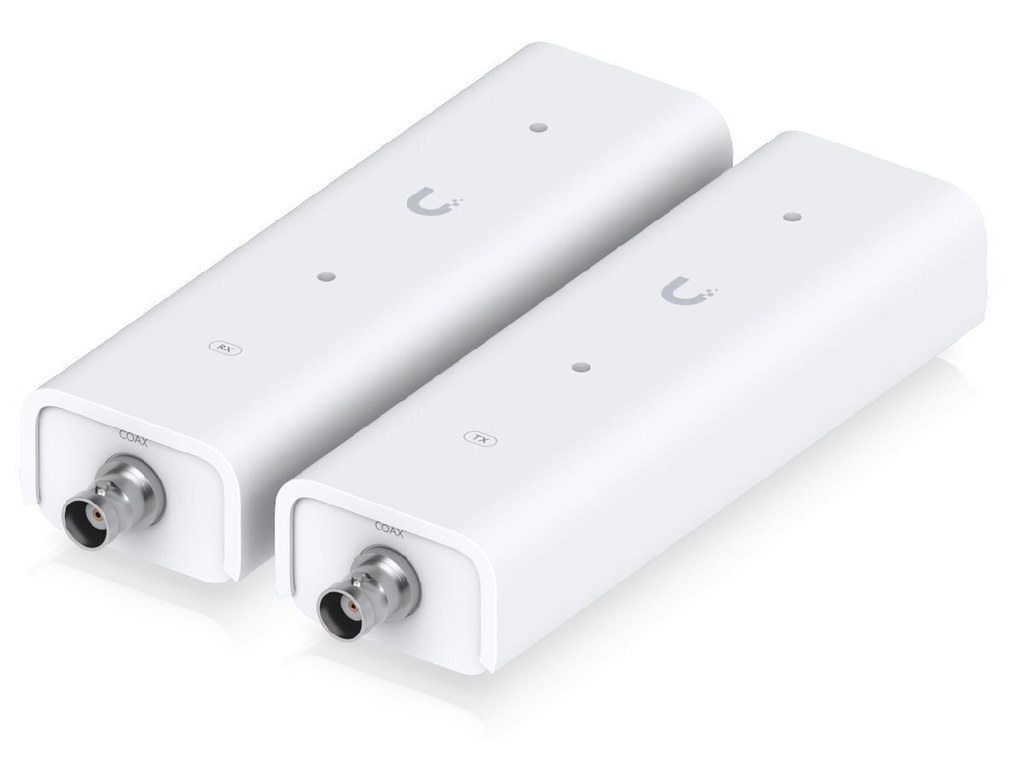

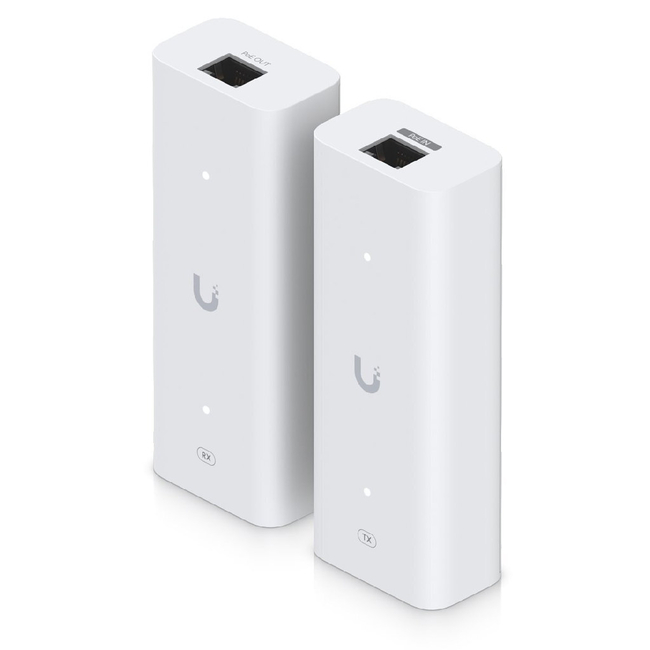

The Ubiquiti PoE Over 2-Wire Retrofit Extender is a unique solution tailored for extending Power over Ethernet (PoE) through existing two-wire or coaxial cabling, primarily targeting retrofit scenarios where rewiring is not feasible.
This system comes with a pair of extenders—a transmitter and a receiver—that effectively convert PoE++ input power and data into a compatible format for transmission over legacy wiring, and then revert back to standard PoE/PoE+ for connected devices.
Key Features:
- Supports up to 100 Mbps data rates.
- Adheres to the 802.3bt PoE++ standard for input.
- Delivers PoE+ output for efficient power supply.
Designed for various cable types including 2-wire twisted-pair and coaxial RG-6, it facilitates seamless installations without the need for expensive rewiring. Its remarkable features make it suitable for a range of applications.
-
Power InputPoE++ at 50 V DC, 1.2 A
-
Power OutputPoE+ at 48 V DC, 0.6 A
-
Max Power Consumption3 W
-
Data Bandwidth100 Mbps
-
Supported Cable Types2-wire (twisted pair), coaxial RG-6
-
Maximum Recommended Cable LengthUp to 450 m
-
Networking InterfaceOne 10/100 Mbps Ethernet port, one Homeplug AV interface
-
PoE input/output unit dimensions40 × 105 × 25 mm
-
Adapter unit dimensions43.5 × 138 × 30 mm
-
Weight PoE in unit77 g
-
Weight PoE out unit79 g
-
Weight adapter140 g
-
Enclosure MaterialDurable polycarbonate
-
Environmental RatingsOperating temperature from -10 to 40 °C, humidity 5–90%
-
Electrostatic Discharge Protection±8 kV air, ±4 kV contact
-
CertificationsCE, FCC, IC
-
LED IndicatorWhite status LED
-
Warranty12 months
Ratings
Description
The Ubiquiti PoE Over 2-Wire Retrofit Extender is a unique solution tailored for extending Power over Ethernet (PoE) through existing two-wire or coaxial cabling, primarily targeting retrofit scenarios where rewiring is not feasible.
This system comes with a pair of extenders—a transmitter and a receiver—that effectively convert PoE++ input power and data into a compatible format for transmission over legacy wiring, and then revert back to standard PoE/PoE+ for connected devices.
Key Features:
- Supports up to 100 Mbps data rates.
- Adheres to the 802.3bt PoE++ standard for input.
- Delivers PoE+ output for efficient power supply.
Designed for various cable types including 2-wire twisted-pair and coaxial RG-6, it facilitates seamless installations without the need for expensive rewiring. Its remarkable features make it suitable for a range of applications.
Technical Specifications
-
Power InputPoE++ at 50 V DC, 1.2 A
-
Power OutputPoE+ at 48 V DC, 0.6 A
-
Max Power Consumption3 W
-
Data Bandwidth100 Mbps
-
Supported Cable Types2-wire (twisted pair), coaxial RG-6
-
Maximum Recommended Cable LengthUp to 450 m
-
Networking InterfaceOne 10/100 Mbps Ethernet port, one Homeplug AV interface
-
PoE input/output unit dimensions40 × 105 × 25 mm
-
Adapter unit dimensions43.5 × 138 × 30 mm
-
Weight PoE in unit77 g
-
Weight PoE out unit79 g
-
Weight adapter140 g
-
Enclosure MaterialDurable polycarbonate
-
Environmental RatingsOperating temperature from -10 to 40 °C, humidity 5–90%
-
Electrostatic Discharge Protection±8 kV air, ±4 kV contact
-
CertificationsCE, FCC, IC
-
LED IndicatorWhite status LED
-
Warranty12 months
