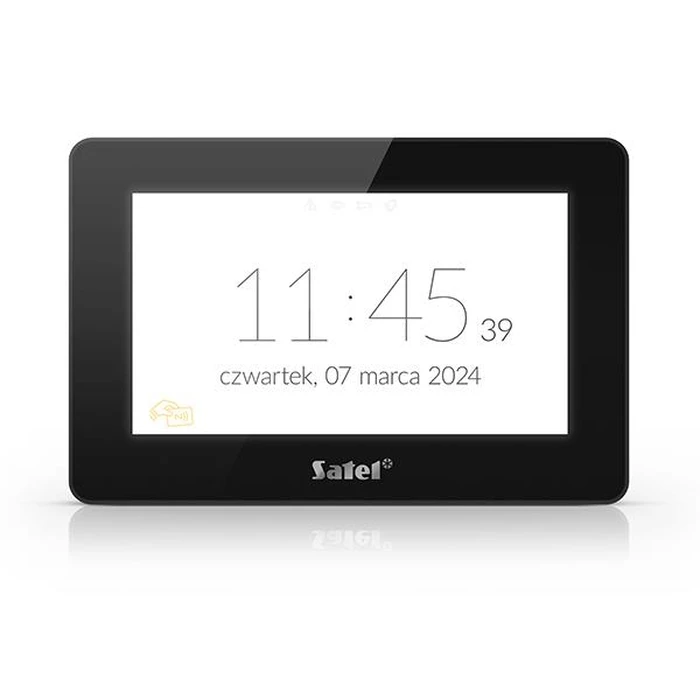

Introducing the KEY PAD TOUCHSCREEN INTEGRA/MIFARE INT TSH2R-B SATEL

The KEYPAD TOUCHSCREEN INTEGRA/MIFARE INT TSH2R-B SATEL is a state-of-the-art 7-inch capacitive glass touchscreen keypad tailored for advanced alarm systems and home automation. This device is an integral part of the INTEGRA, VERSA, and PERFECTA 64 M families, boasting a user-friendly interface that enhances system operation.

Key Features:

• Touchscreen Interface: Featuring a 7-inch capacitive screen with swipe gesture support, the keypad delivers an intuitive user experience with vibrant visuals, thanks to a resolution of 1024x600 and 16.7 million true colors.
• Customizable Interface: Navigate easily through functions without complex key combinations. Users can customize icon appearances to suit their needs.
• Built-in Card Reader: The integrated card reader supports MIFARE® proximity cards, allowing arming of the system via cards instead of passwords.
• Color Depth and Customization: With support for true color, users can personalize the idle display to show a modern clock or a photo slide show using the Picusto app.

Technical Specifications:

• Supply Voltage: 12 V DC ±15%
• Operating Temperature Range: -10°C to +55°C
• Current Consumption:
• Standby: 350 mA
• Maximum: 450 mA
• Memory Card Support: Compatible with microSD and microSDHC cards.

Additional Features: Supporting MAKRO functions, the keypad allows users to execute a series of actions with a single command, simplifying operation even further.

The KEYPAD TOUCHSCREEN INTEGRA/MIFARE INT TSH2R-B SATEL is a perfect blend of simplicity and functionality for advanced alarm systems and home automation.
