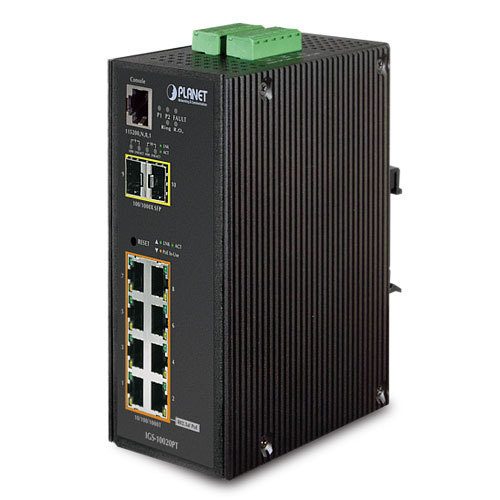

The Planet IGS-10020PT v1 is a managed L2 PoE switch with 8 Gigabit Ethernet 10/100/1000 ports and 2 SFP slots for fiber connectivity. It supports PoE on all 8 copper ports with a total PoE budget of 240 W and maximum power consumption of 255 W. The switch includes web-based management, QoS, VLAN...
More
Planet Managed L2 PoE Switch with 8 Gigabit Ethernet Ports and 2 SFP Ports IGS-10020PT
Product Code: 1200660396
Available in 4 - 10 days
804,59 €
or
25,13€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Planet IGS-10020PT v1 is a managed L2 PoE switch with 8 Gigabit Ethernet 10/100/1000 ports and 2 SFP slots for fiber connectivity. It supports PoE on all 8 copper ports with a total PoE budget of 240 W and maximum power consumption of 255 W. The switch includes web-based management, QoS, VLAN support, ACL, link aggregation, flow control, and jumbo frame support. Security features include SSL/TLS, SSH, and 802.1x RADIUS, while management protocols include SSH, SSL, SNMP, and Telnet. It is built with an aluminum enclosure in white and blue, includes LED indicators, and supports both wall and DIN rail mounting. Designed for professional networking environments, it combines Layer 2 switching features with PoE power delivery and optical uplink flexibility.
-
BrandPlanet
-
ModelIGS-10020PT v1
-
SKUIGS-10020PT
-
EAN4711213689550
-
Switch TypeManaged
-
Switch LevelL3
-
PoE SupportYes
-
PoE Ports8
-
Total PoE Budget240 W
-
Maximum Power Consumption255 W
-
Ethernet Ports8
-
Gigabit Ethernet Ports8
-
RJ-45 Ethernet Ports8
-
RJ-45 Ethernet SpeedGigabit Ethernet (10/100/1000)
-
SFP Ports2
-
Optical ConnectorMiniGBIC
-
Network StandardsIEEE 802.1D, IEEE 802.3z, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.1x, IEEE 802.3bz, IEEE 802.1w, IEEE 802.3af, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1ad
-
Ethernet Technologies10BASE-T, 100BASE-TX, 1000BASE-T
-
Automatic MDI/MDI-XYes
-
Full DuplexYes
-
VLAN SupportYes
-
Number of VLANs255
-
Flow Control SupportYes
-
Port MirroringYes
-
Link AggregationYes
-
QoS SupportYes
-
Access Control List (ACL)Yes
-
Security AlgorithmsSSL/TLS, SSH, 802.1x RADIUS
-
Management ProtocolsSSH, SSL, SNMP, Telnet
-
Web ManagementYes
-
Console PortRJ-45
-
MAC Address Table8000 entries
-
Switching Capacity26 Gbit/s
-
Forwarding Rate14.8 Mpps
-
Store-and-ForwardYes
-
Jumbo Frames SupportYes
-
Multicast SupportNo
-
Management MIB SupportRFC 1213 MIB-II, IF-MIB, MAU-MIB
-
Power Requirement48VDC
-
ColorWhite, Blue
-
Enclosure MaterialAluminum
-
LED IndicatorsYes
-
Wall MountingYes
-

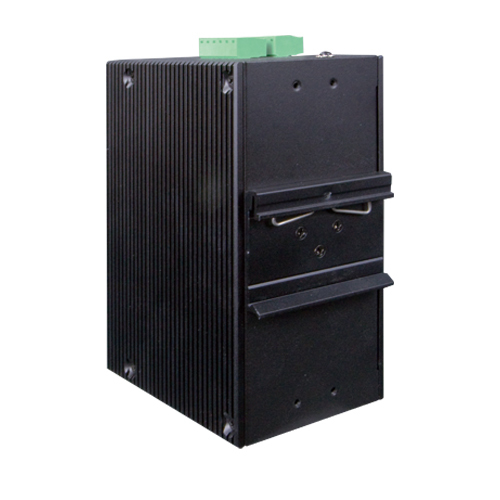

DIN Rail MountingYes
-
Rack MountingNo
-
IP RatingIP30
-
Operating Temperature-40 to 75 °C
-
Storage Temperature-40 to 85 °C
-
Operating Humidity5 - 95%
-
Dimensions (W x D x H)76.8 x 107.3 x 152 mm
-
Weight1.03 kg
Ratings
Description
The Planet IGS-10020PT v1 is a managed L2 PoE switch with 8 Gigabit Ethernet 10/100/1000 ports and 2 SFP slots for fiber connectivity. It supports PoE on all 8 copper ports with a total PoE budget of 240 W and maximum power consumption of 255 W. The switch includes web-based management, QoS, VLAN support, ACL, link aggregation, flow control, and jumbo frame support. Security features include SSL/TLS, SSH, and 802.1x RADIUS, while management protocols include SSH, SSL, SNMP, and Telnet. It is built with an aluminum enclosure in white and blue, includes LED indicators, and supports both wall and DIN rail mounting. Designed for professional networking environments, it combines Layer 2 switching features with PoE power delivery and optical uplink flexibility.
Technical Specifications
-
BrandPlanet
-
ModelIGS-10020PT v1
-
SKUIGS-10020PT
-
EAN4711213689550
-
Switch TypeManaged
-
Switch LevelL3
-
PoE SupportYes
-
PoE Ports8
-
Total PoE Budget240 W
-
Maximum Power Consumption255 W
-
Ethernet Ports8
-
Gigabit Ethernet Ports8
-
RJ-45 Ethernet Ports8
-
RJ-45 Ethernet SpeedGigabit Ethernet (10/100/1000)
-
SFP Ports2
-
Optical ConnectorMiniGBIC
-
Network StandardsIEEE 802.1D, IEEE 802.3z, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.1x, IEEE 802.3bz, IEEE 802.1w, IEEE 802.3af, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1ad
-
Ethernet Technologies10BASE-T, 100BASE-TX, 1000BASE-T
-
Automatic MDI/MDI-XYes
-
Full DuplexYes
-
VLAN SupportYes
-
Number of VLANs255
-
Flow Control SupportYes
-
Port MirroringYes
-
Link AggregationYes
-
QoS SupportYes
-
Access Control List (ACL)Yes
-
Security AlgorithmsSSL/TLS, SSH, 802.1x RADIUS
-
Management ProtocolsSSH, SSL, SNMP, Telnet
-
Web ManagementYes
-
Console PortRJ-45
-
MAC Address Table8000 entries
-
Switching Capacity26 Gbit/s
-
Forwarding Rate14.8 Mpps
-
Store-and-ForwardYes
-
Jumbo Frames SupportYes
-
Multicast SupportNo
-
Management MIB SupportRFC 1213 MIB-II, IF-MIB, MAU-MIB
-
Power Requirement48VDC
-
ColorWhite, Blue
-
Enclosure MaterialAluminum
-
LED IndicatorsYes
-
Wall MountingYes
-
DIN Rail MountingYes
-
Rack MountingNo
-
IP RatingIP30
-
Operating Temperature-40 to 75 °C
-
Storage Temperature-40 to 85 °C
-
Operating Humidity5 - 95%
-
Dimensions (W x D x H)76.8 x 107.3 x 152 mm
-
Weight1.03 kg
