PLANET ISW-621TS15 industrial Fast Ethernet switch featuring 4×10/100Base-TX RJ-45 copper ports and 2×100Base-FX single-mode SC fiber ports (up to 15 km). Rugged IP-30 metal enclosure, DIN-rail or wall mountable, 12–48 V DC dual-redundant power inputs with reverse-polarity protection....
More

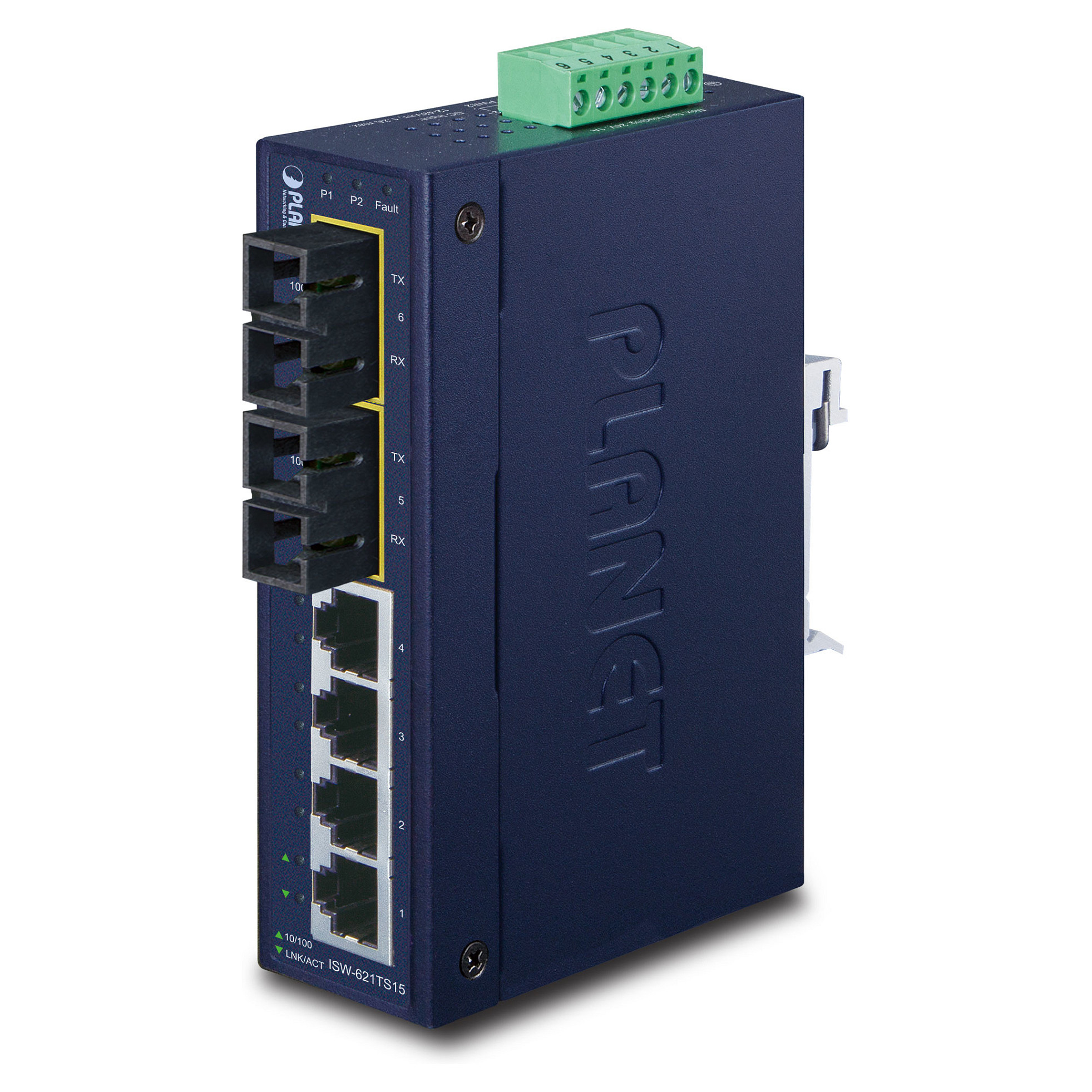

PLANET ISW-621TS15 Industrial 4+2 Port Fast Ethernet Switch (4×10/100Base-TX, 2×100Base-FX SM SC, 15 km)
Product Code: 1173702233
Available in 4 - 6 days
167,24 €
or
5,22€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 502 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
PLANET ISW-621TS15 industrial Fast Ethernet switch featuring 4×10/100Base-TX RJ-45 copper ports and 2×100Base-FX single-mode SC fiber ports (up to 15 km). Rugged IP-30 metal enclosure, DIN-rail or wall mountable, 12–48 V DC dual-redundant power inputs with reverse-polarity protection. Store-and-forward architecture, 1.2 Gbps switch fabric, wire-speed forwarding, 2K MAC table, 1 Mbit frame buffer, broadcast storm control, and flow-control support (back pressure/802.3x). Designed for harsh industrial environments with wide operating temperature range.
-
BrandPLANET Technology
-
ModelISW-621TS15
-
Product typeIndustrial Fast Ethernet Switch
-
Ports (copper)4 × 10/100Base-TX RJ-45
-
Ports (fiber)2 × 100Base-FX SC (single-mode)
-
Fiber distanceUp to 15 km (single-mode, 9/125 µm)
-
Switch fabric1.2 Gbps non-blocking
-
ThroughputWire-speed switching
-
MAC address table2K entries
-
Frame buffer1 Mbit on-chip frame buffer
-
Duplex & negotiationAuto-negotiation; 10/100 Mbps half/full duplex
-
Auto MDI/MDIXSupported on copper ports
-
StandardsIEEE 802.3, IEEE 802.3u
-
ArchitectureStore-and-forward
-
Flow controlBack pressure (half-duplex), IEEE 802.3x pause frame (full-duplex)
-
FilteringRunt/CRC filtering, broadcast storm control
-
CaseIP-30 metal enclosure
-
MountingDIN-rail and wall-mountable
-
Power input12–48 V DC, dual-redundant power inputs, reverse polarity protection
-
Operating temperature-40 °C to 75 °C (industrial spec)
-
Surge & interference toleranceDesigned for industrial electrical environments
-
Dimensions (unit)(manufacturer datasheet partial) ~97 mm × 32 mm (unit excerpt; check datasheet)
-
Product weightApproximately 442 g
-
Package weight (est.)Approximately 700 g
-
Fiber typeSingle-mode 9/125 µm (SC connector)
-
FamilyISW-621 industrial switch family
-
Compliance & featuresStore-and-forward, auto address learning/aging, broadcast storm control
Ratings
Description
PLANET ISW-621TS15 industrial Fast Ethernet switch featuring 4×10/100Base-TX RJ-45 copper ports and 2×100Base-FX single-mode SC fiber ports (up to 15 km). Rugged IP-30 metal enclosure, DIN-rail or wall mountable, 12–48 V DC dual-redundant power inputs with reverse-polarity protection. Store-and-forward architecture, 1.2 Gbps switch fabric, wire-speed forwarding, 2K MAC table, 1 Mbit frame buffer, broadcast storm control, and flow-control support (back pressure/802.3x). Designed for harsh industrial environments with wide operating temperature range.
Technical Specifications
-
BrandPLANET Technology
-
ModelISW-621TS15
-
Product typeIndustrial Fast Ethernet Switch
-
Ports (copper)4 × 10/100Base-TX RJ-45
-
Ports (fiber)2 × 100Base-FX SC (single-mode)
-
Fiber distanceUp to 15 km (single-mode, 9/125 µm)
-
Switch fabric1.2 Gbps non-blocking
-
ThroughputWire-speed switching
-
MAC address table2K entries
-
Frame buffer1 Mbit on-chip frame buffer
-
Duplex & negotiationAuto-negotiation; 10/100 Mbps half/full duplex
-
Auto MDI/MDIXSupported on copper ports
-
StandardsIEEE 802.3, IEEE 802.3u
-
ArchitectureStore-and-forward
-
Flow controlBack pressure (half-duplex), IEEE 802.3x pause frame (full-duplex)
-
FilteringRunt/CRC filtering, broadcast storm control
-
CaseIP-30 metal enclosure
-
MountingDIN-rail and wall-mountable
-
Power input12–48 V DC, dual-redundant power inputs, reverse polarity protection
-
Operating temperature-40 °C to 75 °C (industrial spec)
-
Surge & interference toleranceDesigned for industrial electrical environments
-
Dimensions (unit)(manufacturer datasheet partial) ~97 mm × 32 mm (unit excerpt; check datasheet)
-
Product weightApproximately 442 g
-
Package weight (est.)Approximately 700 g
-
Fiber typeSingle-mode 9/125 µm (SC connector)
-
FamilyISW-621 industrial switch family
-
Compliance & featuresStore-and-forward, auto address learning/aging, broadcast storm control
