The Planet ISW 501T is an unmanaged slim type industrial Fast Ethernet switch with IP30-rated metal housing, designed for harsh environments and reliable Layer 2 network connectivity. It features 5 x 10/100BASE-TX RJ45 ports with auto MDI/MDIX and auto-negotiation, supporting IEEE 802.3 and IEEE...
More

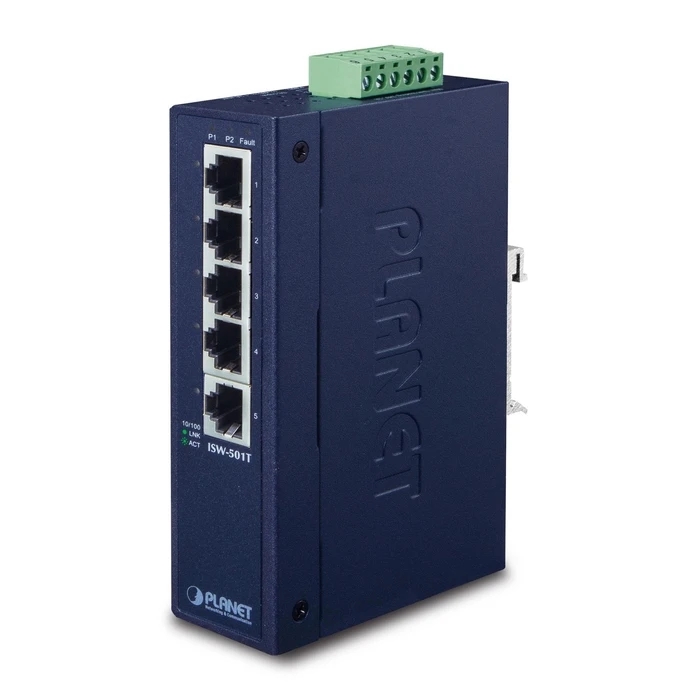

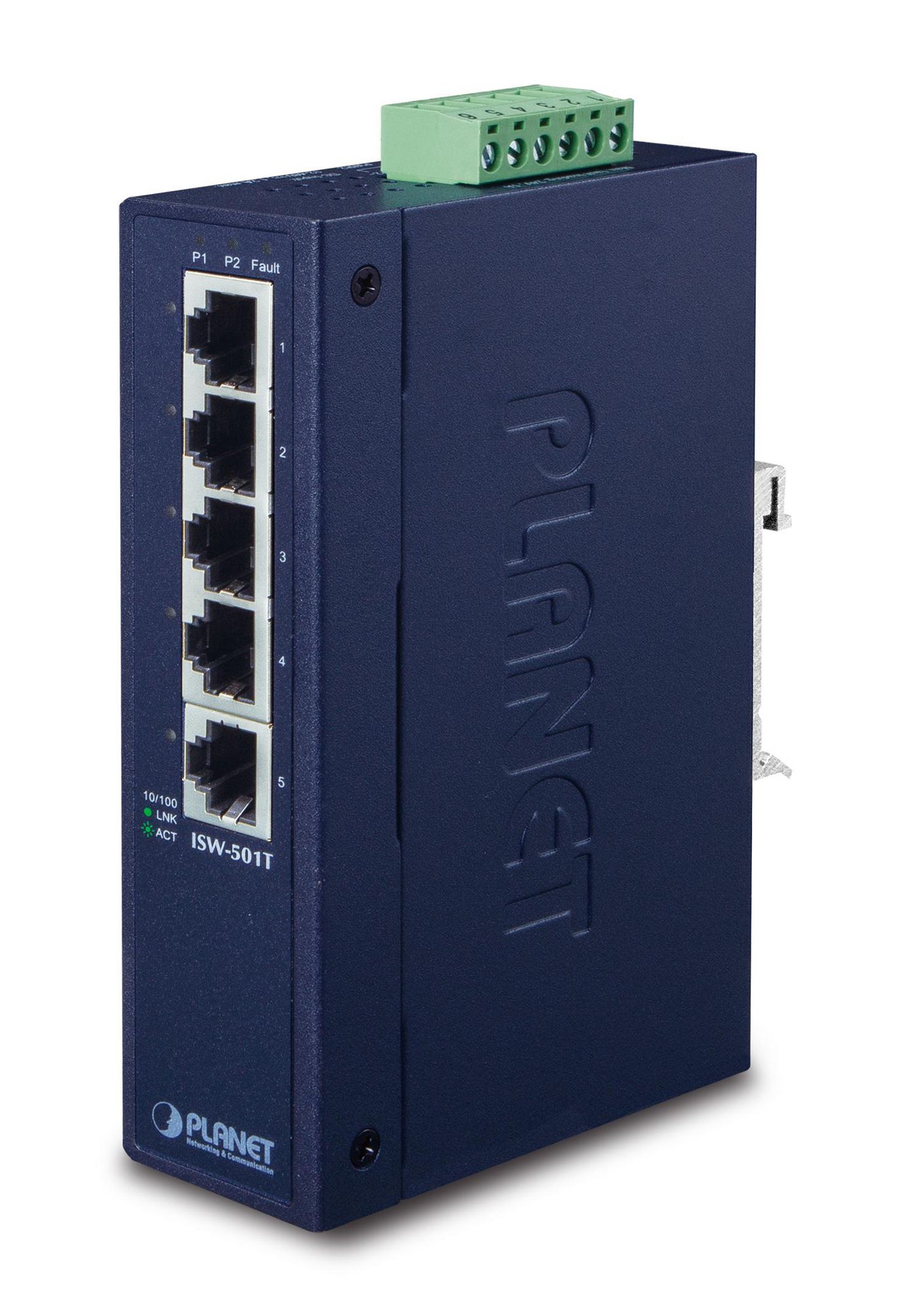

Planet Industrial Fast Ethernet Switch ISW 501T
Product Code: 1200658234
Available in 4 - 10 days
113,25 €
or
3,54€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Planet ISW 501T is an unmanaged slim type industrial Fast Ethernet switch with IP30-rated metal housing, designed for harsh environments and reliable Layer 2 network connectivity. It features 5 x 10/100BASE-TX RJ45 ports with auto MDI/MDIX and auto-negotiation, supporting IEEE 802.3 and IEEE 802.3u standards. The switch uses store-and-forward switching with broadcast storm control, automatic address learning and aging, and flow control for improved packet handling. Built for industrial use, it offers redundant 12 to 48V DC power input with reverse polarity protection, supports a wide operating temperature range from -40°C to 75°C, and includes ESD and EFT protection. Its compact slim enclosure supports DIN-rail and wall mounting, making it suitable for surveillance, factory automation, wireless deployments, and other demanding applications.
-
BrandPlanet
-
ModelISW-501T
-
MPNISW-501T
-
EAN4711213686795
-
Product TypeUnmanaged Industrial Fast Ethernet Switch
-
LayerLayer 2
-
Ports5 x 10/100BASE-TX RJ45 copper ports
-
Auto MDI/MDIXYes
-
Auto NegotiationYes
-
Duplex ModesHalf and full duplex
-
StandardsIEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
-
Switching MethodStore and Forward
-
Flow ControlBack pressure in half-duplex, IEEE 802.3x pause in full-duplex
-
Switch Fabric1 Gbps non-blocking
-
Throughput0.74 Mpps
-
MAC Address Table2K
-
Broadcast Storm ControlYes
-
Power Input12 to 48V DC redundant power input
-
Reverse Polarity ProtectionYes
-
AC Support24V AC supported
-
Power Consumption1.6W typical at full loading
-
Operating Temperature-40°C to 75°C
-
Protection6000V DC Ethernet ESD protection, 6000V DC EFT protection for power line
-
HousingIP30-rated metal case
-
MountingDIN rail and wall mount
-
Dimensions32 x 87 x 135 mm
-
Weight400 g
-
LED Indicators3 system and power LEDs
-
ApplicationIndustrial networking, surveillance, control, wireless, harsh environments
Ratings
Description
The Planet ISW 501T is an unmanaged slim type industrial Fast Ethernet switch with IP30-rated metal housing, designed for harsh environments and reliable Layer 2 network connectivity. It features 5 x 10/100BASE-TX RJ45 ports with auto MDI/MDIX and auto-negotiation, supporting IEEE 802.3 and IEEE 802.3u standards. The switch uses store-and-forward switching with broadcast storm control, automatic address learning and aging, and flow control for improved packet handling. Built for industrial use, it offers redundant 12 to 48V DC power input with reverse polarity protection, supports a wide operating temperature range from -40°C to 75°C, and includes ESD and EFT protection. Its compact slim enclosure supports DIN-rail and wall mounting, making it suitable for surveillance, factory automation, wireless deployments, and other demanding applications.
Technical Specifications
-
BrandPlanet
-
ModelISW-501T
-
MPNISW-501T
-
EAN4711213686795
-
Product TypeUnmanaged Industrial Fast Ethernet Switch
-
LayerLayer 2
-
Ports5 x 10/100BASE-TX RJ45 copper ports
-
Auto MDI/MDIXYes
-
Auto NegotiationYes
-
Duplex ModesHalf and full duplex
-
StandardsIEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
-
Switching MethodStore and Forward
-
Flow ControlBack pressure in half-duplex, IEEE 802.3x pause in full-duplex
-
Switch Fabric1 Gbps non-blocking
-
Throughput0.74 Mpps
-
MAC Address Table2K
-
Broadcast Storm ControlYes
-
Power Input12 to 48V DC redundant power input
-
Reverse Polarity ProtectionYes
-
AC Support24V AC supported
-
Power Consumption1.6W typical at full loading
-
Operating Temperature-40°C to 75°C
-
Protection6000V DC Ethernet ESD protection, 6000V DC EFT protection for power line
-
HousingIP30-rated metal case
-
MountingDIN rail and wall mount
-
Dimensions32 x 87 x 135 mm
-
Weight400 g
-
LED Indicators3 system and power LEDs
-
ApplicationIndustrial networking, surveillance, control, wireless, harsh environments
