The PLANET IGS-504HPT is an industrial unmanaged 5-port Gigabit Ethernet switch with four PoE+ ports supporting IEEE 802.3af/802.3at. It is built for harsh environments with an IP30 aluminum metal case and supports DIN-rail and wall mounting. Key features include 4 x Gigabit PoE+ ports, 1 x Gigabit...
More

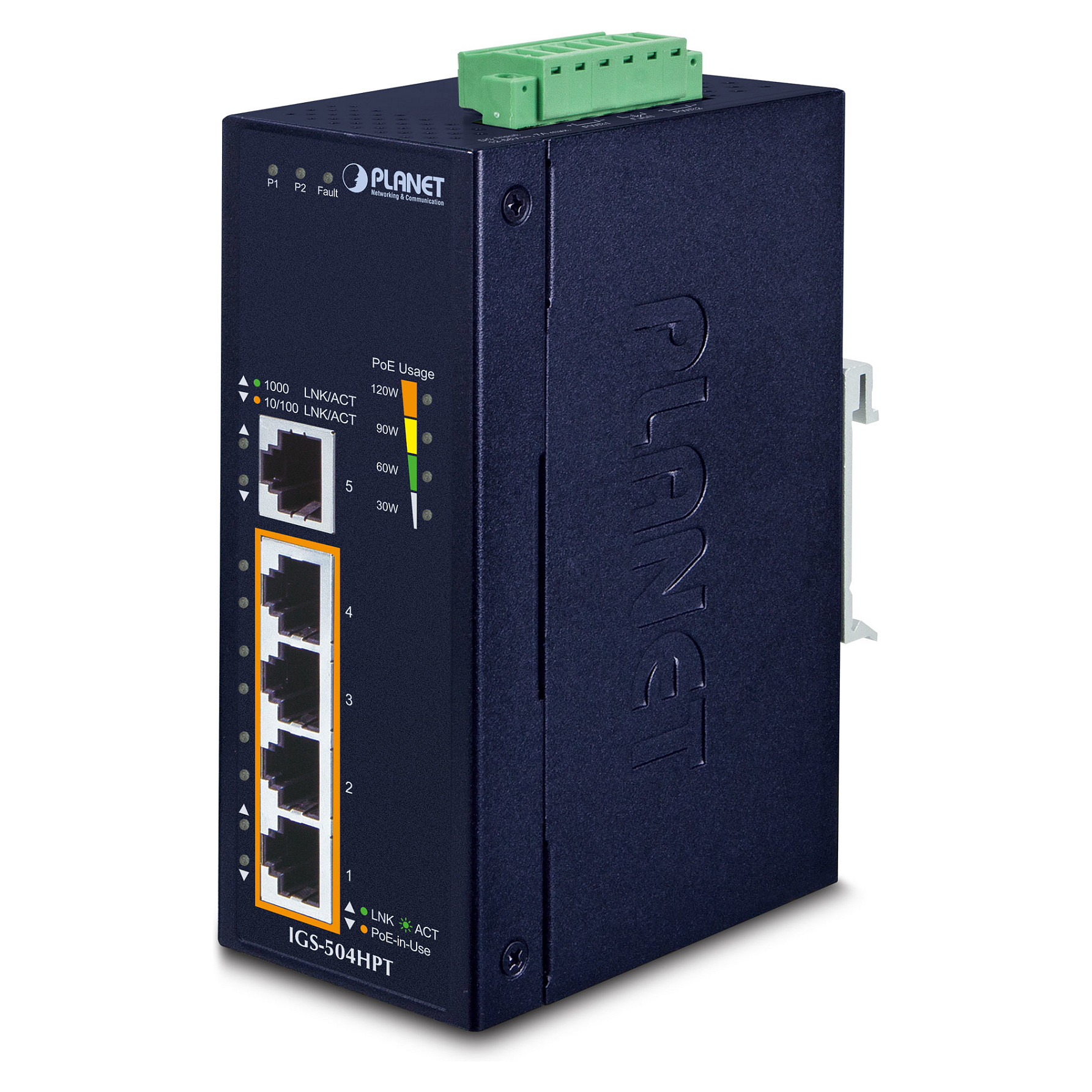

PLANET IGS-504HPT 5-Port Industrial Gigabit Unmanaged PoE+ Switch (4 x 802.3at PoE+)
Product Code: 1173702329
Available in 4 - 6 days
287,53 €
or
8,98€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 863 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The PLANET IGS-504HPT is an industrial unmanaged 5-port Gigabit Ethernet switch with four PoE+ ports supporting IEEE 802.3af/802.3at. It is built for harsh environments with an IP30 aluminum metal case and supports DIN-rail and wall mounting. Key features include 4 x Gigabit PoE+ ports, 1 x Gigabit uplink port, PoE auto-detection, jumbo frames up to 9216 bytes, auto negotiation for 10/100/1000 Mbps and IEEE 802.3x flow control.
-
BrandPlanet
-
Model / MPNIGS-504HPT
-
SKU21218155
-
EAN / Barcode4711213689512
-
Product typeIndustrial unmanaged 5-port Gigabit Ethernet switch (PoE+)
-
Ports5 total — 4 x 10/100/1000BASE-T RJ45 PoE+ ports (ports 1-4) and 1 x 10/100/1000BASE-T RJ45 uplink (non-PoE)
-
PoE StandardIEEE 802.3af (PoE) / IEEE 802.3at (PoE+), End-Span PSE
-
PoE per portUp to 30 W (listed as up to 30.8 W in manual / 30 W max for 802.3at; 15.4 W for 802.3af)
-
PoE voltage52 V DC to powered devices
-
Maximum PDs supportedUp to 4 simultaneous powered devices
-
PoE feeding distanceUp to 100 m over Cat5e/Cat6
-
Auto-detectionSupports IEEE 802.3af/at PD detection to avoid damage
-
Data rates / Link modes10/100/1000 Mbps auto-negotiation; 10/100 Mbps half/full; 1000 Mbps full duplex
-
Flow controlBack pressure for half duplex and IEEE 802.3x pause frames for full duplex
-
MAC / Switching featuresAutomatic address learning and address aging; Layer 2 switching features per manual
-
Jumbo framesSupports up to 9216-byte jumbo frames
-
Performance / ThroughputSpecified in manual: 7.44 Mpps @ 64 bytes and 8.93 Mpps @ 64 bytes (refer to vendor spec)
-
Case / MaterialIP30 aluminum metal housing
-
MountingDIN-rail and wall-mount supported
-
Industrial suitabilityDesigned for harsh industrial environments / IIoT deployments
-
Per-port current (spec)Per manual: ~275 mA (IEEE 802.3af), ~535 mA (IEEE 802.3at) per port (52V DC)
-
Redundant power / terminal(Not specified in provided sources)
-
Total PoE budget(Not specified in provided sources)
-
Dimensions(Not specified in provided sources)
-
Weight(Product weight not explicitly specified in available sources; estimated ~700 g)
-
Certifications(Not specified in provided sources)
-
Mounting accessories included(Not specified in provided sources)
-
Package contents(Not fully specified in available sources; typically: IGS-504HPT unit, quick start guide, DIN-rail kit, mounting screws)
Ratings
Description
The PLANET IGS-504HPT is an industrial unmanaged 5-port Gigabit Ethernet switch with four PoE+ ports supporting IEEE 802.3af/802.3at. It is built for harsh environments with an IP30 aluminum metal case and supports DIN-rail and wall mounting. Key features include 4 x Gigabit PoE+ ports, 1 x Gigabit uplink port, PoE auto-detection, jumbo frames up to 9216 bytes, auto negotiation for 10/100/1000 Mbps and IEEE 802.3x flow control.
Technical Specifications
-
BrandPlanet
-
Model / MPNIGS-504HPT
-
SKU21218155
-
EAN / Barcode4711213689512
-
Product typeIndustrial unmanaged 5-port Gigabit Ethernet switch (PoE+)
-
Ports5 total — 4 x 10/100/1000BASE-T RJ45 PoE+ ports (ports 1-4) and 1 x 10/100/1000BASE-T RJ45 uplink (non-PoE)
-
PoE StandardIEEE 802.3af (PoE) / IEEE 802.3at (PoE+), End-Span PSE
-
PoE per portUp to 30 W (listed as up to 30.8 W in manual / 30 W max for 802.3at; 15.4 W for 802.3af)
-
PoE voltage52 V DC to powered devices
-
Maximum PDs supportedUp to 4 simultaneous powered devices
-
PoE feeding distanceUp to 100 m over Cat5e/Cat6
-
Auto-detectionSupports IEEE 802.3af/at PD detection to avoid damage
-
Data rates / Link modes10/100/1000 Mbps auto-negotiation; 10/100 Mbps half/full; 1000 Mbps full duplex
-
Flow controlBack pressure for half duplex and IEEE 802.3x pause frames for full duplex
-
MAC / Switching featuresAutomatic address learning and address aging; Layer 2 switching features per manual
-
Jumbo framesSupports up to 9216-byte jumbo frames
-
Performance / ThroughputSpecified in manual: 7.44 Mpps @ 64 bytes and 8.93 Mpps @ 64 bytes (refer to vendor spec)
-
Case / MaterialIP30 aluminum metal housing
-
MountingDIN-rail and wall-mount supported
-
Industrial suitabilityDesigned for harsh industrial environments / IIoT deployments
-
Per-port current (spec)Per manual: ~275 mA (IEEE 802.3af), ~535 mA (IEEE 802.3at) per port (52V DC)
-
Redundant power / terminal(Not specified in provided sources)
-
Total PoE budget(Not specified in provided sources)
-
Dimensions(Not specified in provided sources)
-
Weight(Product weight not explicitly specified in available sources; estimated ~700 g)
-
Certifications(Not specified in provided sources)
-
Mounting accessories included(Not specified in provided sources)
-
Package contents(Not fully specified in available sources; typically: IGS-504HPT unit, quick start guide, DIN-rail kit, mounting screws)
