The PLANET FSD 503 is a compact unmanaged 5 port 10 100Mbps Fast Ethernet switch with a durable metal housing, designed for small office and home networking environments. It provides five RJ45 ports with auto negotiation and auto MDI MDI X, eliminating the need for crossover cables, and supports...
More

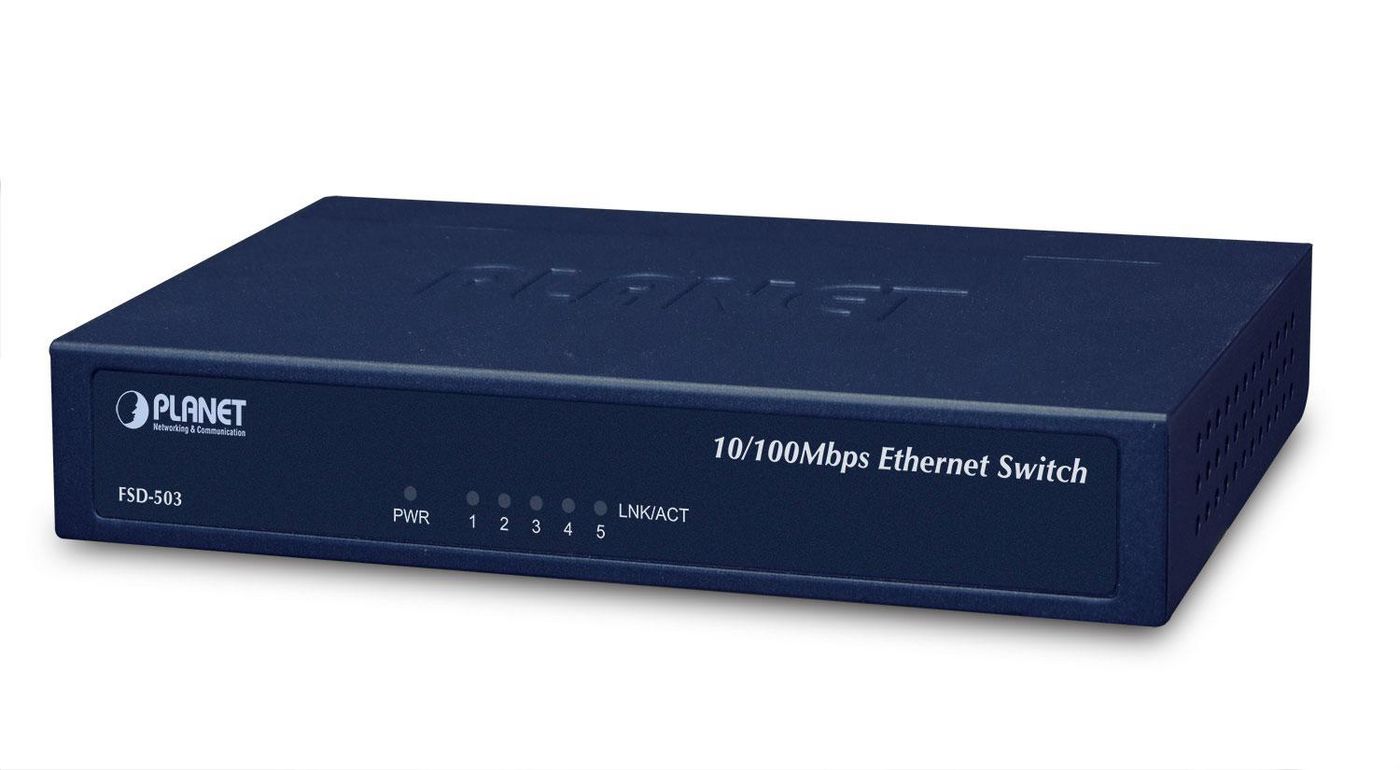

PLANET Default 5 Port 10 100Mbps Fast Ethernet Switch Metal FSD 503
Product Code: 1200655517
Available in 4 - 10 days
29,81 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The PLANET FSD 503 is a compact unmanaged 5 port 10 100Mbps Fast Ethernet switch with a durable metal housing, designed for small office and home networking environments. It provides five RJ45 ports with auto negotiation and auto MDI MDI X, eliminating the need for crossover cables, and supports IEEE 802.3 10Base T, IEEE 802.3u 100Base TX, and IEEE 802.3x flow control. The switch operates in store and forward mode with wire speed filtering and forwarding, offering stable and reliable data transfer. It supports automatic MAC learning and aging, up to 1K MAC addresses, and frame sizes up to 1536 bytes. The compact metal chassis supports desktop or wall mount installation and includes Power and per port Link Act LED indicators, a power on off switch, and an external 5V DC power adapter. Product dimensions are 100 x 64 x 24 mm and weight is 148 g. It is a plug and play networking solution suitable for small networks requiring durable construction and dependable Fast Ethernet performance.
-
BrandPLANET Technology
-
ModelFSD-503
-
TypeUnmanaged Fast Ethernet Switch
-
Port Count5
-
Ports5 x RJ45 10/100Mbps Fast Ethernet
-
Auto NegotiationYes
-
Auto MDI/MDI-XYes
-
Supported Cable TypeCategory 5/5e
-
StandardsIEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, Back Pressure
-
Switching ModeStore-and-Forward
-
Filtering/Forwarding Rate14,880 pps at 10Mbps, 148,800 pps at 100Mbps
-
MAC Address TableUp to 1K entries
-
Frame SizeUp to 1536 bytes
-
MAC LearningAutomatic learning and aging
-
ProtocolCSMA/CD
-
Housing MaterialMetal
-
InstallationDesktop or Wall-mount
-
LED IndicatorsPower, Link/Act per port
-
Power SupplyExternal 5V DC adapter
-
Power SwitchYes
-
CertificationsFCC, CE Class B
-
Dimensions100 x 64 x 24 mm
-
Weight148 g
-
UsageSmall networks, 10 to 50 users, plug and play operation
Ratings
Description
The PLANET FSD 503 is a compact unmanaged 5 port 10 100Mbps Fast Ethernet switch with a durable metal housing, designed for small office and home networking environments. It provides five RJ45 ports with auto negotiation and auto MDI MDI X, eliminating the need for crossover cables, and supports IEEE 802.3 10Base T, IEEE 802.3u 100Base TX, and IEEE 802.3x flow control. The switch operates in store and forward mode with wire speed filtering and forwarding, offering stable and reliable data transfer. It supports automatic MAC learning and aging, up to 1K MAC addresses, and frame sizes up to 1536 bytes. The compact metal chassis supports desktop or wall mount installation and includes Power and per port Link Act LED indicators, a power on off switch, and an external 5V DC power adapter. Product dimensions are 100 x 64 x 24 mm and weight is 148 g. It is a plug and play networking solution suitable for small networks requiring durable construction and dependable Fast Ethernet performance.
Technical Specifications
-
BrandPLANET Technology
-
ModelFSD-503
-
TypeUnmanaged Fast Ethernet Switch
-
Port Count5
-
Ports5 x RJ45 10/100Mbps Fast Ethernet
-
Auto NegotiationYes
-
Auto MDI/MDI-XYes
-
Supported Cable TypeCategory 5/5e
-
StandardsIEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, Back Pressure
-
Switching ModeStore-and-Forward
-
Filtering/Forwarding Rate14,880 pps at 10Mbps, 148,800 pps at 100Mbps
-
MAC Address TableUp to 1K entries
-
Frame SizeUp to 1536 bytes
-
MAC LearningAutomatic learning and aging
-
ProtocolCSMA/CD
-
Housing MaterialMetal
-
InstallationDesktop or Wall-mount
-
LED IndicatorsPower, Link/Act per port
-
Power SupplyExternal 5V DC adapter
-
Power SwitchYes
-
CertificationsFCC, CE Class B
-
Dimensions100 x 64 x 24 mm
-
Weight148 g
-
UsageSmall networks, 10 to 50 users, plug and play operation
