The PLANET ISW-621 is an unmanaged industrial L2 Fast Ethernet switch featuring 4 x 10/100Base-TX RJ-45 ports and 2 x 100Base-FX SC multimode fiber ports (up to 2 km over 50/125 µm multimode). It uses store-and-forward switching with a 1.2 Gbps switch fabric, 0.89 Mpps throughput (64-byte), 1 Mbit...
More

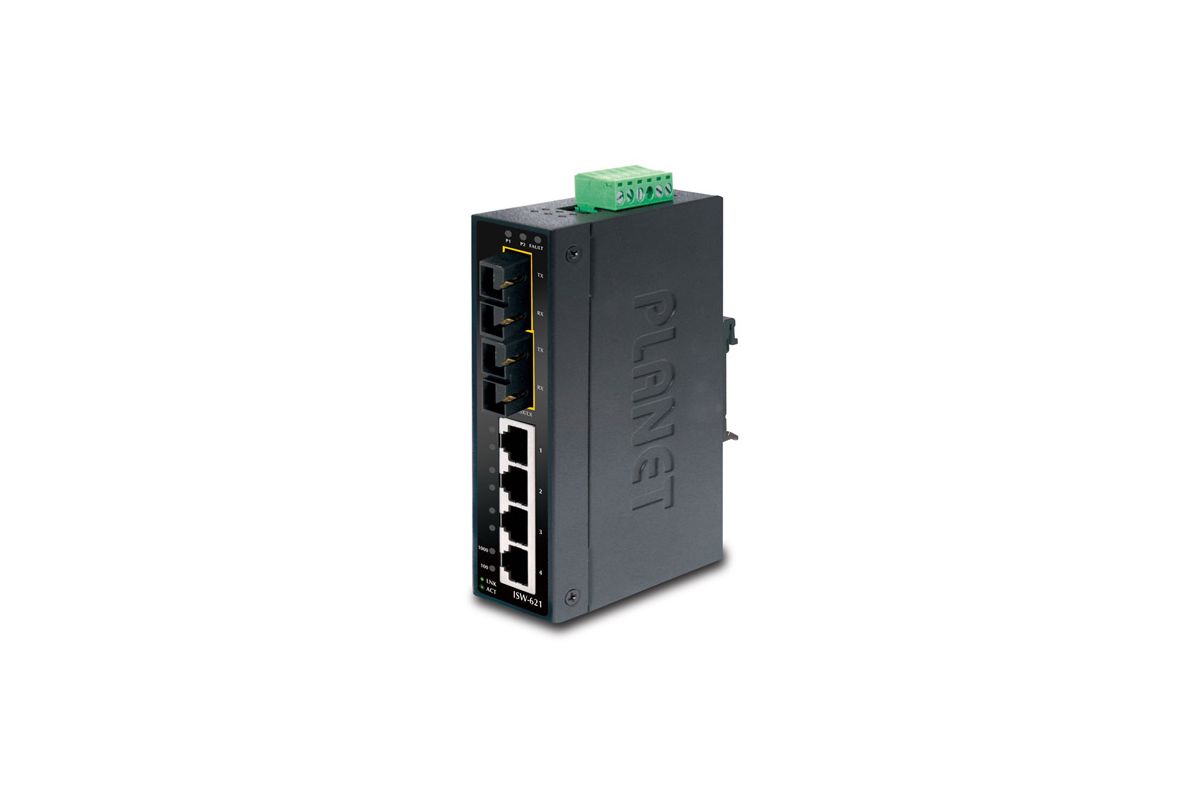

PLANET 4+2 100FX Port Multi-mode Industrial Ethernet Switch (ISW-621)
Product Code: 1117729350
Available in 1 - 3 days
167,05 €
or
5,22€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 502 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The PLANET ISW-621 is an unmanaged industrial L2 Fast Ethernet switch featuring 4 x 10/100Base-TX RJ-45 ports and 2 x 100Base-FX SC multimode fiber ports (up to 2 km over 50/125 µm multimode). It uses store-and-forward switching with a 1.2 Gbps switch fabric, 0.89 Mpps throughput (64-byte), 1 Mbit buffer and a 2K (2048) MAC address table. The unit supports auto-negotiation and Auto MDI/MDI-X on copper ports, provides flow control (backpressure and IEEE 802.3x), and complies with IEEE 802.3/802.3u/802.3x. Built for industrial use with an IP30 metal enclosure, DIN-rail and wall mounting, 12–48 VDC input with removable terminal block, redundant power support and reverse polarity protection, and 6000 VDC Ethernet ESD / 6000 VDC power-line EFT protection. Operating temperature -10°C to 60°C. SKU: 247788, EAN: 4711213688225, MPN: ISW-621.
-
BrandPLANET Technology Corp.
-
ModelISW-621
-
SKU247788
-
EAN4711213688225
-
MPNISW-621
-
Device TypeUnmanaged Industrial Ethernet Switch (L2)
-
Ethernet Ports4 x 10/100Base-TX RJ-45
-
Fiber Ports2 x 100Base-FX SC
-
Fiber Type50/125 μm multimode
-
Fiber Wavelength1310 nm
-
Optical DistanceUp to 2 km (multimode)
-
Switching ModeStore-and-forward
-
Switching Fabric1.2 Gbps
-
Throughput0.89 Mpps @ 64-byte packets
-
MAC Address Table2048 entries
-
Buffer Memory1 Mbit
-
Auto MDI/MDI-XYes
-
Auto-negotiationYes
-
Duplex Modes10/100 Mbps half/full duplex
-
Flow ControlBack pressure (half duplex), IEEE 802.3x (full duplex)
-
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
-
Power Input12–48 VDC
-
Redundant PowerYes
-
Power ConnectorRemovable terminal block
-
Reverse Polarity ProtectionYes
-
ESD/EFT Protection6000 VDC Ethernet ESD; 6000 VDC power-line EFT
-
EnclosureIP30 metal case
-
MountingDIN-rail and wall mount
-
Dimensions135 x 97 x 32 mm
-
Operating Temperature-10°C to 60°C
-
Storage Temperature-40°C to 85°C
-
Weight420 g (product)
-
Package Weight800 g
Ratings
Description
The PLANET ISW-621 is an unmanaged industrial L2 Fast Ethernet switch featuring 4 x 10/100Base-TX RJ-45 ports and 2 x 100Base-FX SC multimode fiber ports (up to 2 km over 50/125 µm multimode). It uses store-and-forward switching with a 1.2 Gbps switch fabric, 0.89 Mpps throughput (64-byte), 1 Mbit buffer and a 2K (2048) MAC address table. The unit supports auto-negotiation and Auto MDI/MDI-X on copper ports, provides flow control (backpressure and IEEE 802.3x), and complies with IEEE 802.3/802.3u/802.3x. Built for industrial use with an IP30 metal enclosure, DIN-rail and wall mounting, 12–48 VDC input with removable terminal block, redundant power support and reverse polarity protection, and 6000 VDC Ethernet ESD / 6000 VDC power-line EFT protection. Operating temperature -10°C to 60°C. SKU: 247788, EAN: 4711213688225, MPN: ISW-621.
Technical Specifications
-
BrandPLANET Technology Corp.
-
ModelISW-621
-
SKU247788
-
EAN4711213688225
-
MPNISW-621
-
Device TypeUnmanaged Industrial Ethernet Switch (L2)
-
Ethernet Ports4 x 10/100Base-TX RJ-45
-
Fiber Ports2 x 100Base-FX SC
-
Fiber Type50/125 μm multimode
-
Fiber Wavelength1310 nm
-
Optical DistanceUp to 2 km (multimode)
-
Switching ModeStore-and-forward
-
Switching Fabric1.2 Gbps
-
Throughput0.89 Mpps @ 64-byte packets
-
MAC Address Table2048 entries
-
Buffer Memory1 Mbit
-
Auto MDI/MDI-XYes
-
Auto-negotiationYes
-
Duplex Modes10/100 Mbps half/full duplex
-
Flow ControlBack pressure (half duplex), IEEE 802.3x (full duplex)
-
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
-
Power Input12–48 VDC
-
Redundant PowerYes
-
Power ConnectorRemovable terminal block
-
Reverse Polarity ProtectionYes
-
ESD/EFT Protection6000 VDC Ethernet ESD; 6000 VDC power-line EFT
-
EnclosureIP30 metal case
-
MountingDIN-rail and wall mount
-
Dimensions135 x 97 x 32 mm
-
Operating Temperature-10°C to 60°C
-
Storage Temperature-40°C to 85°C
-
Weight420 g (product)
-
Package Weight800 g
