The Pioneer TS-WX300A is a powered 30 cm (12") car subwoofer with a built-in Class-D amplifier. It delivers 350 W nominal (RMS) power and up to 1300 W maximum output. Frequency response is 20 Hz–130 Hz with an in-car sensitivity of about 113 dB. The unit uses a vented (bass reflex) enclosure, a...
More

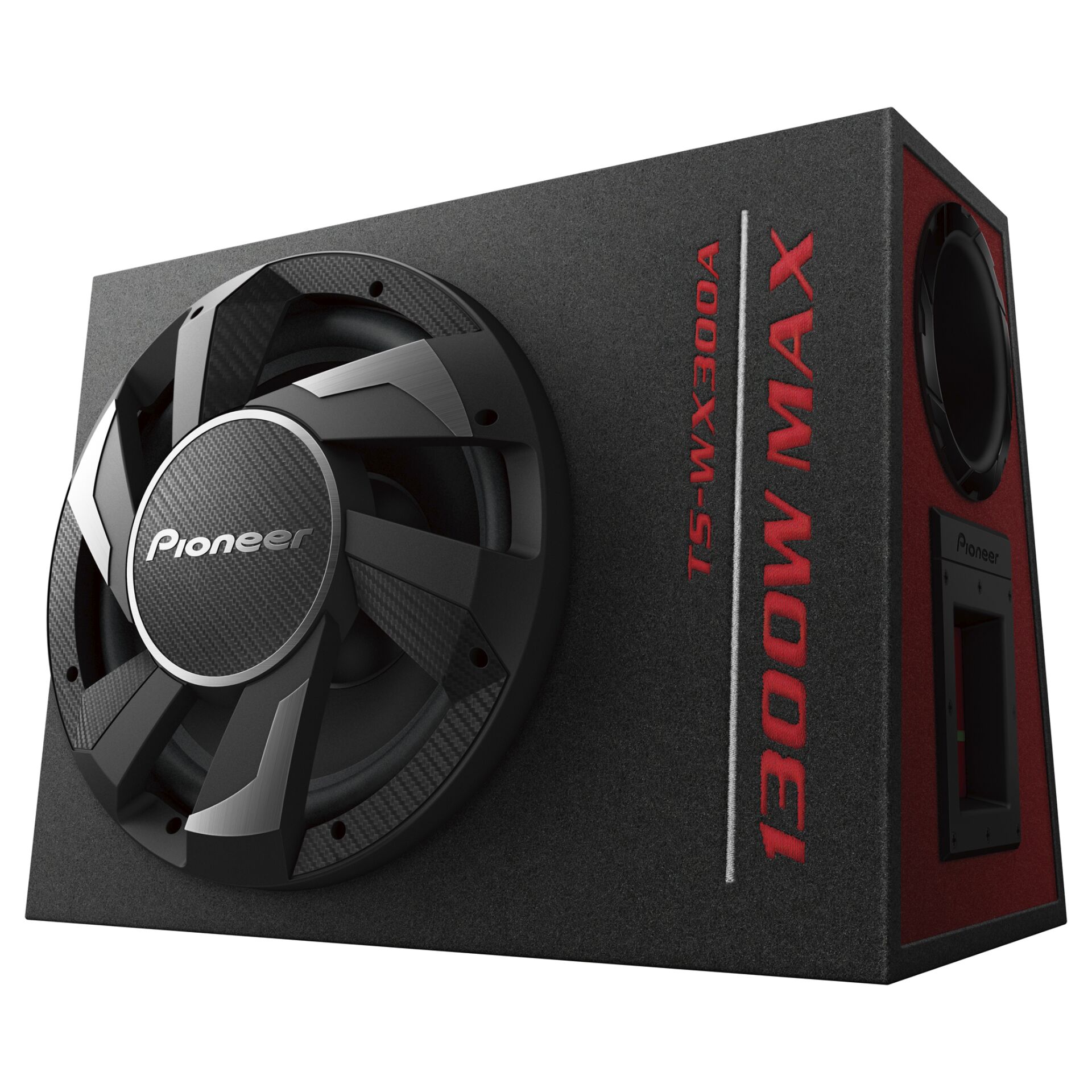

Pioneer TS-WX300A Powered 30 cm (12") Car Subwoofer — 350 W RMS / 1300 W Max
Product Code: 1116733398
Available in 4 - 6 days
208,95 €
or
6,53€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 627 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Pioneer TS-WX300A is a powered 30 cm (12") car subwoofer with a built-in Class-D amplifier. It delivers 350 W nominal (RMS) power and up to 1300 W maximum output. Frequency response is 20 Hz–130 Hz with an in-car sensitivity of about 113 dB. The unit uses a vented (bass reflex) enclosure, a pulp cone woofer, four-layer round copper voice coil, polyimide voice-coil support, and a ferrite magnet. Features include adjustable low-pass filter (50–125 Hz, -12 dB/oct), 14.4 V DC operation (allowable 10.8–15.1 V), max current draw ~13 A, negative ground, and supplied power/speaker cables (5 m) plus short RCA lead (0.2 m). Dimensions: 503 x 378 x 318 mm (W x H x D). Weight (product): 10.3 kg; packaged weight: 11.9 kg.
-
BrandPioneer
-
ModelTS-WX300A
-
Product typePowered / active car subwoofer
-
Woofer size30 cm (12")
-
Enclosure typeBass reflex (vented)
-
Amplifier typeBuilt-in Class-D amplifier
-
Nominal (RMS) power350 W
-
Maximum power (peak)1300 W
-
Frequency response20 Hz - 130 Hz
-
Sensitivity (in-car)113 dB ±1.5 dB
-
Low-pass filter50 - 125 Hz, -12 dB/oct
-
Power supplyDC 14.4 V (allowable 10.8 V - 15.1 V)
-
Maximum current consumption13 A
-
GroundingNegative ground
-
Voice coilFour-layer round copper wire
-
Voice coil support materialPolyimide
-
Woofer materialPulp cone
-
Magnet materialFerrite
-
Channel count1 (mono)
-
Gross enclosure volume33 L
-
Mounting / installation depth318 mm (31.8 cm)
-
Speaker cable length5 m
-
Power cable length5 m
-
RCA cable length0.2 m
-
Product dimensions (W x H x D)503 x 378 x 318 mm
-
Product weight10.3 kg
-
Package weight11.9 kg
-
ColorBlack (listings also show black/red accents)
Ratings
Description
The Pioneer TS-WX300A is a powered 30 cm (12") car subwoofer with a built-in Class-D amplifier. It delivers 350 W nominal (RMS) power and up to 1300 W maximum output. Frequency response is 20 Hz–130 Hz with an in-car sensitivity of about 113 dB. The unit uses a vented (bass reflex) enclosure, a pulp cone woofer, four-layer round copper voice coil, polyimide voice-coil support, and a ferrite magnet. Features include adjustable low-pass filter (50–125 Hz, -12 dB/oct), 14.4 V DC operation (allowable 10.8–15.1 V), max current draw ~13 A, negative ground, and supplied power/speaker cables (5 m) plus short RCA lead (0.2 m). Dimensions: 503 x 378 x 318 mm (W x H x D). Weight (product): 10.3 kg; packaged weight: 11.9 kg.
Technical Specifications
-
BrandPioneer
-
ModelTS-WX300A
-
Product typePowered / active car subwoofer
-
Woofer size30 cm (12")
-
Enclosure typeBass reflex (vented)
-
Amplifier typeBuilt-in Class-D amplifier
-
Nominal (RMS) power350 W
-
Maximum power (peak)1300 W
-
Frequency response20 Hz - 130 Hz
-
Sensitivity (in-car)113 dB ±1.5 dB
-
Low-pass filter50 - 125 Hz, -12 dB/oct
-
Power supplyDC 14.4 V (allowable 10.8 V - 15.1 V)
-
Maximum current consumption13 A
-
GroundingNegative ground
-
Voice coilFour-layer round copper wire
-
Voice coil support materialPolyimide
-
Woofer materialPulp cone
-
Magnet materialFerrite
-
Channel count1 (mono)
-
Gross enclosure volume33 L
-
Mounting / installation depth318 mm (31.8 cm)
-
Speaker cable length5 m
-
Power cable length5 m
-
RCA cable length0.2 m
-
Product dimensions (W x H x D)503 x 378 x 318 mm
-
Product weight10.3 kg
-
Package weight11.9 kg
-
ColorBlack (listings also show black/red accents)
