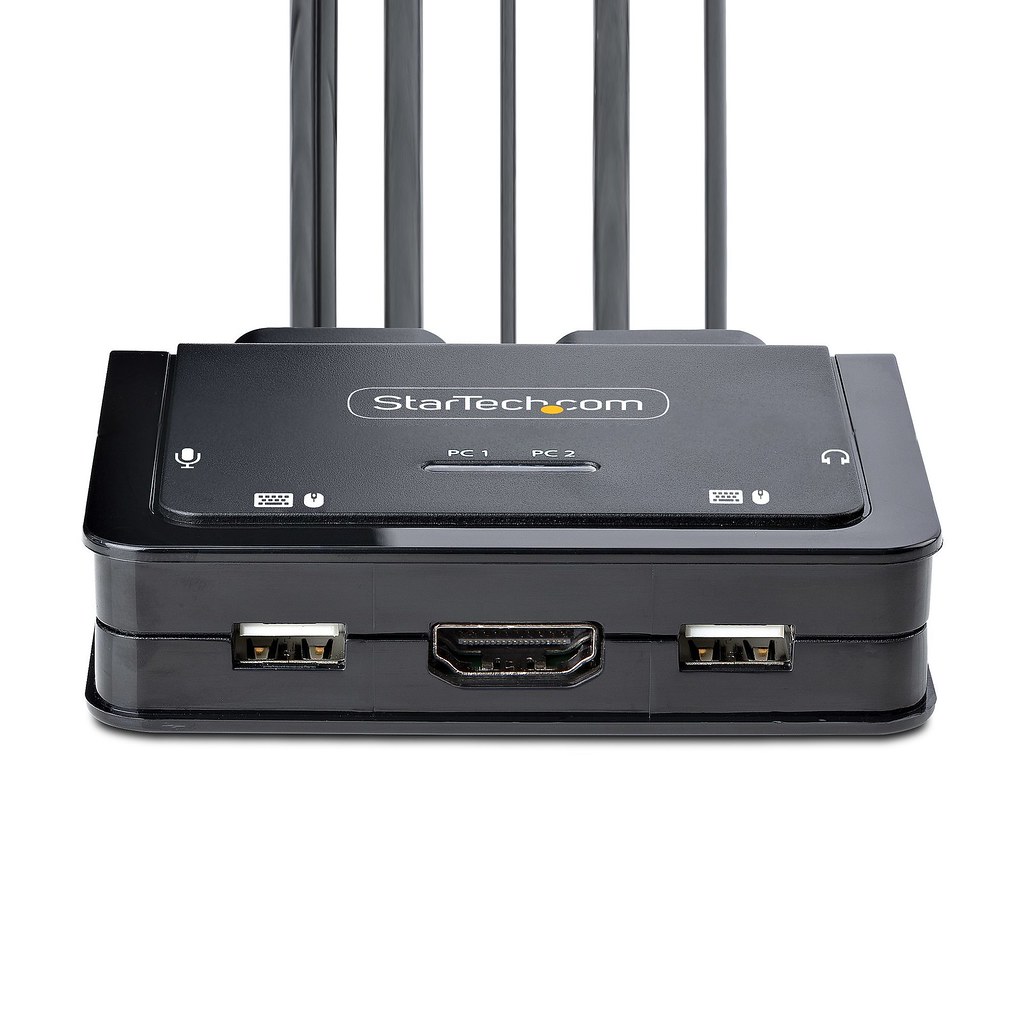

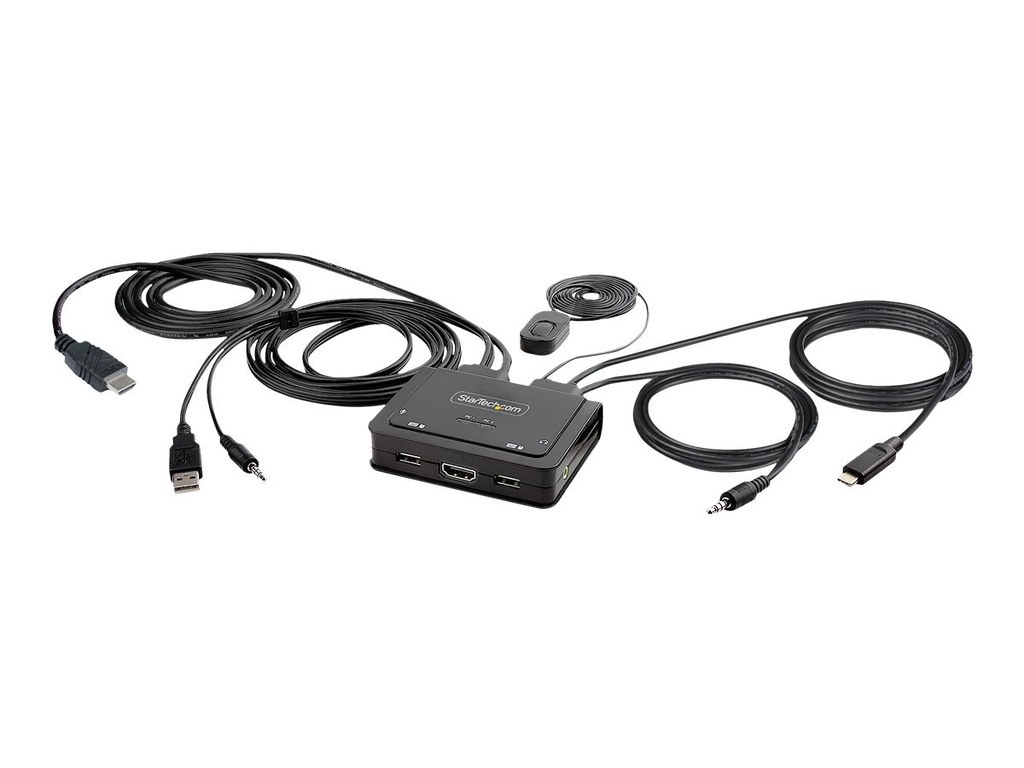

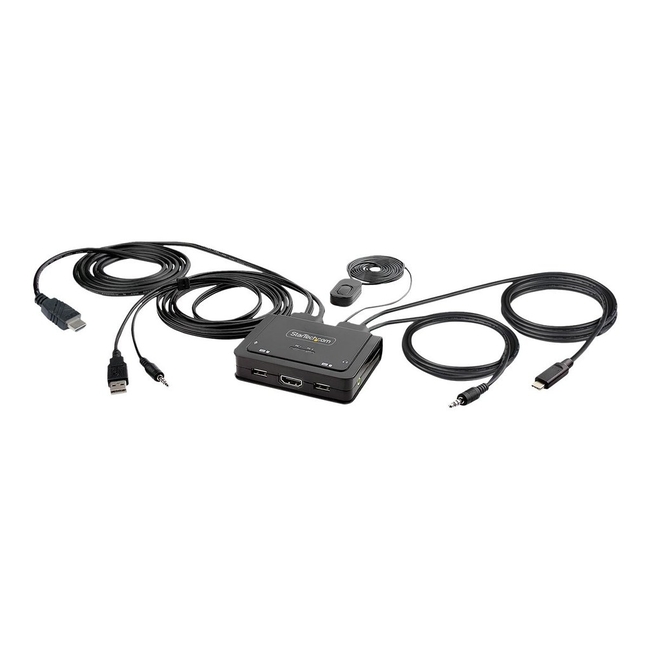

KVM Switch StarTech C2-H46-UAC-CBL-KVM

Technical Specifications

• Number of computers controlled
  2
• Keyboard port type
  USB
• Mouse port type
  USB
• Video port type
  HDMI
• HDMI ports quantity
  1
• HDMI version
  2.0b
• Console ports
  3.5mm headphone, 3.5mm mic, HDMI, USB A
• Console USB ports quantity
  2
• Console HDMI ports quantity
  1
• USB connector type
  USB Type-A, USB Type-C
• Audio connections
  Yes
• Headphone outputs
  1
• Number of microphone inputs
  1
• HD type
  4K Ultra HD
• Maximum resolution
  4096 x 2160 pixels
• Video bandwidth
  60 Hz
• Data transfer rate (max)
  0.48 Gbit/s
• Scan interval
  10,20,30,40,50,60 s
• Audio channels
  2
• Number of displays supported
  1
• Rack mounting
  No
• Product colour
  Black
• Housing material
  Acrylonitrile butadiene styrene (ABS)
• Cable length
  1.8 m
• LED indicators
  Yes
• Push button
  Yes
• Hot keys
  Yes
• Mean time between failures (MTBF)
  345059 h
• Built-in display
  No
• On Screen Display (OSD)
  No
• Power source
  USB
• Windows operating systems supported
  Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
• Mac operating systems supported
  Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
• Other operating systems supported
  ChromeOS
• Sustainability compliance
  Yes
• Sustainability certificates
  RoHS
• Operating temperature (T-T)
  0 - 40 °C
• Storage temperature (T-T)
  -20 - 60 °C
• Operating relative humidity (H-H)
  0 - 90%
• Width
  92 mm
• Depth
  97 mm
• Height
  24 mm
• Weight
  265 g
• Package width
  210 mm
• Package depth
  160 mm
• Package height
  60 mm
• Package weight
  500 g
• Quick installation guide
  Yes
• Master (outer) case width
  440 mm
• Master (outer) case length
  345 mm
• Master (outer) case height
  345 mm
• Products per master (outer) case
  20 pc(s)
• IP control
  No
