• AV Interface: HDMI®
• Interface Standard: HDMI® 1.4, USB 1.1
• Supported Bandwidth: 4.95 Gbps
• Maximum Distance: 120m (393ft)
• Maximum Resolution: 1920x1080@60Hz
• HDCP Support: 2.2
• EDID Pass Through: Pass-through
• Supported Audio: HDMI® Audio Pass-through
• Separate Audio Ports: -
• IR Support: -
• CEC Support: Pass-through
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: 1 x Cat.6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Special Features: HDMI® Loop Out Port, PoC (Power over Cable)

 Connectors

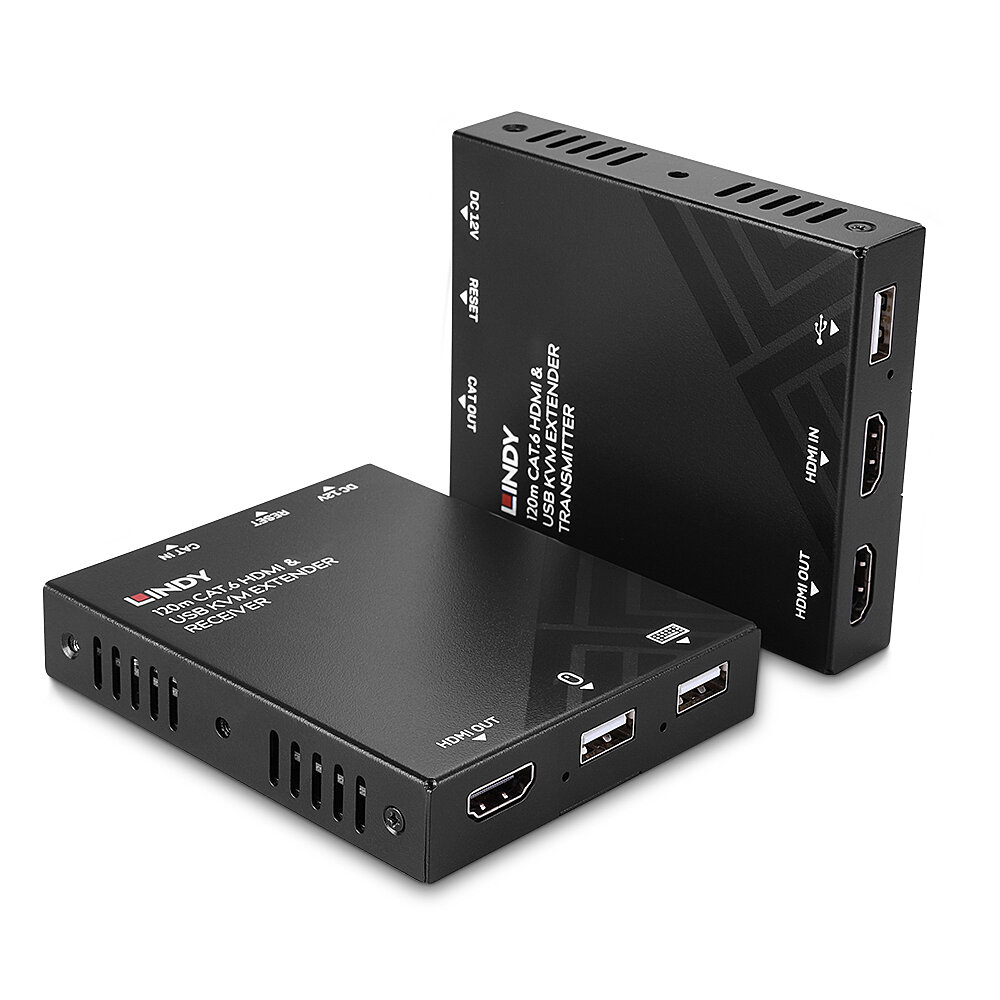

• Transmitter Input: HDMI® Type A (Female), USB Type B (Female)
• Transmitter Output: RJ-45 (Female), HDMI® Type A (Female)
• Receiver Input: RJ-45 (Female)
• Receiver Output: HDMI® Type A (Female), 2 x USB Type A (Female)
• Bi-directional Ports: -
• Power: 5.5/2.1mm

 Physical Properties

• Dimensions (approx.) WxDxH: 95x80x16mm (3.74x3.15x0.63in) per unit
• Housing Material: Metal
• Net Weight: 0.4kg (0.88lb)
• Operating Temperature: -5°C - 55°C (23°F - 131°F)
• Storage Temperature: -25°C - 70°C (-13°F - 158°F)
• Humidity: 10 - 90% RH (non-condensing)
• Power Requirements: 12VDC 1A
• Colour: Black

 Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 240x180x60mm (9.45x7.09x2.36in)
• Gross Weight: 0.8kg (1.76lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• Transmitter
• Receiver
• USB Type A Male to Type A Male cable, 1m
• 4 x Mounting Ears with screws
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

 Purchasing Information

• No.: 39381
• EAN: 4002888393812
