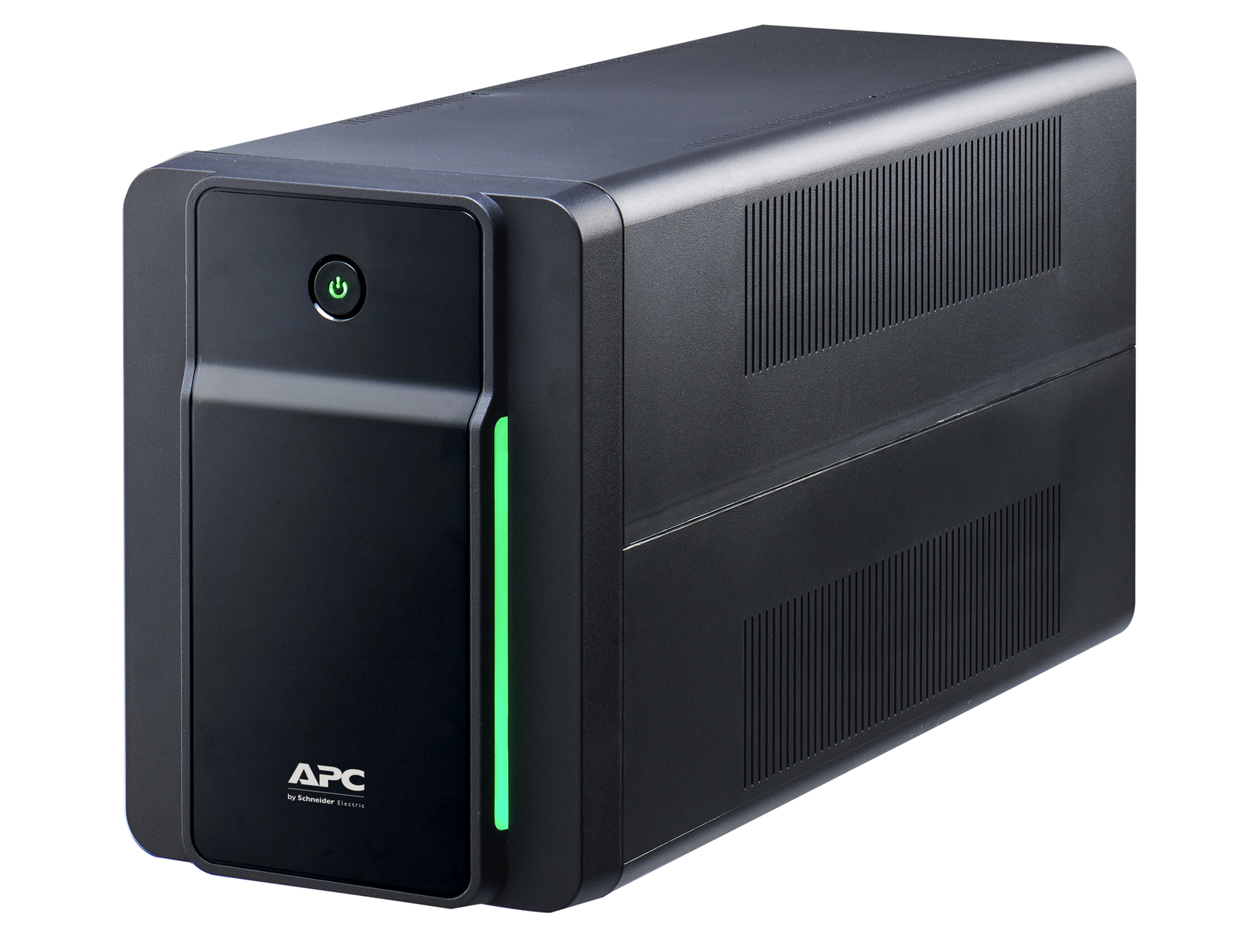

UPS APC BX1200MI-GR Line-Interactive 1.2 kVA 650 W 4 AC outlet(s)

Technical Specifications

• Sustainability certificates
  RoHS
• Output operation voltage (max)
  230 V
• UPS topology
  Line-Interactive
• Output power capacity
  1.2 kVA
• Output frequency regulation
  0.5 Hz
• Input operation voltage (max)
  300 V
• Input frequency
  50/60 Hz
• Surge protection
  Y
• Input operation voltage (min)
  140 V
• Output operation voltage (min)
  230 V
• Waveform
  Sine
• Output voltage regulation
  10%
• Audible alarm modes
  Low battery alarm
• Input power factor
  0.54
• Automatic Voltage Regulation (AVR)
  Y
• Surge energy rating
  273 J
• Output frequency
  50/60 Hz
• Audible alarm(s)
  Y
• Response time
  6 ms
• Noise level
  40 dB
• Output power
  650 W
• Product colour
  Black
• International Protection (IP) code
  IP20
• LED indicators
  Y
• Form factor
  Compact
• Cable length
  1.2 m
• Operating altitude
  0 - 3000 m
• Operating relative humidity (H-H)
  0 - 95%
• Operating temperature (T-T)
  0 - 40 °C
• Storage temperature (T-T)
  -15 - 40 °C
• Width
  140 mm
• Depth
  390 mm
• Height
  190 mm
• Weight
  7.6 kg
• Package height
  297 mm
• Cables included
  Input power cable
• Manual
  Y
• Package width
  235 mm
• AC outlet types
  Type F
• USB port type
  USB Type-B
• Power plug
  Type F
• Ethernet LAN (RJ-45) ports
  2
• AC outlets quantity
  4 AC outlet(s)
• USB 2.0 ports quantity
  1
• USB port
  Y
• Battery recharge time
  8 h
• Battery life (max)
  2 year(s)
• Battery technology
  Sealed Lead Acid (VRLA)
• Typical backup time at full load
  1 min
• Typical backup time at half load
  5 min

Ratings
