PCI Express x1 expansion card providing four external RS-232 serial ports. The card uses a DB44 female connector and includes a DB44-to-4×DB9 breakout cable to provide four external serial DB9 ports. Per-port power can be supplied at 5 V or 12 V (jumper configurable). Uses SUN2410 chipset,...
More
PCI Express x1 Card to 4 x Serial RS-232 with Power Supply (Delock 89938)
Product Code: 1173700111
Available in 4 - 6 days
65,47 €
or
2,04€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 197 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

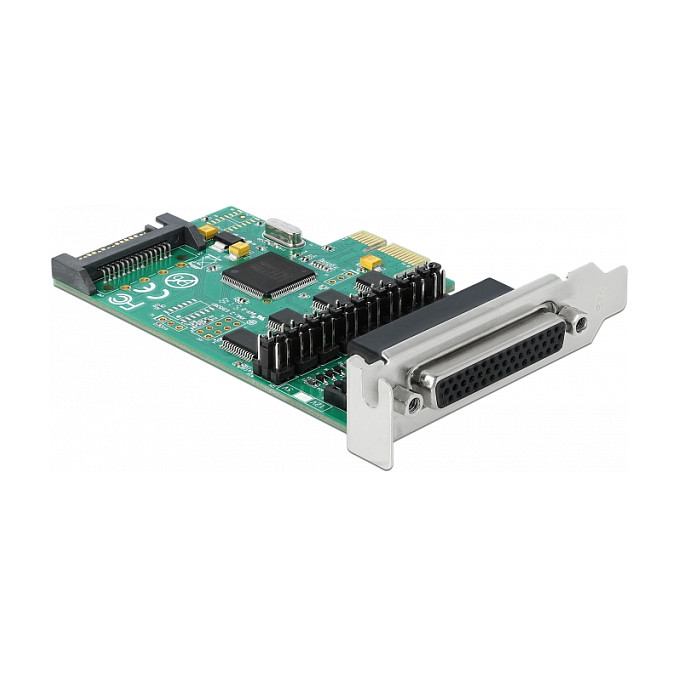

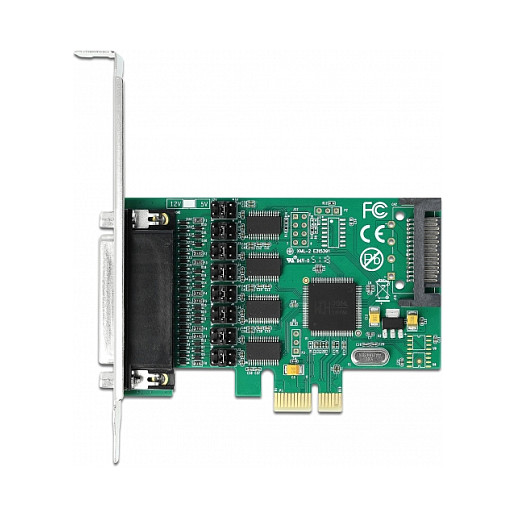

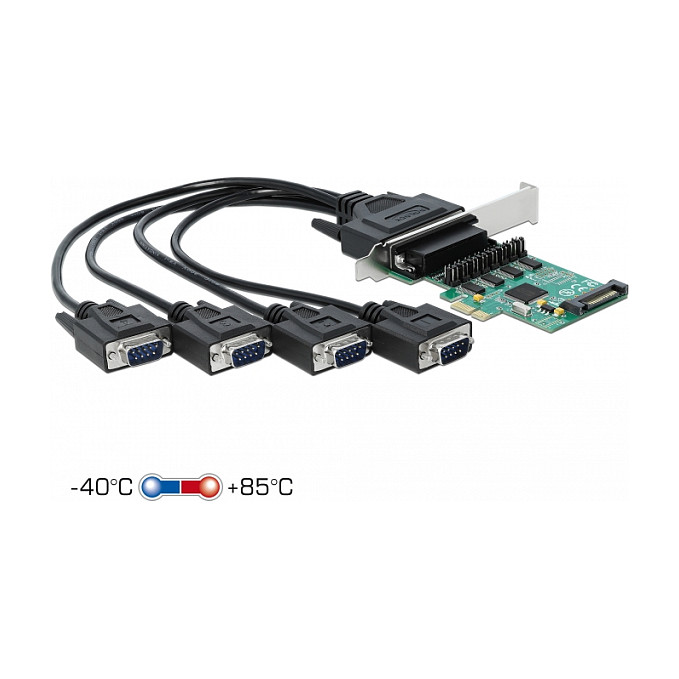

PCI Express x1 expansion card providing four external RS-232 serial ports. The card uses a DB44 female connector and includes a DB44-to-4×DB9 breakout cable to provide four external serial DB9 ports. Per-port power can be supplied at 5 V or 12 V (jumper configurable). Uses SUN2410 chipset, 16C950-compatible UART with 128-byte FIFO and up to 115.2 kbps data rate. Card is PCIe x1 (V2.0), low-profile compatible, includes SATA 15-pin power connector for supplying powered serial ports, and offers ±15 kV ESD protection (IEC 1000-4-2). WHQL certified drivers available for Windows.
-
BrandDeLOCK
-
Model / MPN89938
-
EAN4043619899388
-
Product TypePCI Express x1 to 4×Serial RS-232 with power supply
-
ChipsetSUN2410
-
UART Compatibility16C950 UART
-
FIFO128 bytes
-
Maximum Data Rate115.2 kbps
-
External Connector on CardDB44 female
-
Breakout CableDB44 male to 4×DB9 male (supplied)
-
PCI InterfacePCI Express x1 (V2.0)
-
Power InputSATA 15-pin connector on card
-
Per-port Voltage Options5 V or 12 V (jumper configurable, pin 1 or pin 9 selectable)
-
Maximum Current per Port1100 mA (continuous), 1900 mA peak for 15 s
-
Electrical Power per Port5.5 W at 5 V / 13.2 W at 12 V (at 1.1 A)
-
Signal Lines per PortDCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
-
ESD Protection±15 kV (IEC 1000-4-2) on serial signals
-
Operating System SupportWindows (WHQL certified drivers)
-

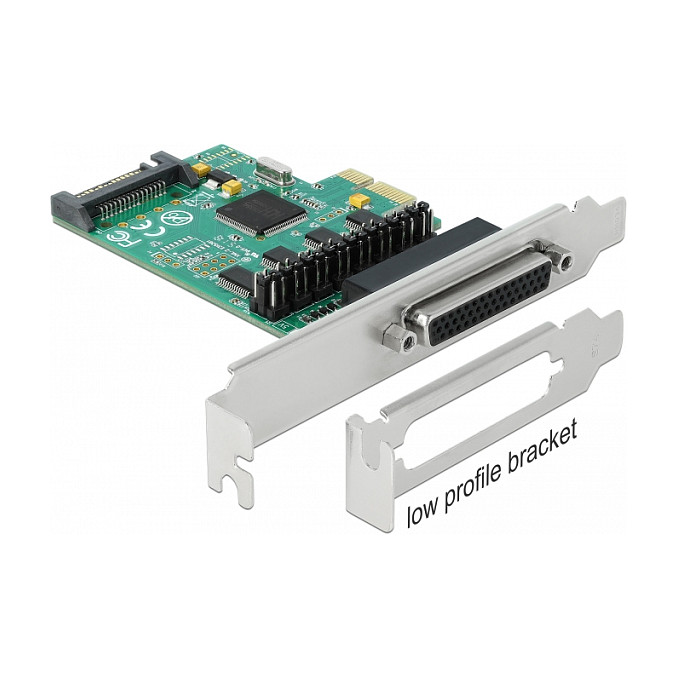

Form FactorLow Profile (includes low-profile bracket)
-
ColorBlack
-
Included AccessoriesDB44-to-4×DB9 cable, low-profile bracket, mounting screws
-
Typical UseAdd multiple powered RS-232 ports to desktop/workstation PCs
-
CertificationsWindows WHQL
-
ManufacturerDeLOCK
-
MaterialPCB (FR4), metal bracket, plastic connectors
-
Dimensions (card)Standard PCIe single-slot low-profile card (full dimensions vary by PCB)
-
Package ContentsPCIe card, breakout cable, low-profile bracket, screws
Ratings
Description
PCI Express x1 expansion card providing four external RS-232 serial ports. The card uses a DB44 female connector and includes a DB44-to-4×DB9 breakout cable to provide four external serial DB9 ports. Per-port power can be supplied at 5 V or 12 V (jumper configurable). Uses SUN2410 chipset, 16C950-compatible UART with 128-byte FIFO and up to 115.2 kbps data rate. Card is PCIe x1 (V2.0), low-profile compatible, includes SATA 15-pin power connector for supplying powered serial ports, and offers ±15 kV ESD protection (IEC 1000-4-2). WHQL certified drivers available for Windows.
Technical Specifications
-
BrandDeLOCK
-
Model / MPN89938
-
EAN4043619899388
-
Product TypePCI Express x1 to 4×Serial RS-232 with power supply
-
ChipsetSUN2410
-
UART Compatibility16C950 UART
-
FIFO128 bytes
-
Maximum Data Rate115.2 kbps
-
External Connector on CardDB44 female
-
Breakout CableDB44 male to 4×DB9 male (supplied)
-
PCI InterfacePCI Express x1 (V2.0)
-
Power InputSATA 15-pin connector on card
-
Per-port Voltage Options5 V or 12 V (jumper configurable, pin 1 or pin 9 selectable)
-
Maximum Current per Port1100 mA (continuous), 1900 mA peak for 15 s
-
Electrical Power per Port5.5 W at 5 V / 13.2 W at 12 V (at 1.1 A)
-
Signal Lines per PortDCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
-
ESD Protection±15 kV (IEC 1000-4-2) on serial signals
-
Operating System SupportWindows (WHQL certified drivers)
-
Form FactorLow Profile (includes low-profile bracket)
-
ColorBlack
-
Included AccessoriesDB44-to-4×DB9 cable, low-profile bracket, mounting screws
-
Typical UseAdd multiple powered RS-232 ports to desktop/workstation PCs
-
CertificationsWindows WHQL
-
ManufacturerDeLOCK
-
MaterialPCB (FR4), metal bracket, plastic connectors
-
Dimensions (card)Standard PCIe single-slot low-profile card (full dimensions vary by PCB)
-
Package ContentsPCIe card, breakout cable, low-profile bracket, screws
