OSRAM QUICKTRONIC PROFESSIONAL 5 QTP5 2x49/220-240 is an OSRAM electronic ballast (EVG) designed for two 49 W fluorescent/T5 (LL 16 mm) lamps. EAN/MPN: 4008321329431, SKU: 21307229. Supply voltage 220–240 V (operating range 198–264 V), mains frequency 50/60 Hz. High-frequency operation (40–50 kHz)...
More

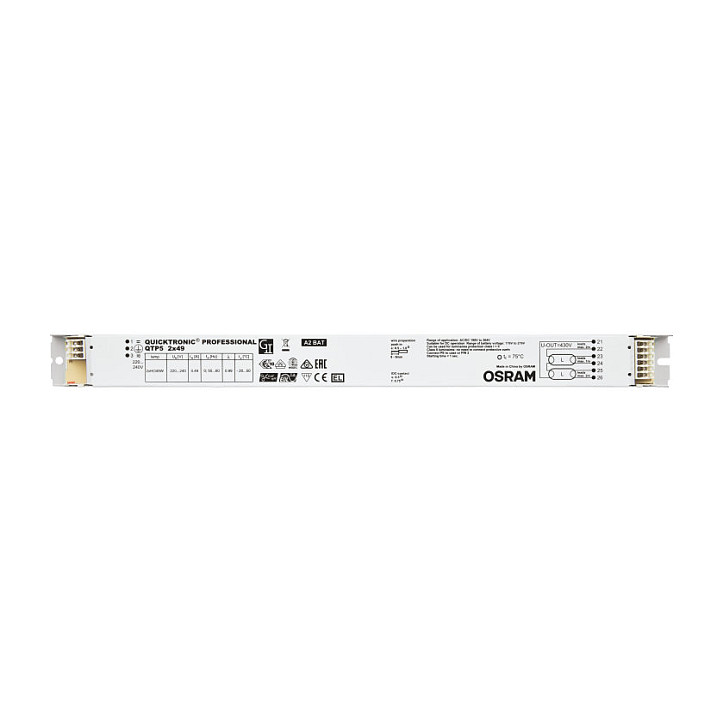

Osram QUICKTRONIC PROFESSIONAL 5 QTP5 2x49/220-240 Electronic Ballast (EVG), White
Product Code: 1173703252
Available in 4 - 6 days
60,33 €
or
1,88€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 181 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
OSRAM QUICKTRONIC PROFESSIONAL 5 QTP5 2x49/220-240 is an OSRAM electronic ballast (EVG) designed for two 49 W fluorescent/T5 (LL 16 mm) lamps. EAN/MPN: 4008321329431, SKU: 21307229. Supply voltage 220–240 V (operating range 198–264 V), mains frequency 50/60 Hz. High-frequency operation (40–50 kHz) with optimal filament preheating for flicker-free ignition and warm restart behavior (suitable for motion sensors). Non-dimmable. Automatic re-ignition after lamp replacement and protective shutdown on lamp fault / end-of-life. Compliance with EN 61347-2-3 and EN 60929. Typical lifetime up to 100,000 h (T_c = 65 °C, ≤10% failures). Physical size approx. 360 x 30 x 21 mm, mounting hole spacing 350 mm, weight ~240 g. Operating temperature -20 to +50 °C. White housing. Suitable for mains AC and many DC/emergency applications per family datasheet.
-
BrandOSRAM
-
Model / SeriesQUICKTRONIC PROFESSIONAL 5 (QTP5)
-
Model CodeQTP5 2x49/220-240
-
EAN / MPN4008321329431
-
SKU21307229
-
Product TypeElectronic ballast / electronic control gear (EVG)
-
ColorWhite
-
Input Supply Voltage220–240 V
-
Mains Voltage Range198–264 V
-
Mains Frequency50 Hz / 60 Hz
-
Operating Frequency40–50 kHz
-
Lamps SupportedFluorescent lamps (T5 / LL 16 mm), 2 lamps per unit
-
Lamp Wattage2 x 49 W
-
Start MethodOptimal filament preheating (warm start)
-
Dimmablenon-dimmable
-
Automatic RestartYes (automatic re-ignition after lamp replacement)
-
Protective ShutdownYes (lamp fault and end-of-life safety shutdown)
-
Standards / SafetyEN 61347-2-3; EN 60929
-
LifetimeUp to 100,000 h (T_c = 65 °C, ≤10% failures) according to family datasheet
-
Mounting Hole Spacing350 mm
-
Dimensions (L×W×H)360.0 mm × 30.0 mm × 21.0 mm
-
Weight240 g
-
Operating Temperature Range-20 °C to +50 °C
-
DC OperationMany family variants suitable for DC / emergency applications (see datasheet)
-
ApplicationsProfessional lighting fittings, sensor/motion applications, retrofit ballasts
-
Housing MaterialMetal housing (typical for QTP5 family)
-
Efficiency / TechnologyHigh-frequency electronic ballast with energy-saving cutoff technology
Ratings
Description
OSRAM QUICKTRONIC PROFESSIONAL 5 QTP5 2x49/220-240 is an OSRAM electronic ballast (EVG) designed for two 49 W fluorescent/T5 (LL 16 mm) lamps. EAN/MPN: 4008321329431, SKU: 21307229. Supply voltage 220–240 V (operating range 198–264 V), mains frequency 50/60 Hz. High-frequency operation (40–50 kHz) with optimal filament preheating for flicker-free ignition and warm restart behavior (suitable for motion sensors). Non-dimmable. Automatic re-ignition after lamp replacement and protective shutdown on lamp fault / end-of-life. Compliance with EN 61347-2-3 and EN 60929. Typical lifetime up to 100,000 h (T_c = 65 °C, ≤10% failures). Physical size approx. 360 x 30 x 21 mm, mounting hole spacing 350 mm, weight ~240 g. Operating temperature -20 to +50 °C. White housing. Suitable for mains AC and many DC/emergency applications per family datasheet.
Technical Specifications
-
BrandOSRAM
-
Model / SeriesQUICKTRONIC PROFESSIONAL 5 (QTP5)
-
Model CodeQTP5 2x49/220-240
-
EAN / MPN4008321329431
-
SKU21307229
-
Product TypeElectronic ballast / electronic control gear (EVG)
-
ColorWhite
-
Input Supply Voltage220–240 V
-
Mains Voltage Range198–264 V
-
Mains Frequency50 Hz / 60 Hz
-
Operating Frequency40–50 kHz
-
Lamps SupportedFluorescent lamps (T5 / LL 16 mm), 2 lamps per unit
-
Lamp Wattage2 x 49 W
-
Start MethodOptimal filament preheating (warm start)
-
Dimmablenon-dimmable
-
Automatic RestartYes (automatic re-ignition after lamp replacement)
-
Protective ShutdownYes (lamp fault and end-of-life safety shutdown)
-
Standards / SafetyEN 61347-2-3; EN 60929
-
LifetimeUp to 100,000 h (T_c = 65 °C, ≤10% failures) according to family datasheet
-
Mounting Hole Spacing350 mm
-
Dimensions (L×W×H)360.0 mm × 30.0 mm × 21.0 mm
-
Weight240 g
-
Operating Temperature Range-20 °C to +50 °C
-
DC OperationMany family variants suitable for DC / emergency applications (see datasheet)
-
ApplicationsProfessional lighting fittings, sensor/motion applications, retrofit ballasts
-
Housing MaterialMetal housing (typical for QTP5 family)
-
Efficiency / TechnologyHigh-frequency electronic ballast with energy-saving cutoff technology
