Orno OR-WE-531 is a three-phase electronic energy meter for electrical panels, intended for direct connection to 3x230V or 400V AC systems at 50 Hz. It measures active energy and provides pulse output (1000 imp/kWh), an LCD display (6+2 digits) and LED pulse indicators for each of the three phases....
More

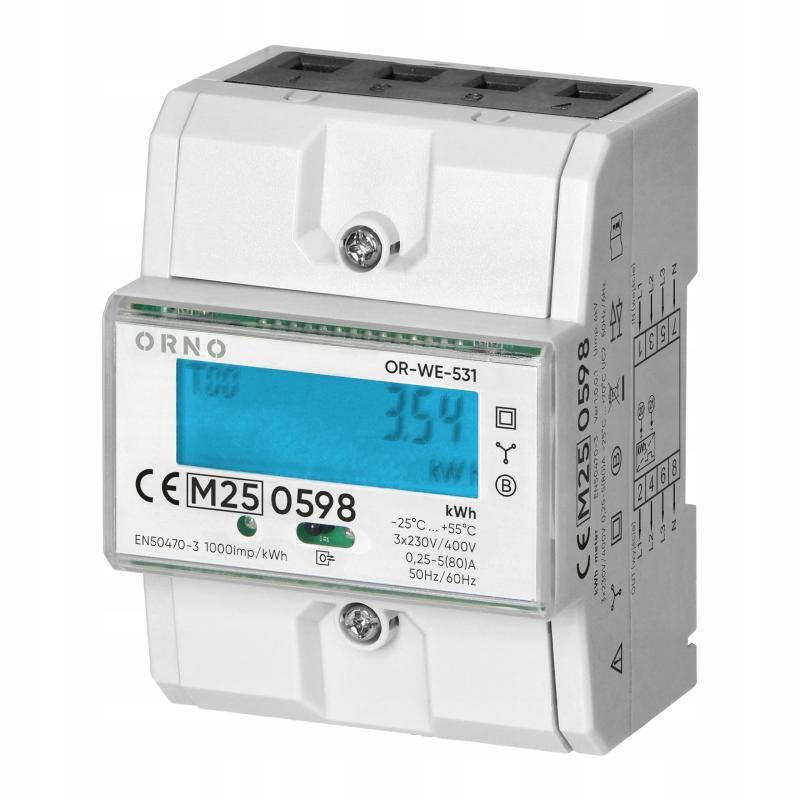

Orno OR-WE-531 Three-Phase DIN-Rail Energy Meter (3x230/400V, 50Hz)
Product Code: 1202670612
Available in 4 - 10 days
50,94 €
or
1,59€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Orno OR-WE-531 is a three-phase electronic energy meter for electrical panels, intended for direct connection to 3x230V or 400V AC systems at 50 Hz. It measures active energy and provides pulse output (1000 imp/kWh), an LCD display (6+2 digits) and LED pulse indicators for each of the three phases. The meter features an IR communication port compliant with EN 62056-21, is DIN-rail mountable (TH-35mm), and its enclosure dimensions are 76 x 100 x 65 mm. Terminals accept conductors up to 35 mm². Certified to relevant IEC/EN standards (IEC 62056-21, EN 50470-3:2022, EN IEC 62053-21:2021, IEC 62052-11:2020, IEC 62052-31:2015) and meets MID 2014/32/EU requirements for direct-connected meters.
-
BrandOrno
-
ModelOR-WE-531
-
Product TypeThree-phase electronic energy meter for electrical panels (DIN-rail)
-
Nominal Voltage N-L (Un)230 V
-
Nominal Voltage L-L (Un)400 V
-
Frequency50 Hz
-
Nominal Current (In)5 A
-
Maximum Current (Imax)80 A
-
Minimum operational current0.25 A
-
Starting current (Ist)0.004 A
-
Alternate starting/current indicator (as listed)0.02 A
-
Pulse constant1000 imp/kWh
-
Power consumption0.55 W
-
DisplayLCD 6+2 digits
-
LED indicatorsLED per phase for pulse indication (3 phases)
-
CommunicationInfrared (IR) port, EN 62056-21 compatible
-
MountingDIN rail TH-35mm
-
Enclosure dimensions76 x 100 x 65 mm
-
Terminal conductor capacity35 mm²
-
Standards/CertificationsIEC 62056-21 (IEC1107); EN 50470-3:2022; EN IEC 62053-21:2021; IEC 62052-11:2020; IEC 62052-31:2015; compliant with MID 2014/32/EU for direct connection
Ratings
Description
Orno OR-WE-531 is a three-phase electronic energy meter for electrical panels, intended for direct connection to 3x230V or 400V AC systems at 50 Hz. It measures active energy and provides pulse output (1000 imp/kWh), an LCD display (6+2 digits) and LED pulse indicators for each of the three phases. The meter features an IR communication port compliant with EN 62056-21, is DIN-rail mountable (TH-35mm), and its enclosure dimensions are 76 x 100 x 65 mm. Terminals accept conductors up to 35 mm². Certified to relevant IEC/EN standards (IEC 62056-21, EN 50470-3:2022, EN IEC 62053-21:2021, IEC 62052-11:2020, IEC 62052-31:2015) and meets MID 2014/32/EU requirements for direct-connected meters.
Technical Specifications
-
BrandOrno
-
ModelOR-WE-531
-
Product TypeThree-phase electronic energy meter for electrical panels (DIN-rail)
-
Nominal Voltage N-L (Un)230 V
-
Nominal Voltage L-L (Un)400 V
-
Frequency50 Hz
-
Nominal Current (In)5 A
-
Maximum Current (Imax)80 A
-
Minimum operational current0.25 A
-
Starting current (Ist)0.004 A
-
Alternate starting/current indicator (as listed)0.02 A
-
Pulse constant1000 imp/kWh
-
Power consumption0.55 W
-
DisplayLCD 6+2 digits
-
LED indicatorsLED per phase for pulse indication (3 phases)
-
CommunicationInfrared (IR) port, EN 62056-21 compatible
-
MountingDIN rail TH-35mm
-
Enclosure dimensions76 x 100 x 65 mm
-
Terminal conductor capacity35 mm²
-
Standards/CertificationsIEC 62056-21 (IEC1107); EN 50470-3:2022; EN IEC 62053-21:2021; IEC 62052-11:2020; IEC 62052-31:2015; compliant with MID 2014/32/EU for direct connection
