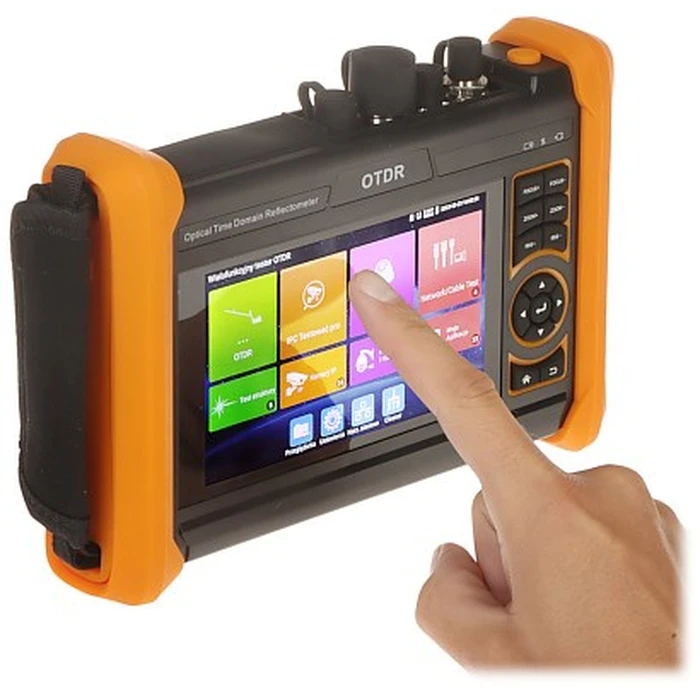

Optical Reflectometer (OTDR) with CCTV Tester CS-R3-50H DELTA TESTER

Description

Technical Specifications

• Brand
  DELTA-OPTI (DELTA TESTER)
• Model (MPN)
  CS-R3-50H
• EAN
  5902887084621
• Product Type
  Combined OTDR (Optical Time Domain Reflectometer) and CCTV tester
• OTDR Wavelengths
  1310 nm, 1550 nm
• OTDR Dynamic Range
  ~28 dB (1310 nm), ~26 dB (1550 nm)
• Measurement Range
  Up to ≤105 km (some sources list up to 200 km)
• Measurement Error
  ± (1 m + 5×10⁻⁵ × distance + sampling interval)
• Measurement Time Options
  5 s, 10 s, 15 s, 30 s, 1 min, 2 min, 3 min
• Optical Power Meter Wavelengths
  850, 1300, 1310, 1490, 1550, 1625 nm
• Optical Power Meter Range
  -70 to +10 dBm
• Connectors (Optical)
  ST, SC
• Visual Fault Locator (VFL)
  650 nm red laser, 10 mW, VFL range up to ~8 km
• Supported Camera Types
  AHD, HD-CVI, HD-TVI, IP cameras
• PoE Support
  Yes
• LAN Ports
  2 (for PoE collaboration/testing)
• Serial Interface
  RS-485 (supports PTZ control)
• Supported PTZ Protocols
  >30 (Pelco-D, Pelco-P, YAAN, YAAN-O, SAMSUNG, PANASONIC, Lilin-FAST, MOLYNX, MINKING etc.)
• Audio Interfaces
  1× input (mini-jack), 1× output (mini-jack)
• Video Generator
  Built-in video signal generator for analog formats
• Display
  5.4" Retina capacitive touchscreen, 1920×1152 px
• Battery Life
  Up to ~10 hours
• Weight
  ~0.87 kg (870 g)
• Dimensions
  212 × 148 × 49 mm
• Operating Temperature
  -10°C to +50°C
• Operating Humidity
  30% to 90% RH
• Languages
  Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian
• Software/Features
  EZView function/software
• Warranty
  2 years
• Accessories (typical)
  Optical adapters, test leads, power adapter, USB cable, user manual (varies by retailer)
• Intended Use
  Fiber optic network testing and CCTV camera installation/troubleshooting
