Red illuminated ON-OFF switch with built-in indicator lamp, model IRS-101-8C/D (SKU DM-3904, EAN 5900804016656). Rated for use at 12 V with a rated current of 20 A. Key electrical specifications: contact resistance up to 35 mΩ, insulation resistance ≥100 MΩ at 500 VDC, dielectric strength 1500 VAC...
More

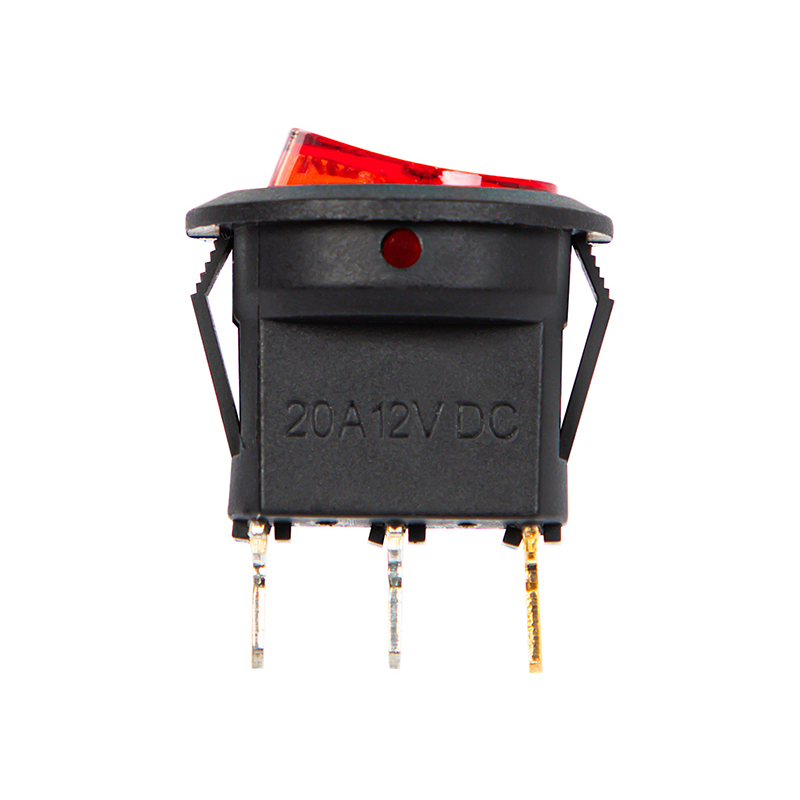

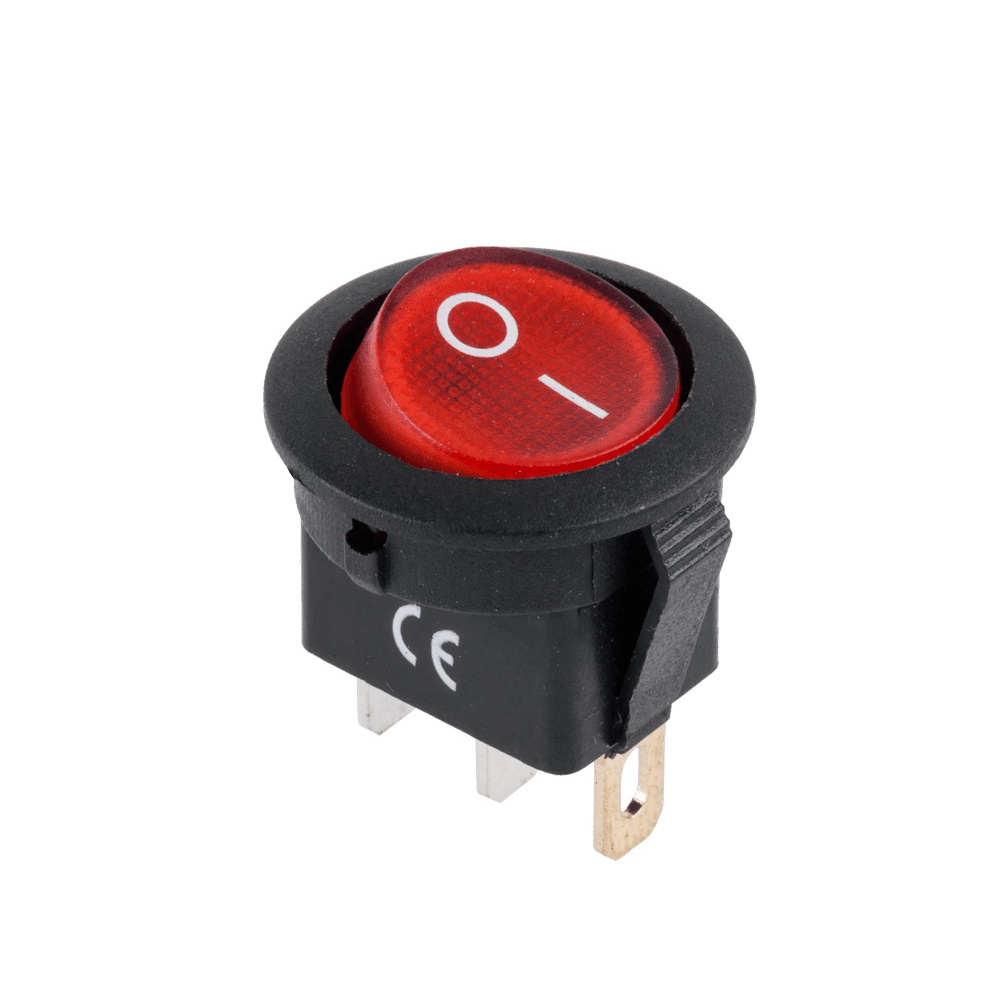

ON-OFF Switch with Indicator Lamp 12V 20A Red IRS-101-8C/D (SKU: DM-3904)
Product Code: 1143722414
Available in 4 - 6 days
1,78 €
With the purchase of this product you earn 6 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Red illuminated ON-OFF switch with built-in indicator lamp, model IRS-101-8C/D (SKU DM-3904, EAN 5900804016656). Rated for use at 12 V with a rated current of 20 A. Key electrical specifications: contact resistance up to 35 mΩ, insulation resistance ≥100 MΩ at 500 VDC, dielectric strength 1500 VAC for 1 minute. Operating temperature range -25 °C to +85 °C. Mechanical life approximately 10,000 cycles. Contacts: 3. Positions: 2 (ON-OFF). Housing/type: round, color: red. Illuminated: Yes. Manufacturer not specified.
-
Rated Current20 A (12 V)
-
Contact Resistance≤35 mΩ (max)
-
Insulation Resistance≥100 MΩ at 500 VDC
-
Dielectric Strength1500 VAC for 1 minute
-
Operating Temperature Range-25 °C to +85 °C
-
Mechanical Life10000 cycles
-
Number of Contacts3
-
Number of Positions2 (ON-OFF)
-
Color / TypeRed / Round
-
IlluminatedYes
-
ModelIRS-101-8C/D
-
SKUDM-3904
-
EAN5900804016656
-
MPNDM-3904
Ratings
Description
Red illuminated ON-OFF switch with built-in indicator lamp, model IRS-101-8C/D (SKU DM-3904, EAN 5900804016656). Rated for use at 12 V with a rated current of 20 A. Key electrical specifications: contact resistance up to 35 mΩ, insulation resistance ≥100 MΩ at 500 VDC, dielectric strength 1500 VAC for 1 minute. Operating temperature range -25 °C to +85 °C. Mechanical life approximately 10,000 cycles. Contacts: 3. Positions: 2 (ON-OFF). Housing/type: round, color: red. Illuminated: Yes. Manufacturer not specified.
Technical Specifications
-
Rated Current20 A (12 V)
-
Contact Resistance≤35 mΩ (max)
-
Insulation Resistance≥100 MΩ at 500 VDC
-
Dielectric Strength1500 VAC for 1 minute
-
Operating Temperature Range-25 °C to +85 °C
-
Mechanical Life10000 cycles
-
Number of Contacts3
-
Number of Positions2 (ON-OFF)
-
Color / TypeRed / Round
-
IlluminatedYes
-
ModelIRS-101-8C/D
-
SKUDM-3904
-
EAN5900804016656
-
MPNDM-3904
