Handheld NOYAFA NF-916 optical fiber cable tester and power meter. Measures optical power from 850 nm to 1650 nm (850/980/1270/1300/1310/1490/1550/1577/1625/1650 nm) with range -60 to 8 dBm. Color display, selectable units (dBm, mW, µW, nW), REF mode and frequency detection (270 Hz / 1 kHz / 2...
More

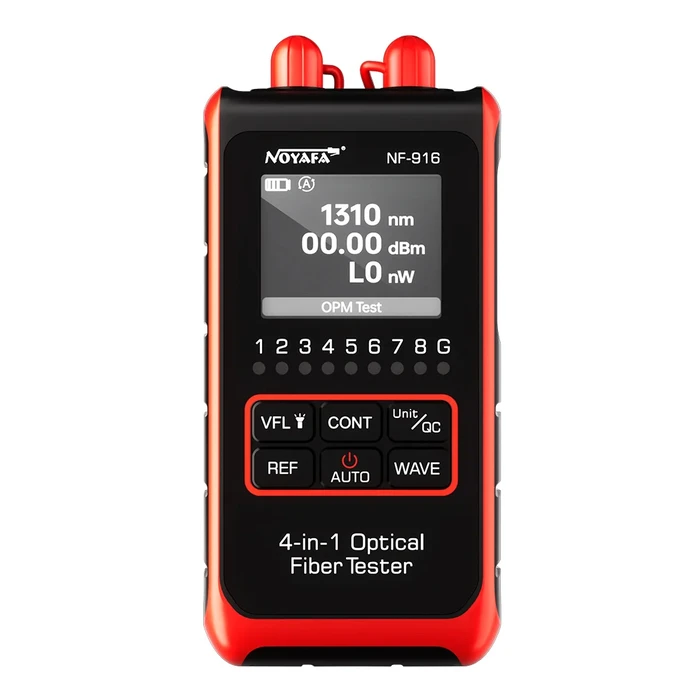

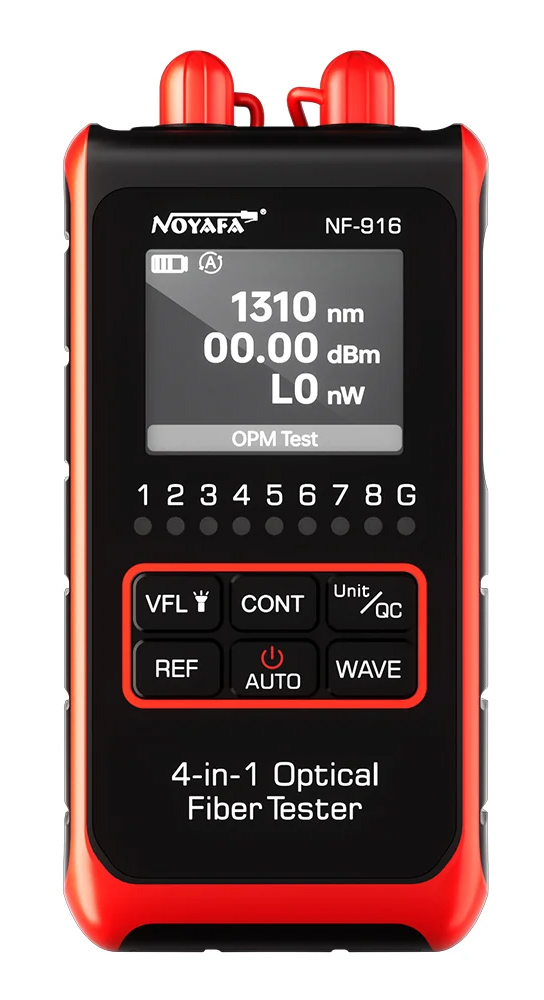

NOYAFA NF-916 Optical Fiber Cable Tester
Product Code: 1138740303
Available in 1 - 3 days
41,42 €
or
1,29€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 125 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Handheld NOYAFA NF-916 optical fiber cable tester and power meter. Measures optical power from 850 nm to 1650 nm (850/980/1270/1300/1310/1490/1550/1577/1625/1650 nm) with range -60 to 8 dBm. Color display, selectable units (dBm, mW, µW, nW), REF mode and frequency detection (270 Hz / 1 kHz / 2 kHz). Includes VFL (visual fault locator) with steady/slow flash/fast flash modes, continuity test for RJ45, compatibility with FC/SC/ST connectors, QC test, lamp (LED flashlight), auto-off option, low battery warning. Powered by a 3.7V 700mAh rechargeable lithium battery, charged via USB-C. Compact size 128 x 61 x 32 mm. Brand: NOYAFA, Model: NF-916, SKU: NF-916.
-
BrandNOYAFA
-
ModelNF-916
-
TypeHandheld optical fiber cable tester and power meter
-
Power measurement range-60 to 8 dBm
-
Supported wavelengths (power meter)850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 nm
-
VFL wavelength range850–1650 nm (device supports VFL function)
-
UnitsdBm, mW, µW, nW, REF
-
Frequency detection270 Hz / 1 kHz / 2 kHz
-
Continuity testYes (including RJ45 cable continuity)
-
VFL modesSteady on / Slow flashing / Fast flashing
-
Connectors supportedFC, SC, ST
-
DisplayColor display
-
QC testYes
-
Auto-offOn/Off selectable
-
Lamp/FlashlightYes (LED)
-
Low battery warningYes
-
Power supply3.7V rechargeable lithium battery, 700mAh
-
Charging interfaceUSB-C
-
Size (device)128 x 61 x 32 mm
-
Weight (approx.)150 g (device)
-
Package weight (approx.)300 g
-
Additional featuresMemory function, multi-unit readouts, ergonomic handheld design
-
Included indicatorsPower, measurement unit, VFL status, frequency tone
Ratings
Description
Handheld NOYAFA NF-916 optical fiber cable tester and power meter. Measures optical power from 850 nm to 1650 nm (850/980/1270/1300/1310/1490/1550/1577/1625/1650 nm) with range -60 to 8 dBm. Color display, selectable units (dBm, mW, µW, nW), REF mode and frequency detection (270 Hz / 1 kHz / 2 kHz). Includes VFL (visual fault locator) with steady/slow flash/fast flash modes, continuity test for RJ45, compatibility with FC/SC/ST connectors, QC test, lamp (LED flashlight), auto-off option, low battery warning. Powered by a 3.7V 700mAh rechargeable lithium battery, charged via USB-C. Compact size 128 x 61 x 32 mm. Brand: NOYAFA, Model: NF-916, SKU: NF-916.
Technical Specifications
-
BrandNOYAFA
-
ModelNF-916
-
TypeHandheld optical fiber cable tester and power meter
-
Power measurement range-60 to 8 dBm
-
Supported wavelengths (power meter)850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 nm
-
VFL wavelength range850–1650 nm (device supports VFL function)
-
UnitsdBm, mW, µW, nW, REF
-
Frequency detection270 Hz / 1 kHz / 2 kHz
-
Continuity testYes (including RJ45 cable continuity)
-
VFL modesSteady on / Slow flashing / Fast flashing
-
Connectors supportedFC, SC, ST
-
DisplayColor display
-
QC testYes
-
Auto-offOn/Off selectable
-
Lamp/FlashlightYes (LED)
-
Low battery warningYes
-
Power supply3.7V rechargeable lithium battery, 700mAh
-
Charging interfaceUSB-C
-
Size (device)128 x 61 x 32 mm
-
Weight (approx.)150 g (device)
-
Package weight (approx.)300 g
-
Additional featuresMemory function, multi-unit readouts, ergonomic handheld design
-
Included indicatorsPower, measurement unit, VFL status, frequency tone
