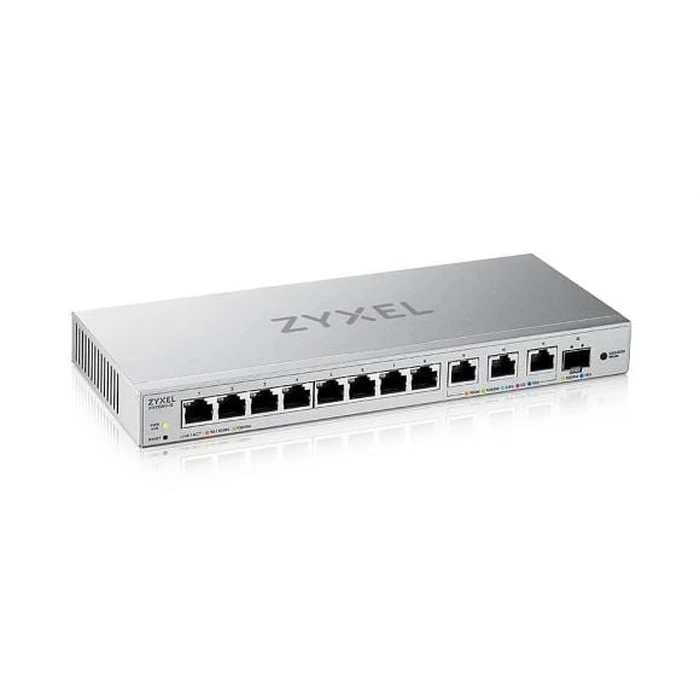

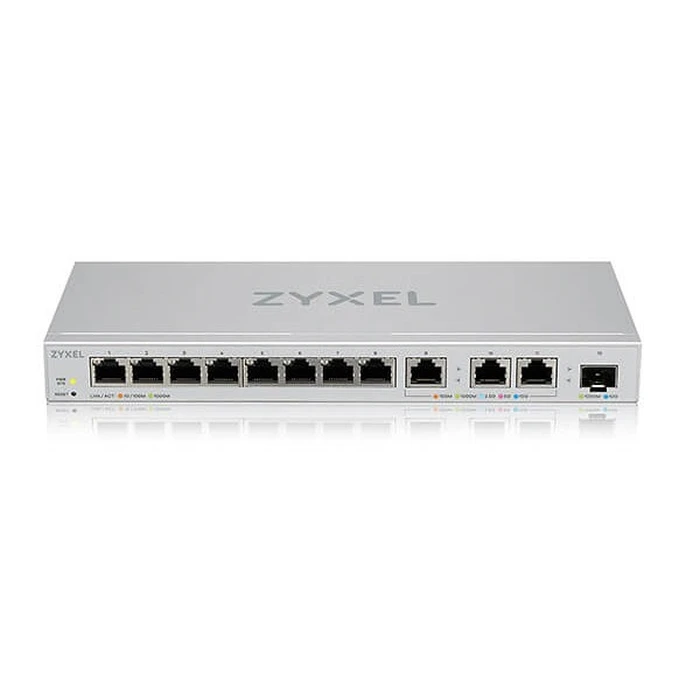

Network Switch Zyxel XGS1250-12 12-Port Smart Managed MultiGig

Technical Specifications

• Basic switching RJ-45 Ethernet ports quantity
  11
• Basic switching RJ-45 Ethernet ports type
  10G Ethernet (100/1000/10000)
• SFP+ module slots quantity
  1
• Power connector
  DC-in jack
• Width
  250 mm
• Depth
  104 mm
• Height
  27 mm
• Weight
  783 g
• Power source
  AC
• Power supply included
  Yes
• AC input voltage
  100 - 240 V
• AC input frequency
  50/60 Hz
• Power consumption (max)
  20.06 W
• Operating temperature (T-T)
  0 - 40 °C
• Storage temperature (T-T)
  -40 - 70 °C
• Operating relative humidity (H-H)
  10 - 90%
• Storage relative humidity (H-H)
  10 - 90%
• Networking standards
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• 10G support
  Yes
• Port mirroring
  Yes
• Full duplex
  Yes
• Flow control support
  Yes
• Link aggregation
  Yes
• Broadcast storm control
  Yes
• Auto MDI/MDI-X
  Yes
• Ethernet LAN data rates
  10,100,1000,2500,10000 Mbit/s
• VLAN support
  Yes
• MAC address table
  16000 entries
• Switching capacity
  96 Gbit/s
• Forwarding rate
  71.42 Mpps
• Jumbo frames support
  Yes
• Jumbo frames
  12000
• DHCP features
  DHCP client
• IGMP snooping
  Yes
• Switch type
  Managed
• Switch layer
  L2
• Quality of Service (QoS) support
  Yes
• Web-based management
  Yes
• MIB support
  Y
• Rack mounting
  No
• Stackable
  No
• Product colour
  Grey
• Housing material
  Aluminium, Iron
• Reset button
  Yes
• LED indicators
  Yes
• Redundant fans support
  Yes
• Wall mountable
  Yes
• DIN rail mounting
  No
• Number of fans
  1 fan(s)
• Power over Ethernet (PoE)
  No
• Harmonized System (HS) code
  85176990
• Multicast support
  Yes
