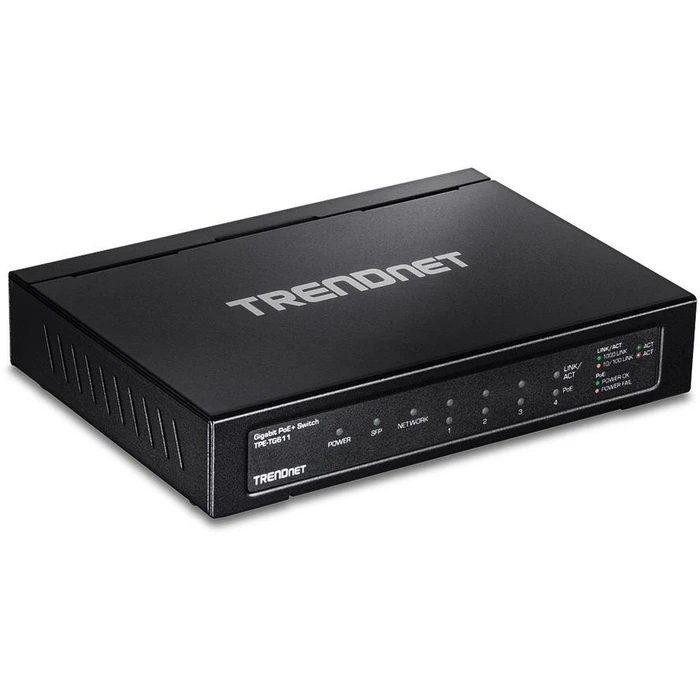

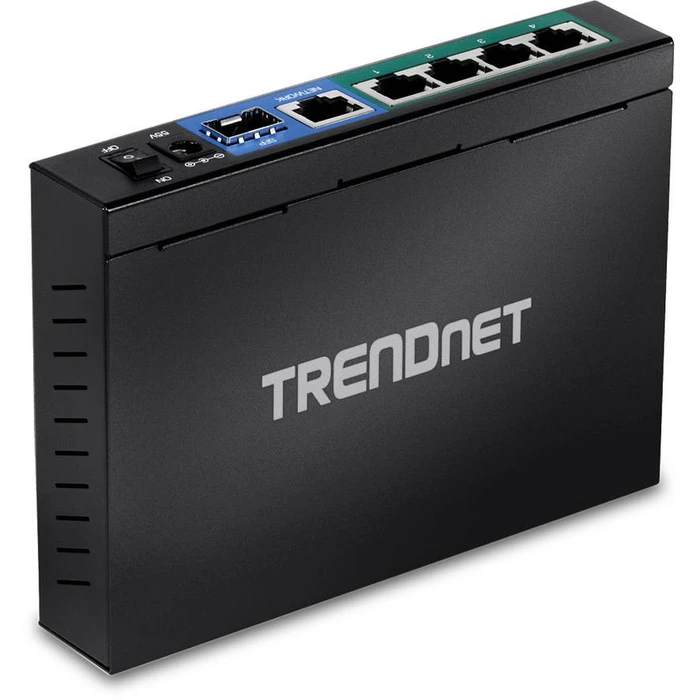

Network Switch TRENDnet 6 Port Gbit PoE+ 65W Metall

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  5
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Number of fiber connections
  1
• Optical cable connector
  SFP
• Network standard
  IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• 10G support
  no
• Full duplex
  yes
• Ethernet cable cabling technology
  100BASE-FX, 1000BASE-FX
• MAC address table
  2000 entries
• Routing / switching capacity
  12 Gbit / s
• Transfer rate
  8298 Mpps
• Jumbo frames support
  yes
• Jumbo frames
  9
• Certification
  CE, FCC
• Product color
  black
• Housing material
  metal
• LED indicators
  yes
• Wall mounting
  yes
• Quality of Service (QoS) support
  yes
• Mean Time Between Failures (MTBF)
  1401356 h
• Supplied cables
  AC
• User Guide
  yes
• width
  193 mm
• depth
  84 mm
• height
  26 mm
• Weight
  356 g
• Operating temperature range
  0 - 40 ° C
• Humidity in operation
  0 - 90%
• Power over Ethernet (PoE)
  yes
• Power over Ethernet (PoE) type supported
  PoE +
• Number of Power over Ethernet plus (PoE +) connections
  4th
• Power over Ethernet (PoE) power per connection
  30 W
• Total power over Ethernet (PoE)
  65 W
• Power supply included
  yes
• AC input voltage
  100-240V
• AC input frequency
  50/60 Hz
• DC input voltage
  55 V
• Power consumption (max.)
  71.5 W
