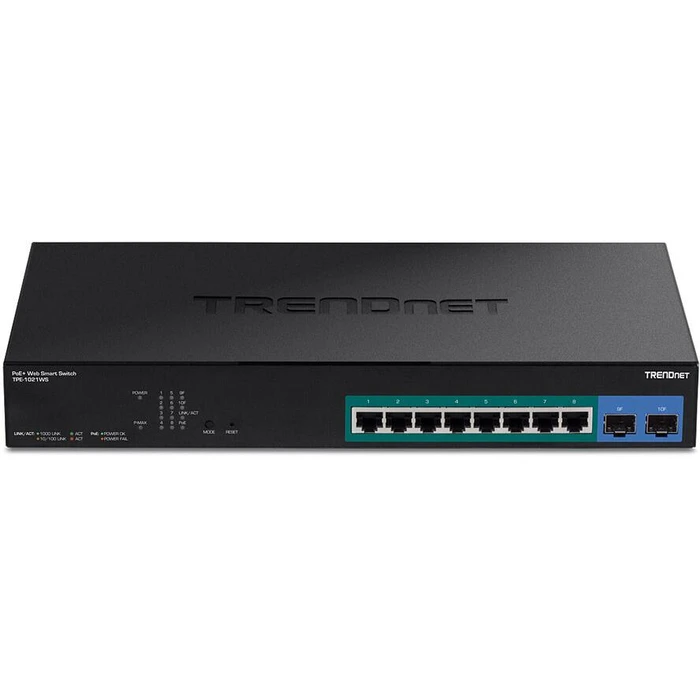

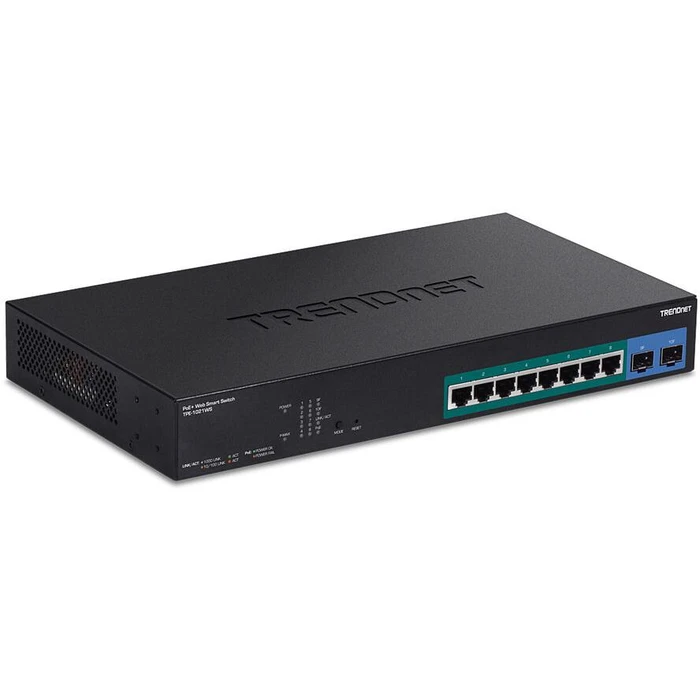

Network Switch Trendnet 10-Port Gigabit Web Smart PoE+

Technical Specifications

• device type
  Switch - 10 ports - Smart
• case type
  Desktop, rack mountable 1U
• subtype
  gigabit ethernet
• ports
  8x 10/100/1000 (PoE+) + 2x 10/100/1000/SFP
• Power Over Ethernet (PoE)
  PoE+
• PoE budget
  130W
• perfomance
  Switching capacity: 20 Gbit/s ¦ Forwarding rate: 14.9 Mpps
• MAC address table size
  8000 entries
• Jumbo frame support
  10,000 bytes
• remote management protocol
  SNMP 1, SNMP 2, RMON 1, Telnet, SNMP 3, HTTP, HTTPS, SSH-2
• encryption algorithm
  SSL3.0, SSL2.0
• performance characteristics
  Layer 3 switching, DHCP support, IGMP snooping, IPv6 support, Quality of Service (QoS), MLD snooping, fanless, LACP support, LLDP support, static routing, IGMP support
• Product Certifications
  IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
• R.A.M.
  4.1MB
• interfaces
  8 x 10/100/1000 Base-T RJ-45 PoE+ - 30W ¦ 2 x LAN SFP
• power supply device
  Internal power supply
• Required mains voltage
  AC 100-240V (50/60Hz)
• power consumption during operation
  152.3 watts
• rack mount kit
  Supplied
• MTBF
  590.929 hours
• Product Certifications
  UL, FCC
• Broad
  33 cm
• depth
  18 cm
• Height
  4.4 cm
• weight
  1.76kg
• services and support
  Limited Warranty - 3 years
• Min operating temperature
  -5°C
• Max operating temperature
  50?
• Permissible humidity during operation
  0 - 90% (non-condensing)
