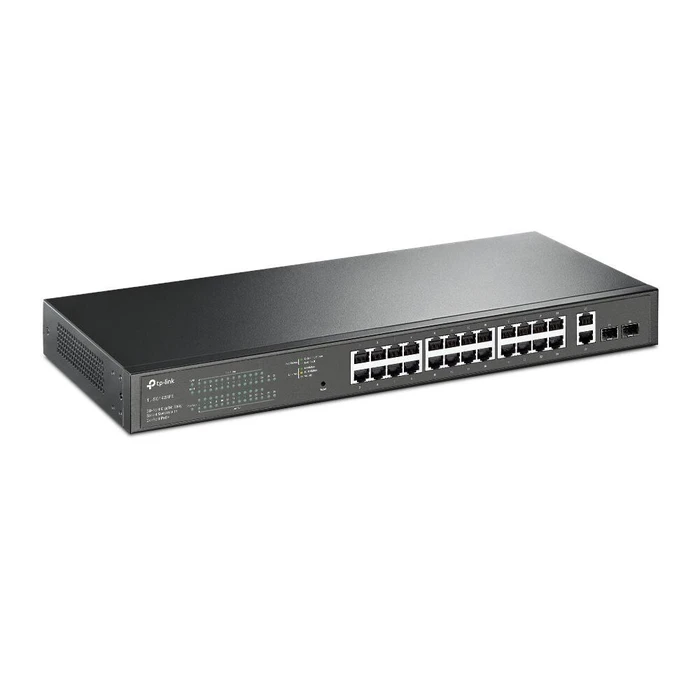

Network Switch TP-LINK TL-SG1428PE Managed (10/100/1000) Black 1U (PoE)

Technical Specifications

• Number of fans
  2 fan(s)
• Form factor
  1U
• Product colour
  Black
• Rack mounting
  Y
• Power supply included
  Y
• AC input voltage
  100 - 240 V
• AC input frequency
  50/60 Hz
• Power consumption (max)
  304.7 W
• IGMP snooping
  Y
• Operating temperature (T-T)
  0 - 50 Β°C
• Storage relative humidity (H-H)
  5 - 90%
• Storage temperature (T-T)
  -40 - 70 Β°C
• Operating relative humidity (H-H)
  10 - 90%
• Switch type
  Managed
• Web-based management
  Y
• Quality of Service (QoS) support
  Y
• Width
  440 mm
• Height
  44 mm
• Depth
  220 mm
• Link aggregation
  Y
• Cable types supported
  Cat6
• Rate limiting
  Y
• Virtual LAN features
  Port-based VLAN
• Broadcast storm control
  Y
• Number of VLANs
  32
• 10G support
  N
• Port mirroring
  Y
• Auto-negotiation
  Y
• Copper ethernet cabling technology
  10BASE-T
• VLAN support
  Y
• Auto MDI/MDI-X
  Y
• Networking standards
  IEEE 802.3u
• Rack mount kit
  Y
• User guide
  Y
• Cables included
  AC
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity
  26
• SFP module slots quantity
  2
• Store-and-forward
  Y
• Jumbo frames
  9000
• Forwarding rate
  41.7 Mpps
• Switching capacity
  56 Gbit/s
• Jumbo frames support
  Y
• MAC address table
  8 entries
• Number of queues
  4
• Power over Ethernet plus (PoE+) ports quantity
  24
• Total Power over Ethernet (PoE) budget
  250 W
• Power over Ethernet (PoE)
  Y
• Fiber ethernet cabling technology
  1000BASE-X
